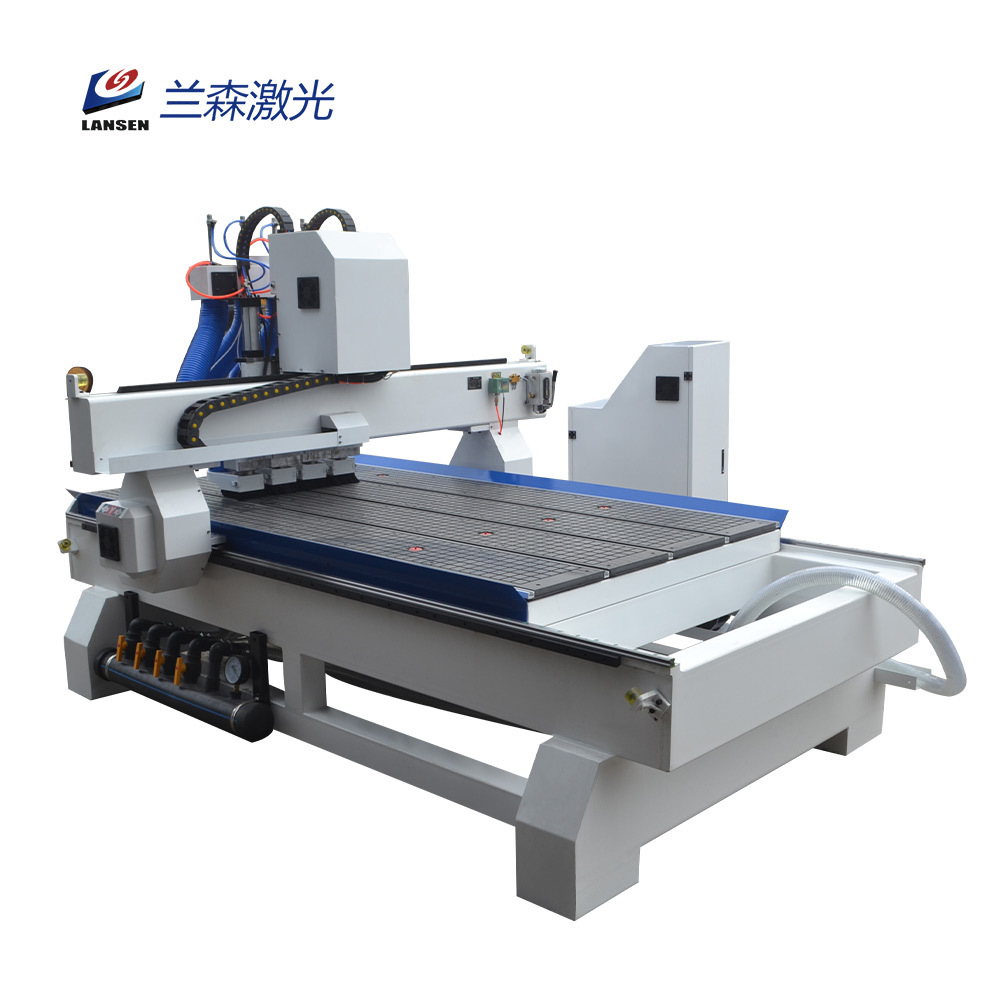

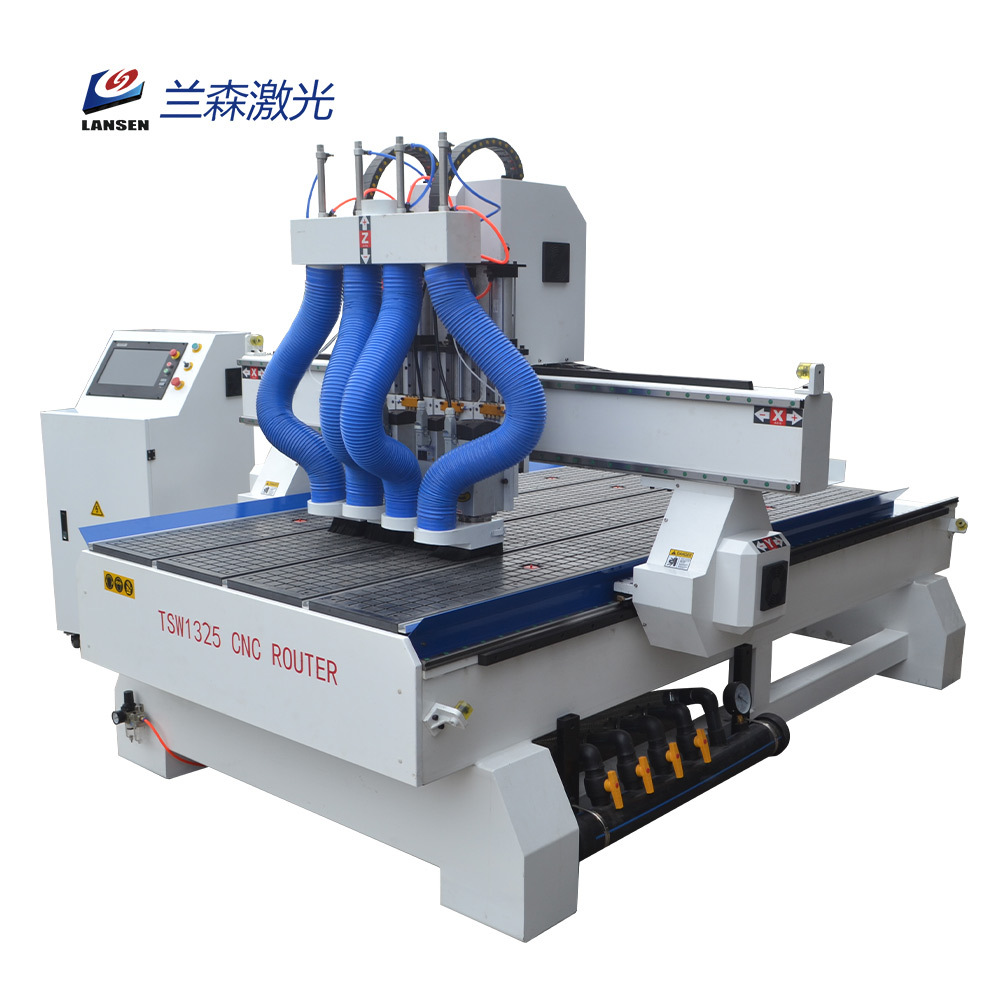

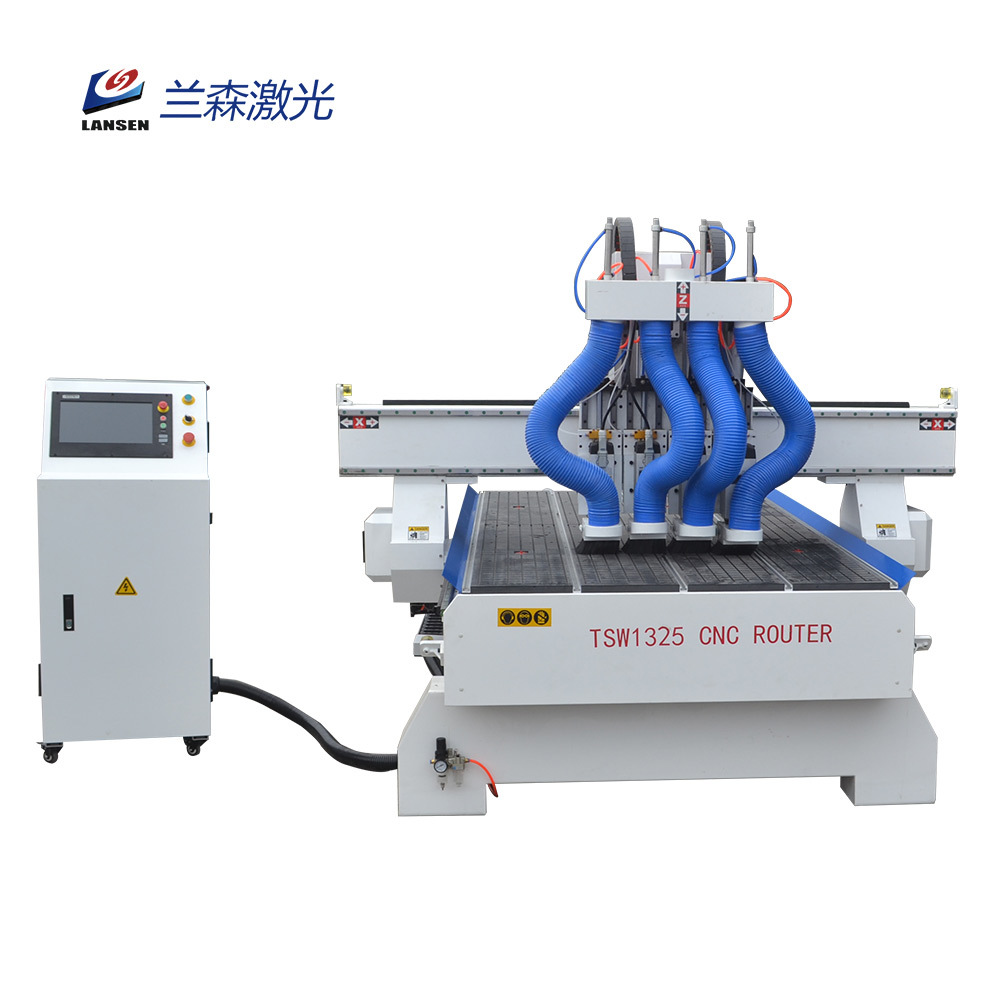

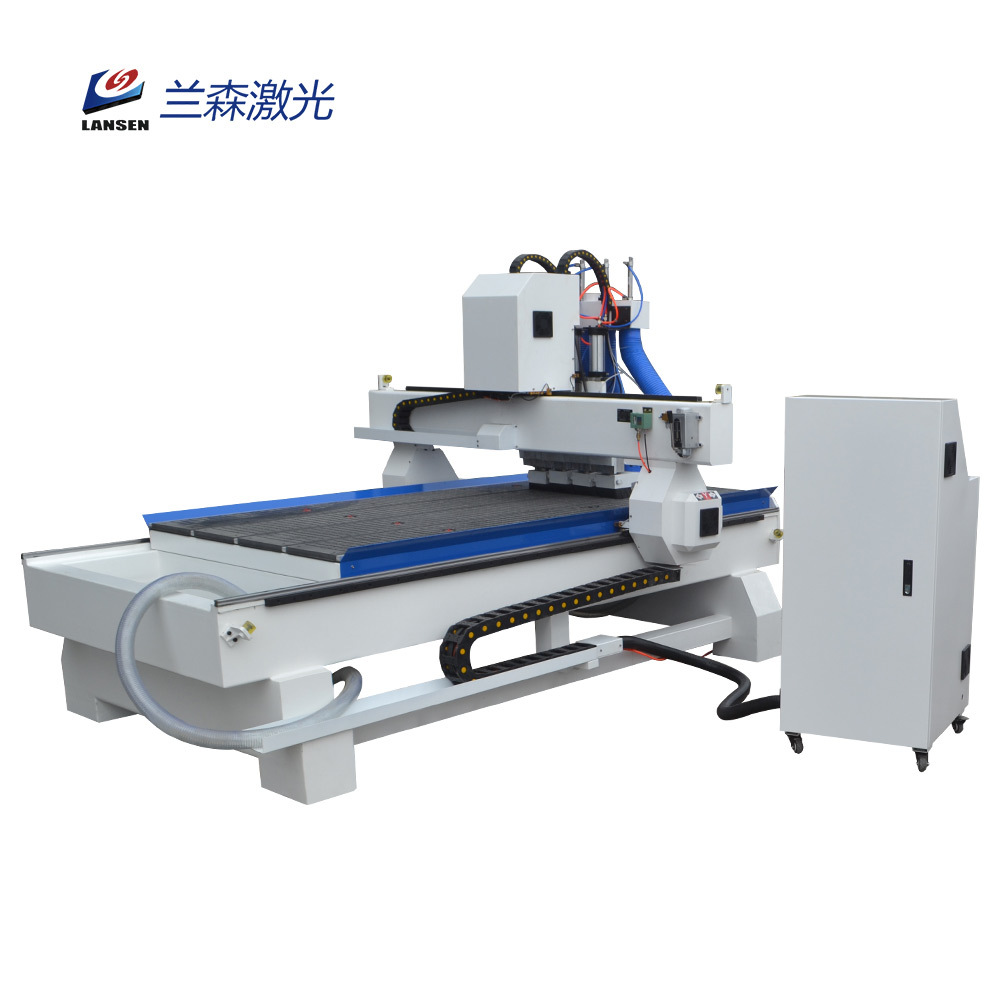

The muti-process cnc router machine has ≥2 heads,and the tools can be switched at will during the processing,while ordinary engraving machines require manual tool change.Computer or panel system control,easy to operate.
This muti-head cnc routernot only can complete all the engraving work that an ordinary engraving machine do,but also do some complex engraving groups,such as relief carving and shadow carving.In addition to processing ordinary doors,windows,and cabinets ,screens,furniture carvings,mold carvings,etc. It can also carve complex woodworking art works,which ordinary cnc machines can not do.
* Heavy duty machine bed and large steel gantry, stable and high precision
* 3.2kw spindles according your demand (other power according your required).
* Vacuum table with T-slot and 5.5kw/7.5kw vacuum pump.
* Taiwan square guide rails and Helical rack transmission
* All the axis are servo motor and driver
* Y-axis dual motor drive with reducer, provide a strong impetus to ensure stable work and high precision
* Oil lubrication system, inject oil for the machine rails, keeping machine move smoother
* Drawing software Artcam will send to you together with machine
* Tool sensor to adjust the distance from materials to cutter automatically.
* Breakpoint memory, can continue to work after power off & breaking knife
* And Omron electric limit switch on all axis, make sure machine running well.
Multi-Head CNC Router Machine Application:
1.Advertising industry:Acrylic,two-color board,PVC,ABS board, aluminum-plastic board engraving and cutting,all kinds of signs, signage,copper,fonts,all kinds of signs,trademarks and other materials.
2.Crafts industry artificial stone crafts,souvenirs on the various types of text, graphics.
3.Mold processing architectural model,physical model,bronzing mold,hich frequency mode,miao injecion mold,shoe mold,badge,embossing mold biscuit,chocolate,candy mold
4.Sealindustry Easiy engravingon horns,plastics,organic boards,wood. storage mats,etc
5.Woodworking industry:furniture decoration,musical instrument industry, wooden handicraft industry,large-area plate flat engraving,solid wood furniture,solid wood at murals,MDF paint-free doors,composite doors, cabinet doors,screen engravings etc
This kinds of CNC wood router is also called Cnc Wood Carving Machine or CNC Wood Engraving Machine in the Wood Cnc Machine industry. It is a basic woodworking engraving cutting machine with strong welding steel tube frame and a T-slot vacuum table.
This woodworking Machine is considered an entry-level machine in the woodworking machinery industry and favored by users at home and abroad. The wood router mainly performs some plane processing on the board. If you are just doing flat machining on some plates, this CNC wood router is definitely your ideal choice.
|
Spindle power |
3KW/4.5KW/6KW/9KW |
|
Rail type |
linear rails |
|
Control system |
DSP/Syntec/Ncstudio |
|
Drive type |
Stepper or Servo motor |
|
Transmit |
XY gear rack and Z ballscrew |
|
Table type |
T slot clamping |
|
Working precision |
0.05mm |
|
Power |
AC220V±10% / 50~60Hz |
|
Compatible Software |
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
|
Command code |
HPGL, G code |
