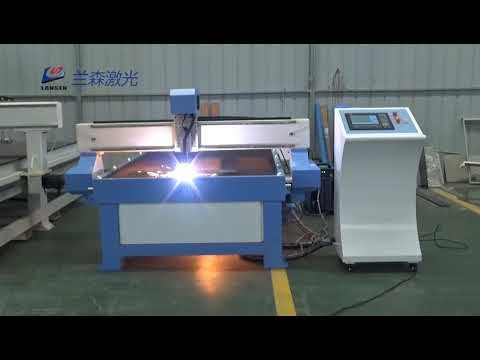

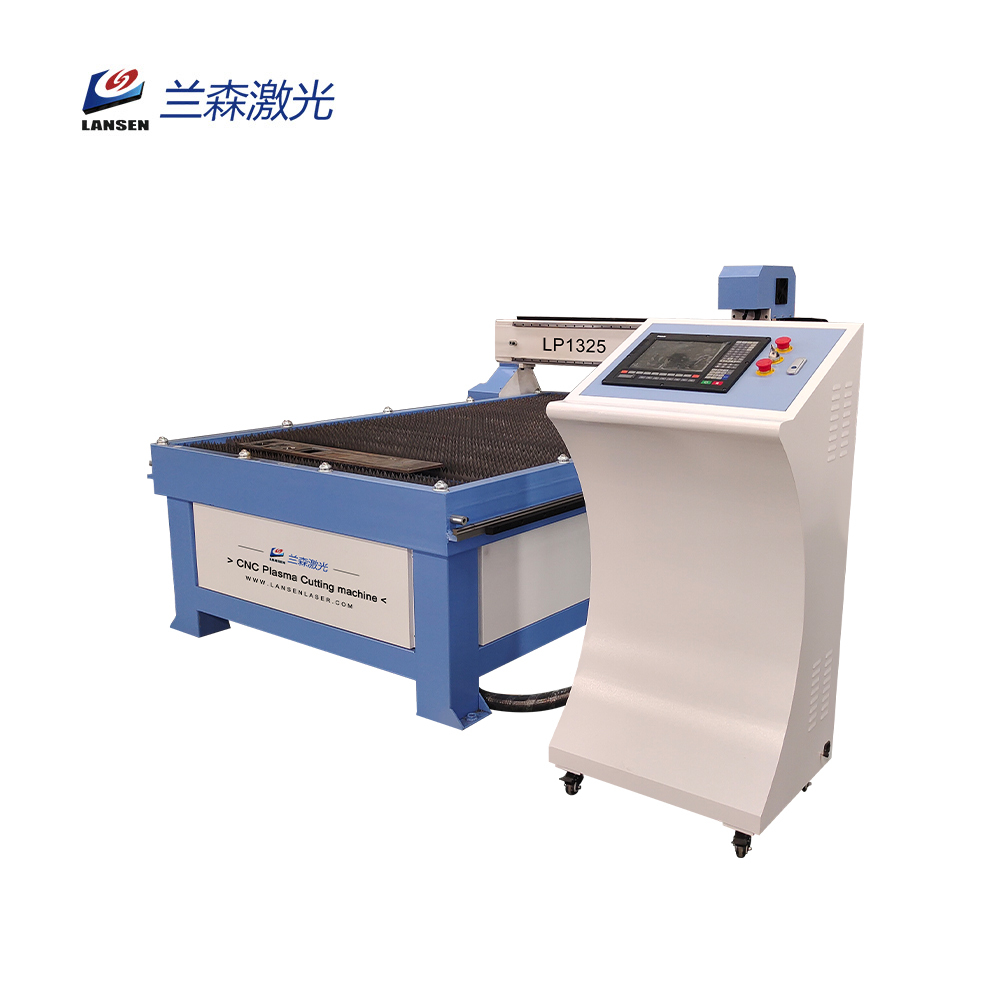

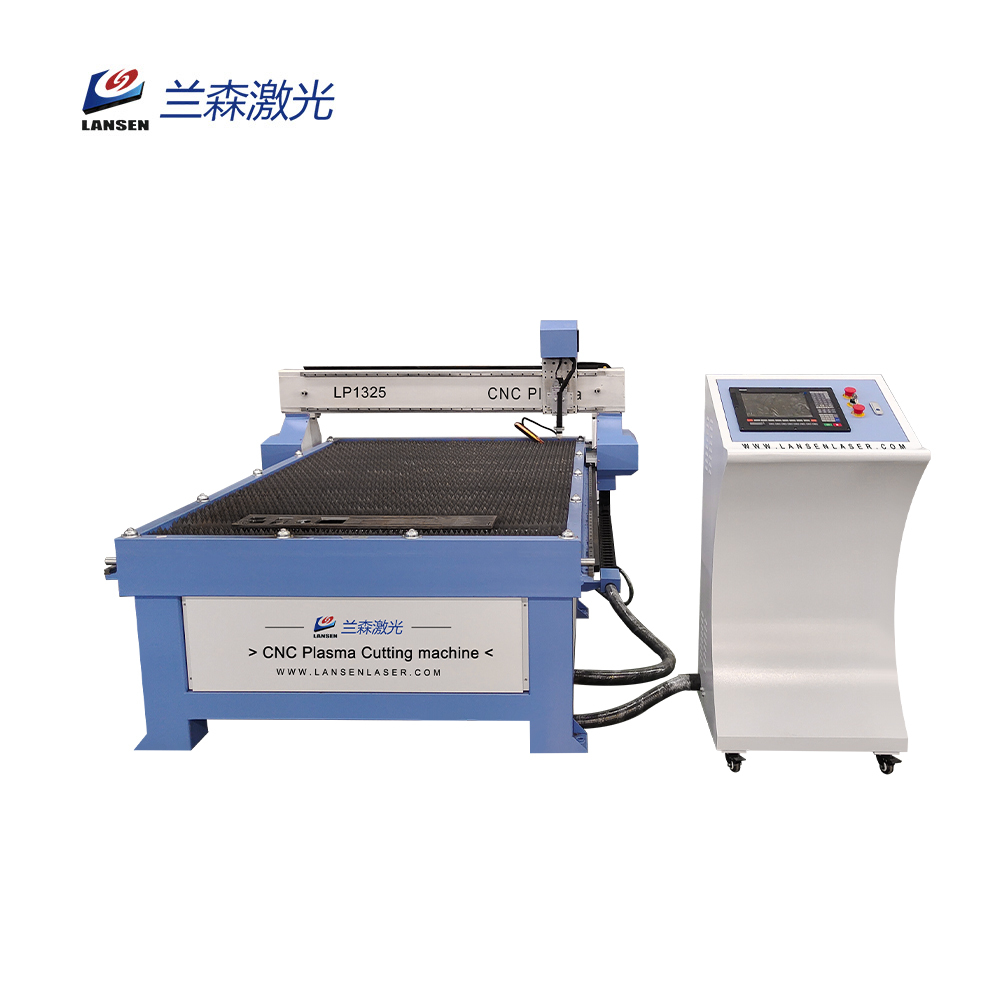

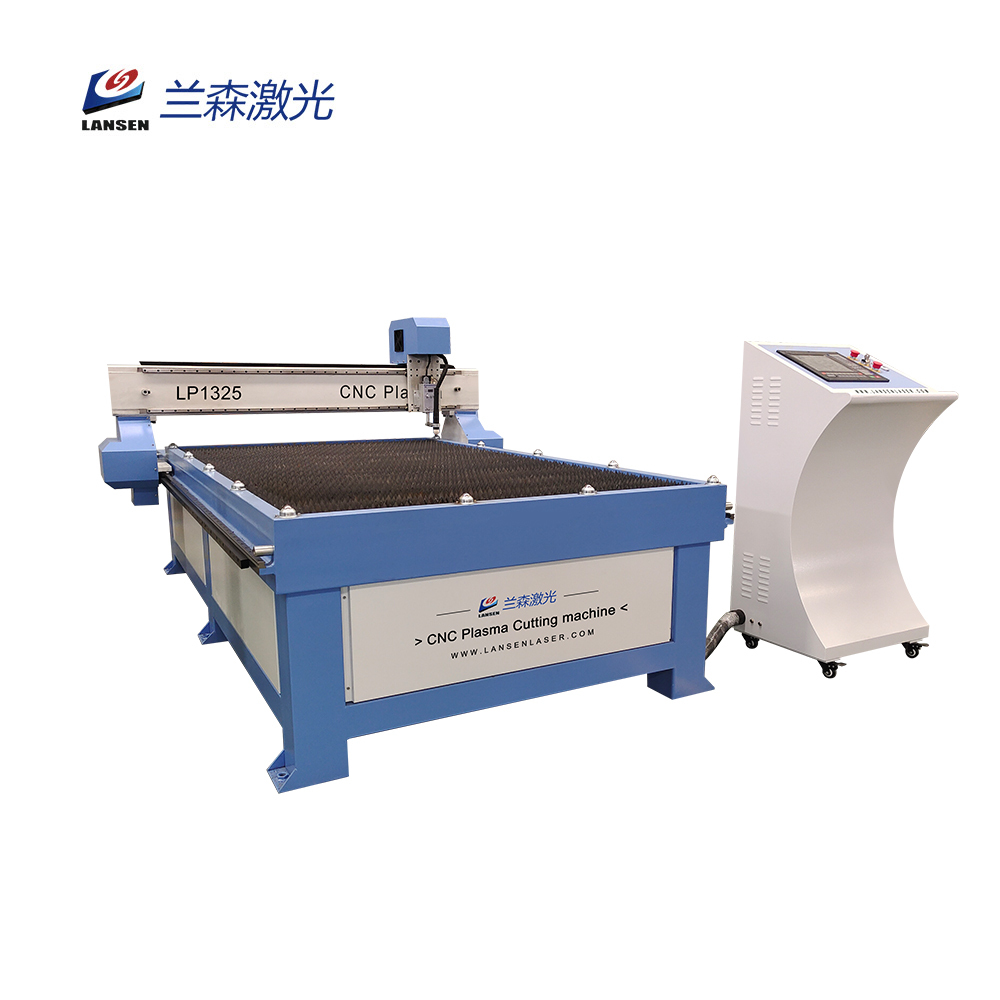

CNC plasma cutter machine is a CNC machine with a table, it cuts metals by plasma torch sometimes with the help of oxy-fuel, mainly cuts steel, stainless steel, iron and some non ferrous metals like aluminum, brass, copper, titanium, galvanized sheet and other metal in the thickness of 0.5 to 22mm at a good feeding rates of 0-8000mm/min.
With the advantages of fast cutting speed, smooth cut surface, little heat distortion and almost no heat affected zone, plasma cutting machines are widely used in automobiles, locomotives, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structures and other industries!
Applicable Industries:
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge
Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery.
Applicable Materials:
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal
Cut thickness reference
|
Model |
63A |
100A |
120A |
160A |
200A |
|
Cutting Thickness (CS) |
0.3-10mm |
0.3-18mm |
0.3-25 |
1-30mm |
1-40mm |
|
Model |
TSP1325 |
|

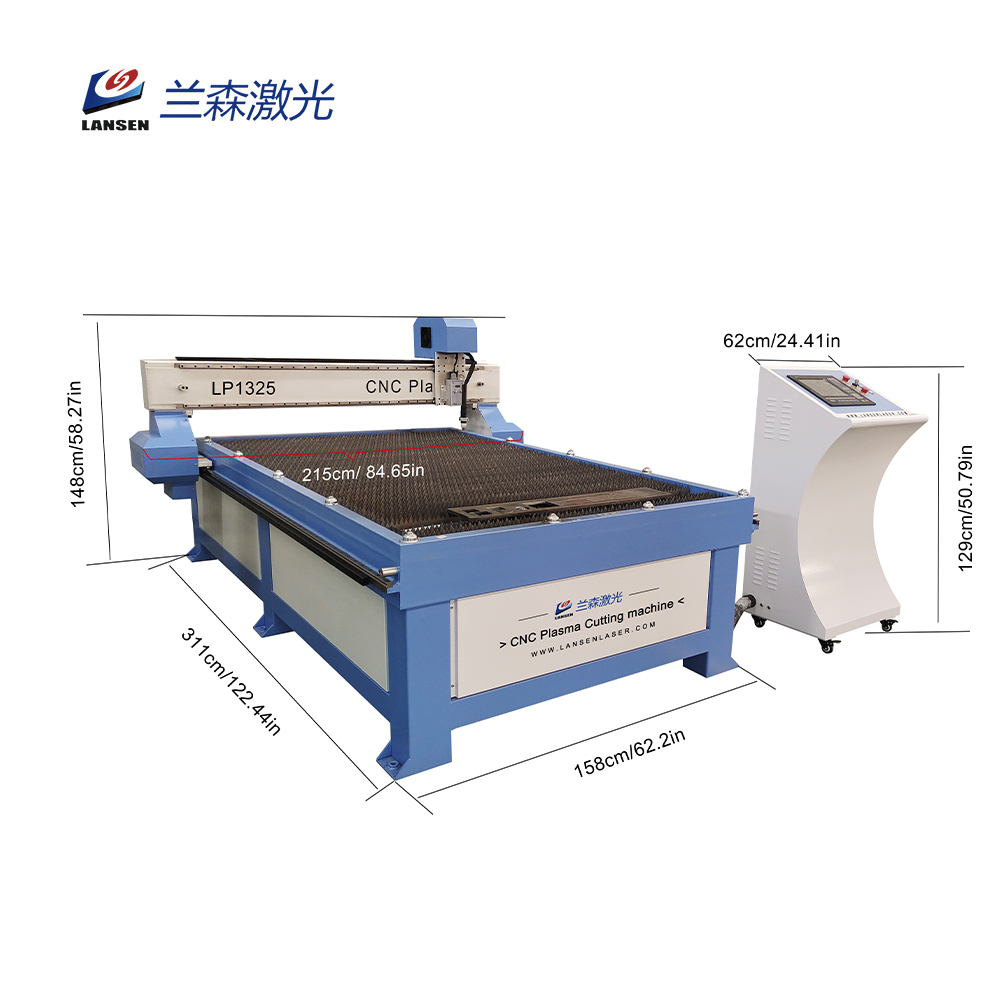

Working Area(X*Y) |
1300mm×2500mm |
|
Work speed |
0-50000mm/min |
|
Cutting Speed |
0-8000mm/min |
|
Control System |
Beijing Starfire Controller |
|
Software |
StarCAM |
|

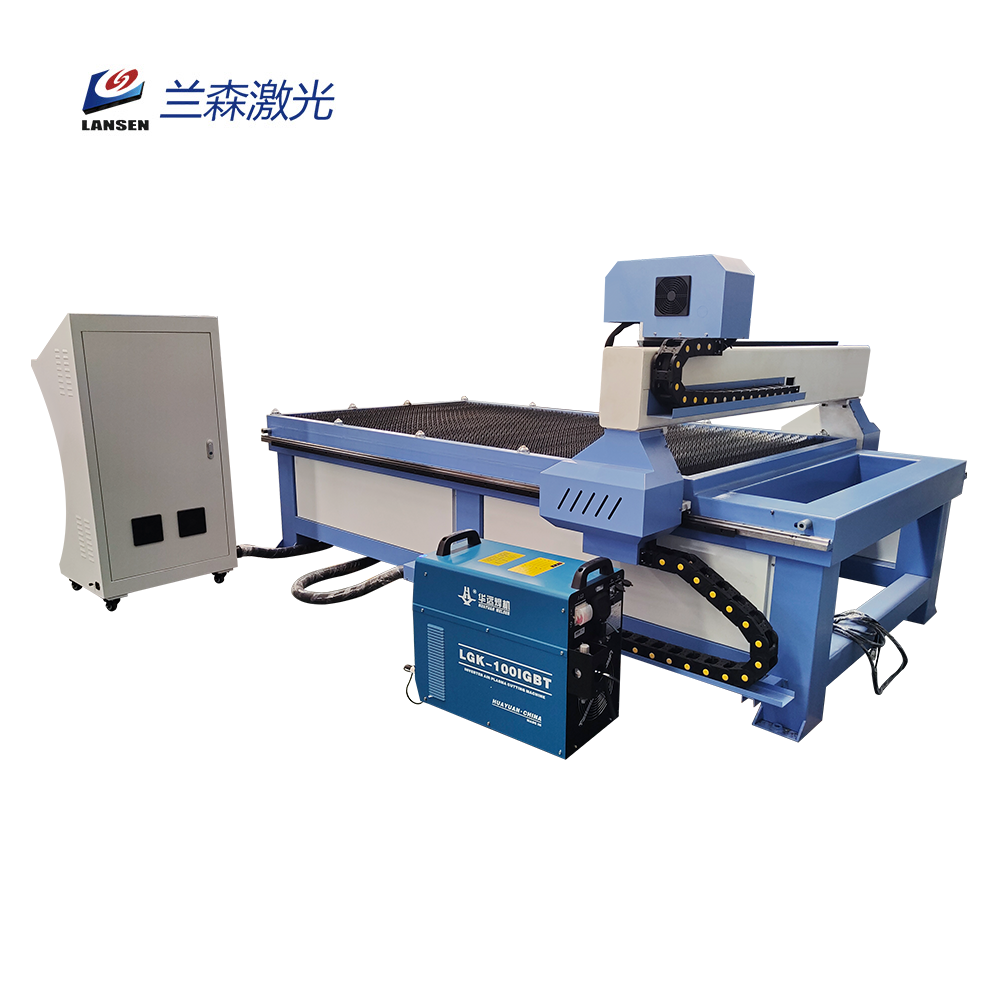

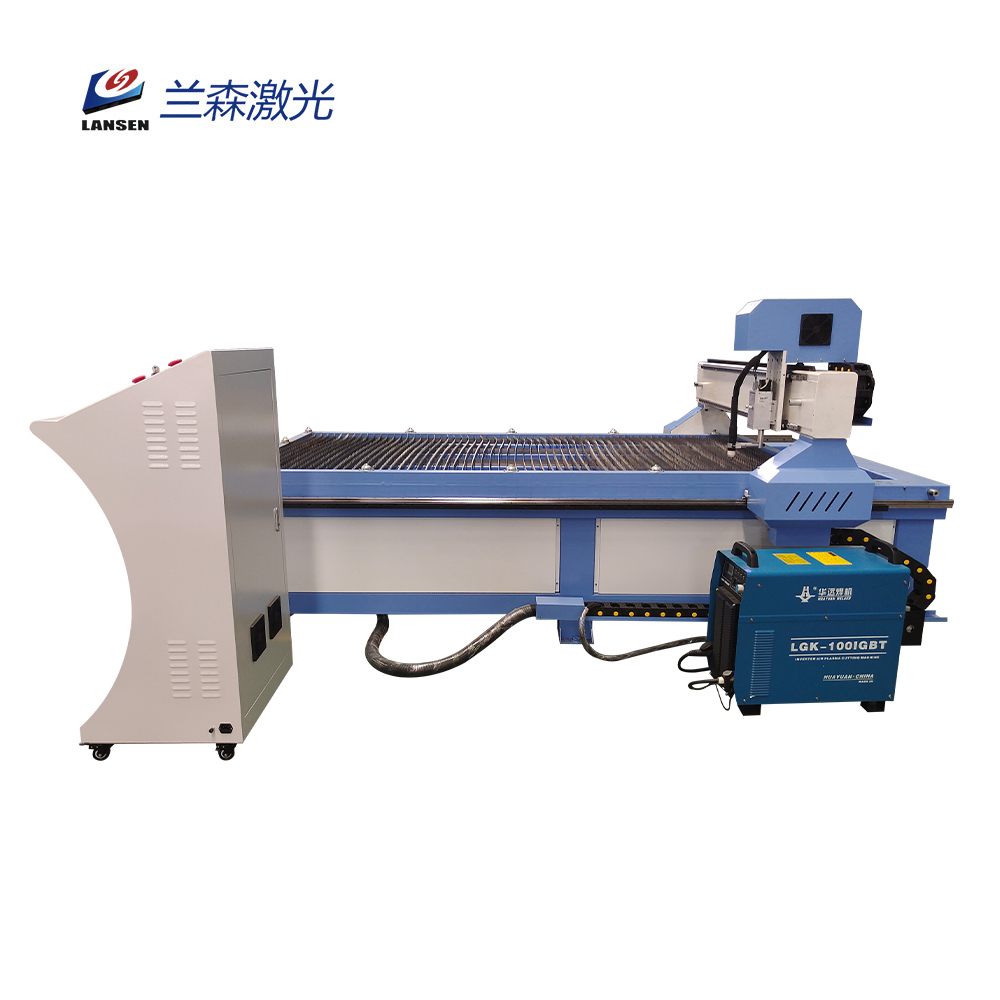

Plasma Generator |
Huayuan LGK Plasma gernerator |
|
Document Transmission Form |
USB Interface |
|
Working Form |
Untouched Arc Striking |
|
Lubrication System |
Yes |
|
Automatic Height Adjust |
Yes |
|
Cooling Way |
Water Cooling |
|
Guide Rail |
Linear Guide rail |
|
Transmit Way |
X,Y gear Rack, Z ballscrew |
|
Working Voltage |
3-Phase 380V/50Hz |
|
Power |
8.5KW—10.5KW |
1). This machine adopts a square tube often entirely welded; the machine body adopts shaking preventing technical disposal, with the characteristics of firmness, shape retention and high rigidity.
2). Reasonable platform design, the flat table adopts the 10 mm steel plate with precision process installed on the machine table, and then install a precision cast iron coating to protect the vertical steel, to prevent the steel plate from being subject to high-strength flame. The level difference of the entire two-storey platform remains in 0-1.5 mm.
3). Reasonable step losses designed to slide the work piece and other fragments on the sides of the knife rack, safely and conveniently to use.
4). This machine adopts the Japanese Panasonic servo motor and the high precision toothed wheel. The noise is low and the machine works constantly.
5). This machine adopts the Start control system implemented in Sino-US joint venture and in Germany with FASTCAM design software with automatic material saving function
6). The machine adopts the American Cut-Master power source (power 60A / 120A / 200A) with high sensitivity arc pressure regulator. Self-adjusting to automatically select the best distance between the plasma head and the workpiece to guarantee cutting accuracy
7). The perfect, reasonable design and work piece with a high and immaculate surface make the machine the best choice for different thick materials and heterotypical sheet cuts
