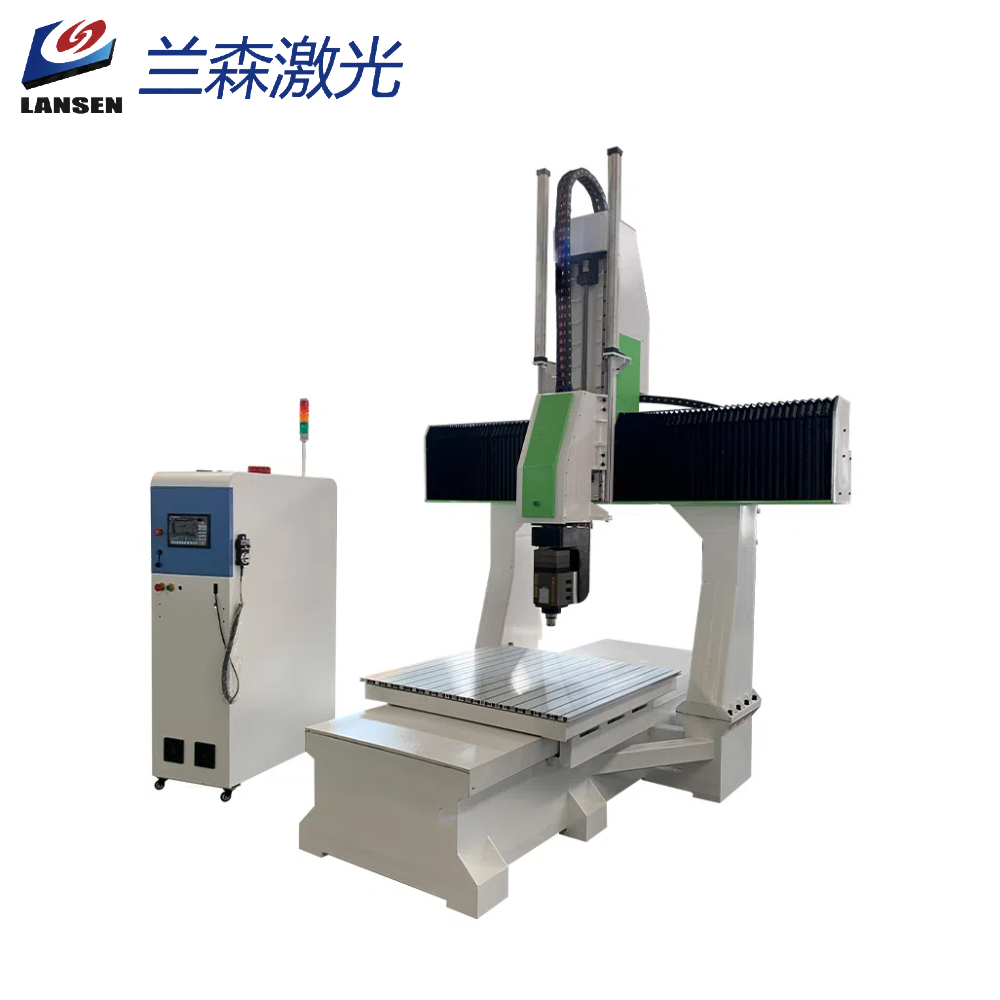

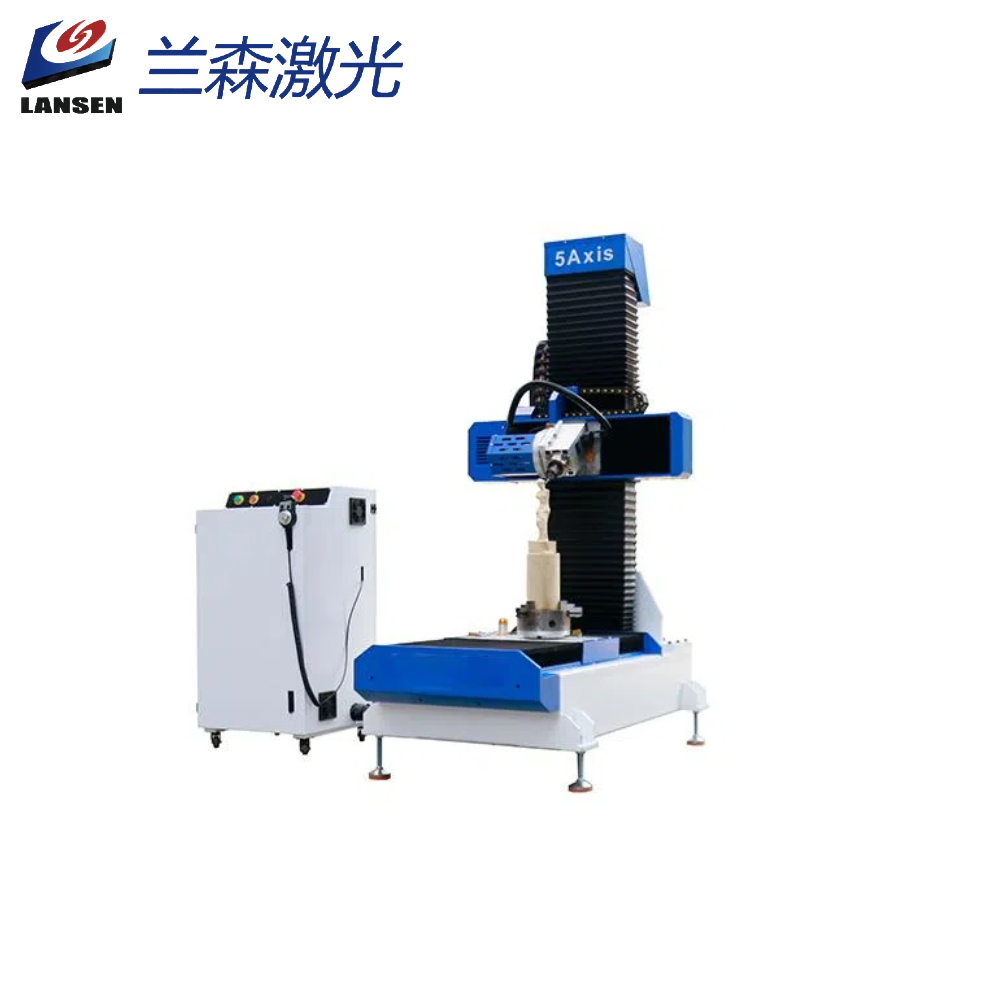

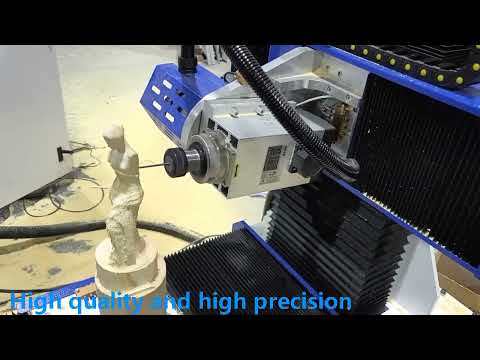

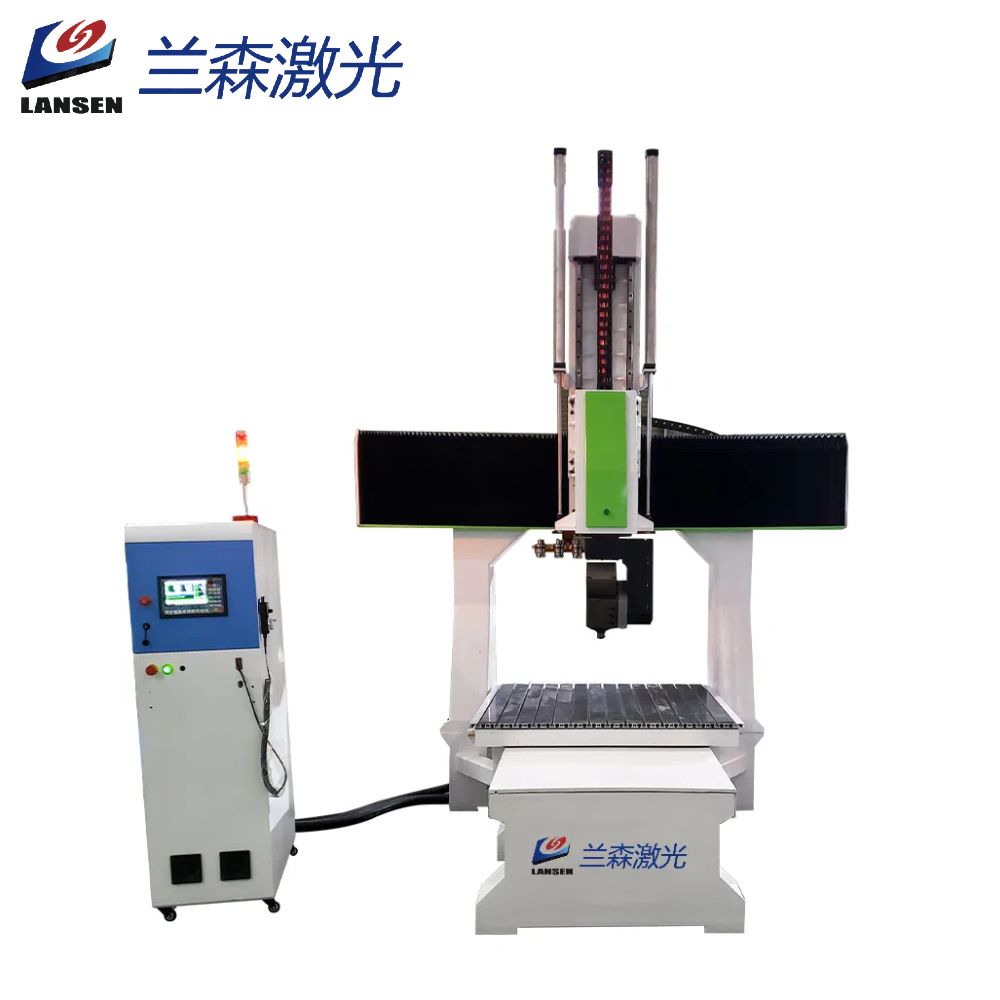

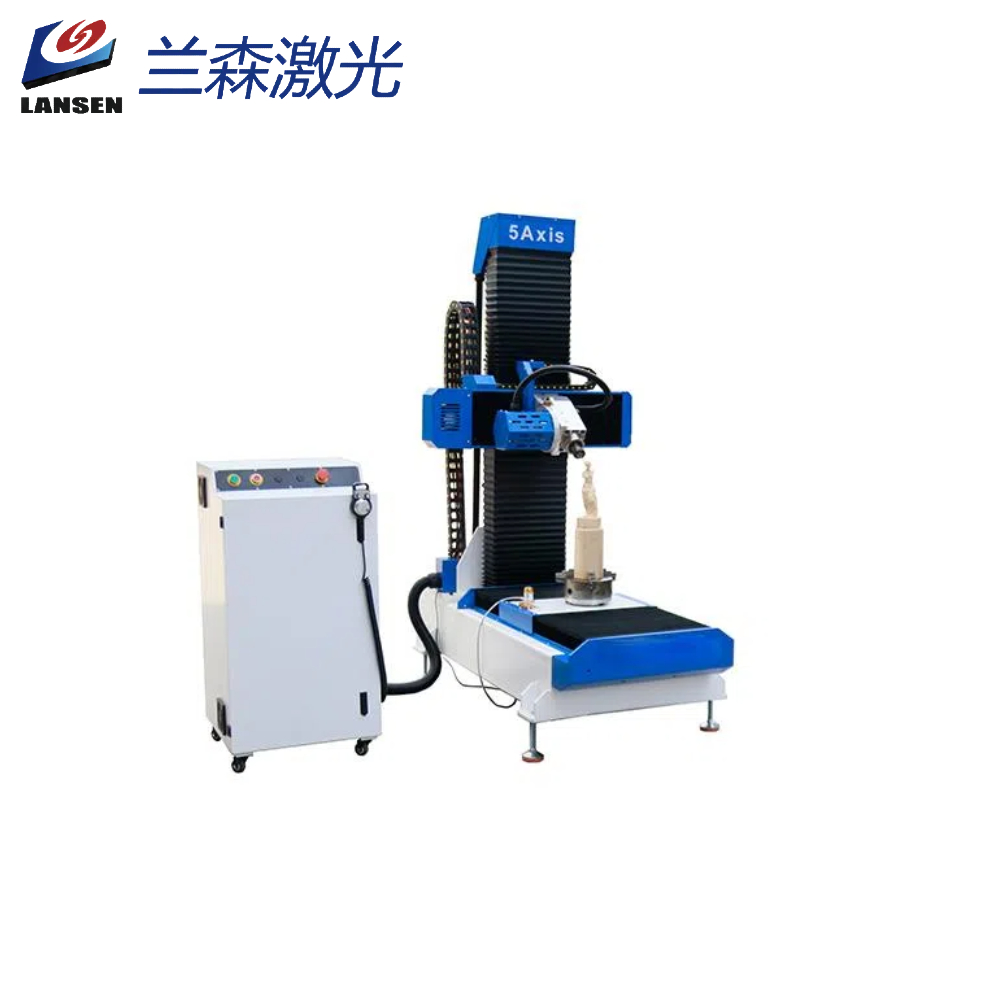

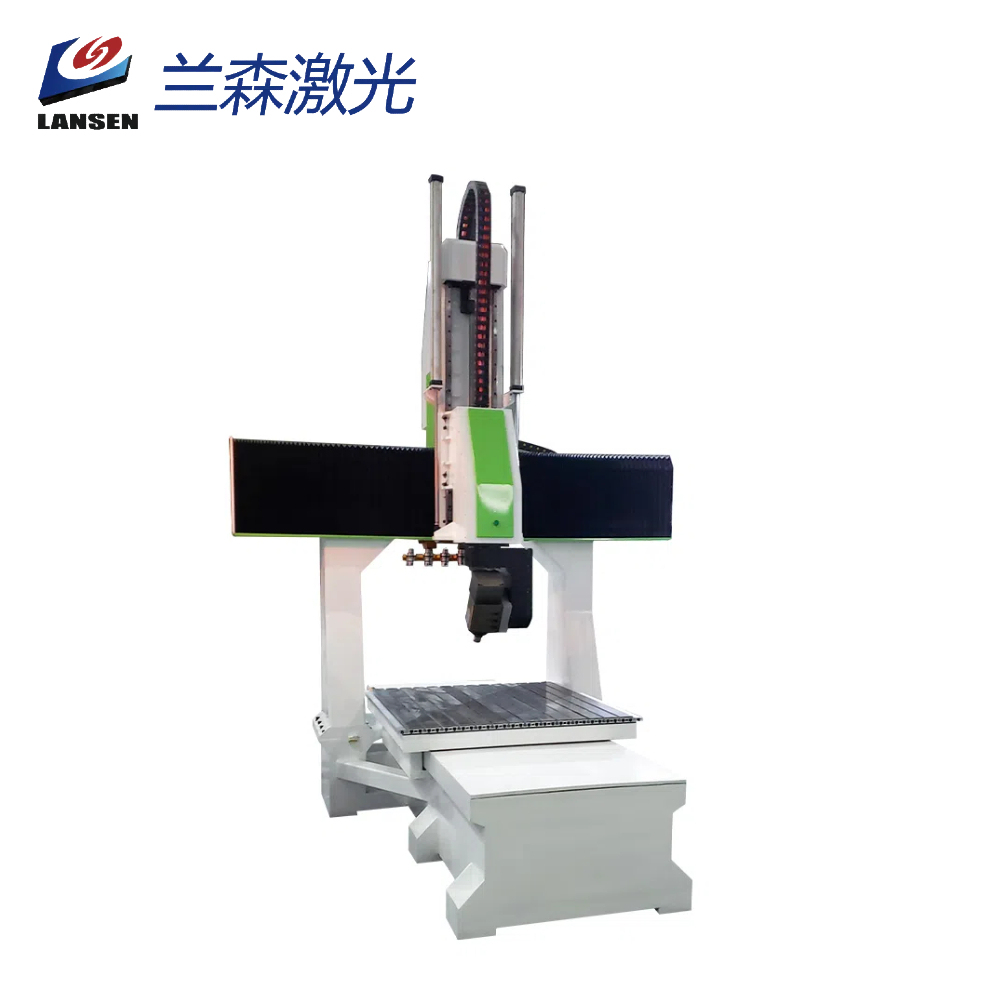

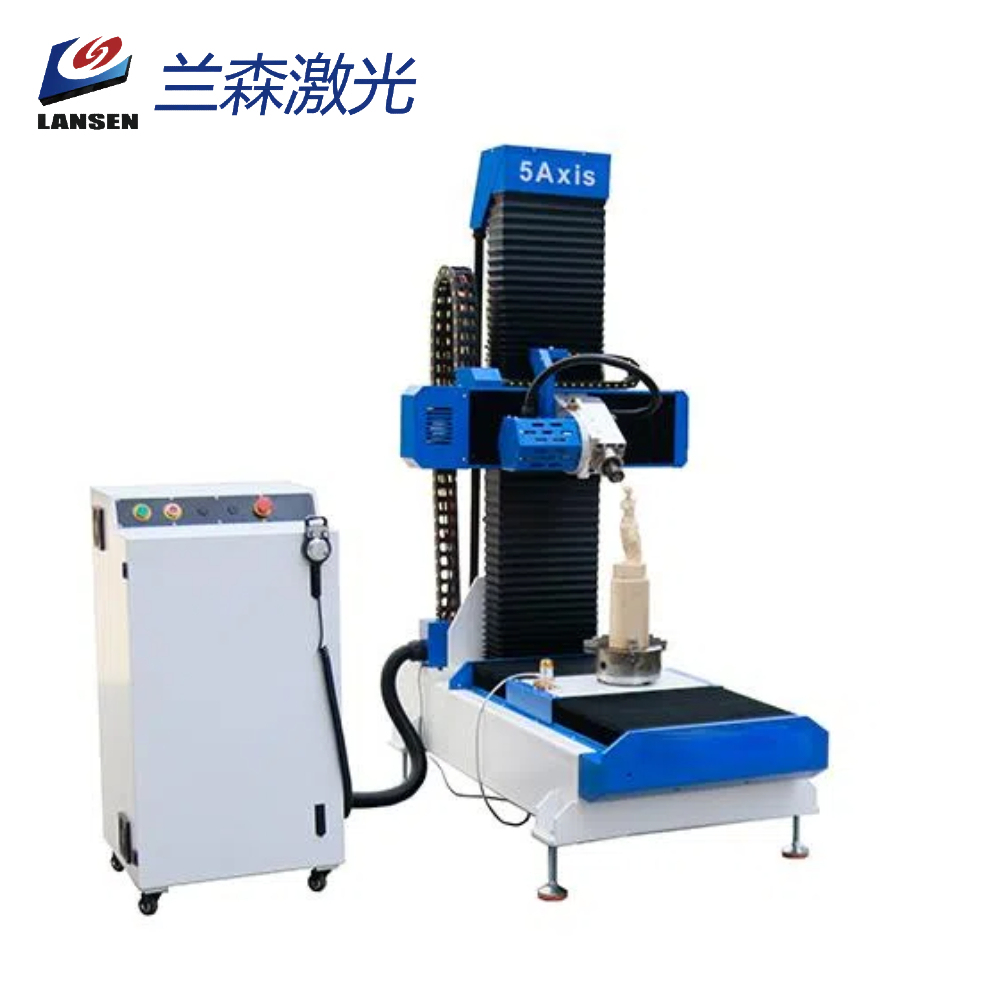

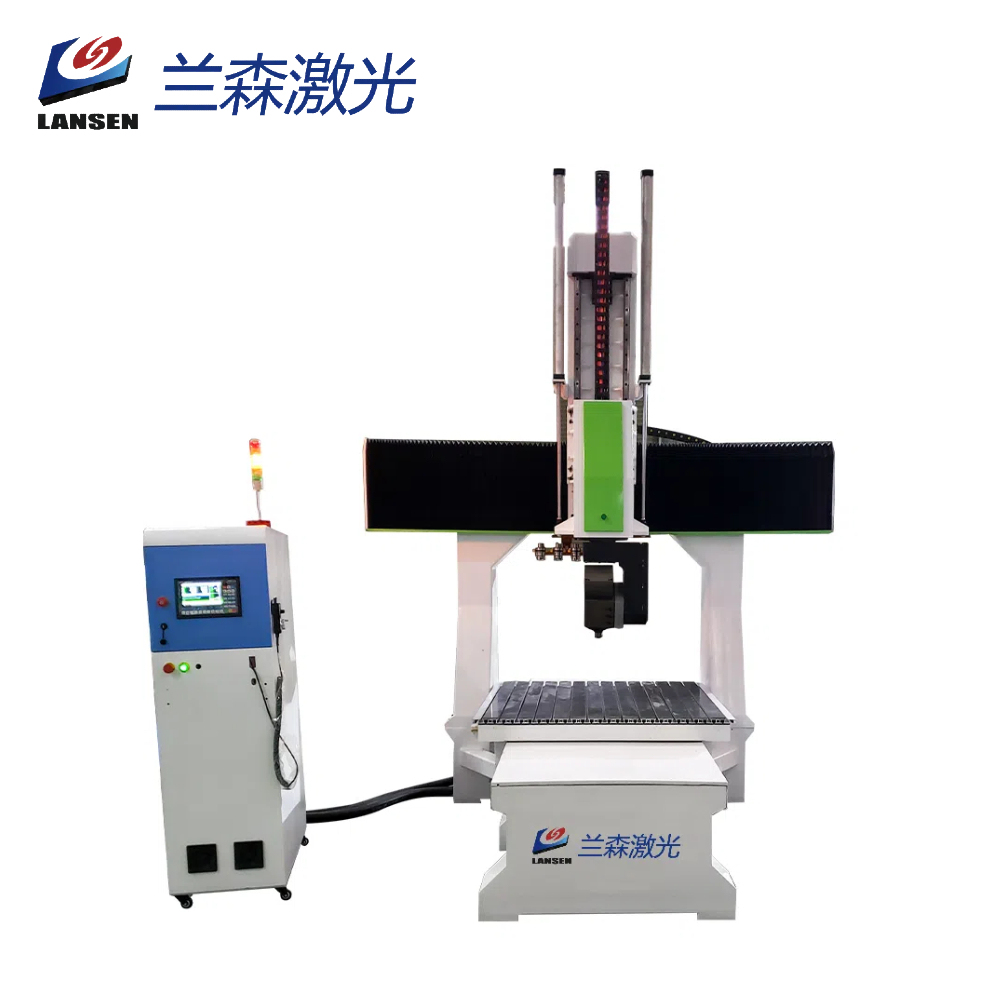

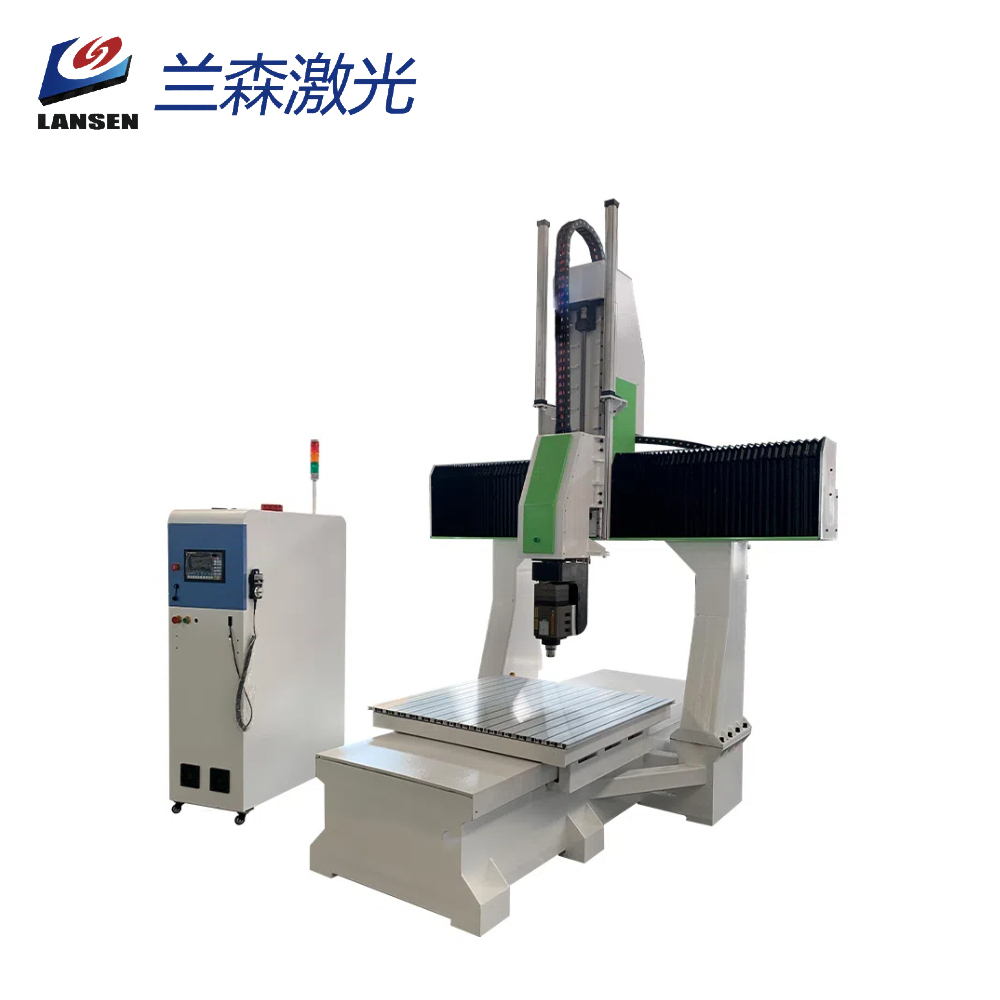

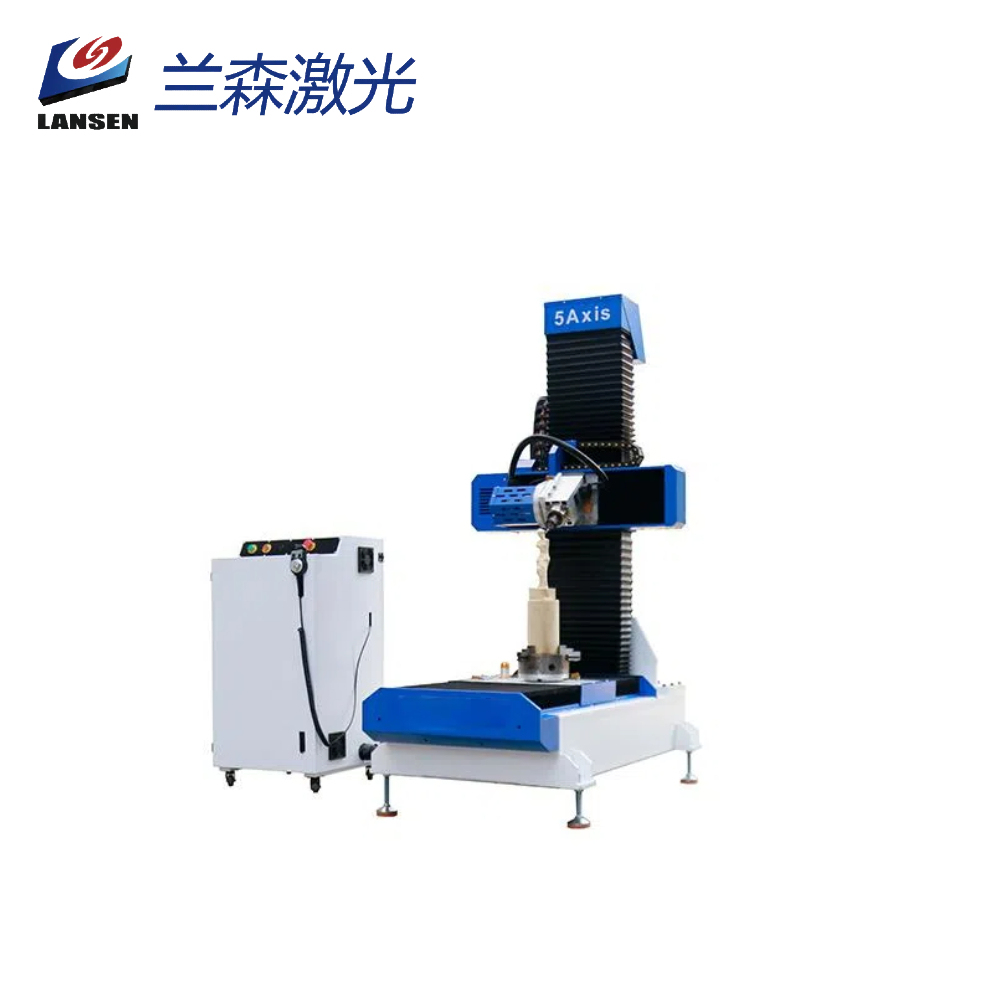

5 axis Cnc router for 3D engraving machine

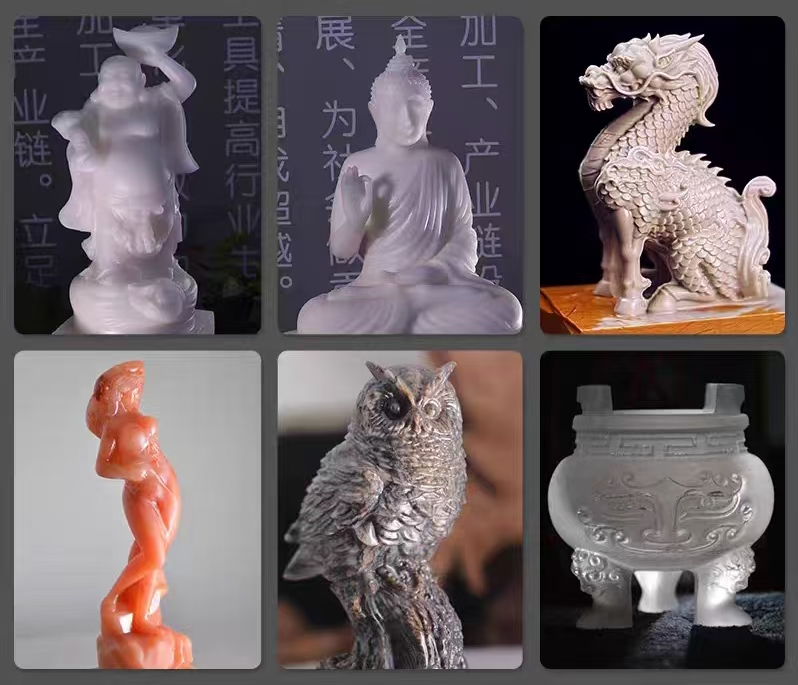

This machine with 5 axis spindle ( which can be rotated 360 degrees ), this machine is specially designed for mold prcessing, like: yacht boat car shoes aluminum molding making...
  • 5 axis Cnc router for 3D engraving machine
  • 5 axis Cnc router for 3D engraving machine
  • 5 axis Cnc router for 3D engraving machine
  • 5 axis Cnc router for 3D engraving machine
  • 5 axis Cnc router for 3D engraving machine
Description
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
5. Mold industry: casting, cars, ships, yachts, aerospace industry, wind power generation, rail transport, large arts and crafts.

Model

5 axis cnc rouer machine

Controlsystem

Mach3

Spindle

3.2kw water cooling spindle

Spindle speed

0-24000 rpm

XYZ Traveling PositioningAccuracy

±0.005mm

XYZ Repositioning Accuracy

±0.005mm

Table Surface

T-slot waork table +water tank

Frame

Castbyiron

X,YZ Structure

HIWIN Rail Linear Guide and TBI Ball Screw

Max.Power Consumption

(Without Spindle)1.5Kw

Max.Rapid Travel Rate

6000mm/min

Max.Working Speed

4000mm/min

Motor

Stepper motor

Driver

Leadshine driver

Working Voltage

200v/380v 50/60 hz

Command Language

G code

Computer Interface

USB

X,YResolution

20.01mm

SoftwareCompatibility

powermill

Running Environment Temperature

0-45 Centigrade

RelativeHumidity

30%-75%

nverter

Fulinginverter

Electrical components

Schneider

Limit switch

0MRON
