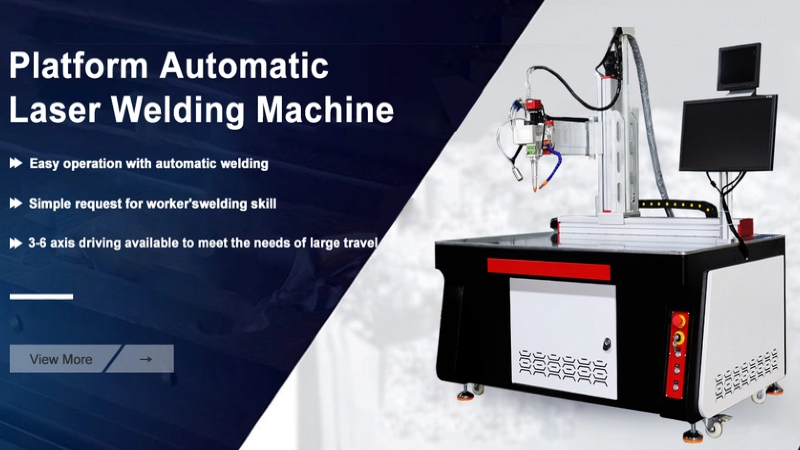

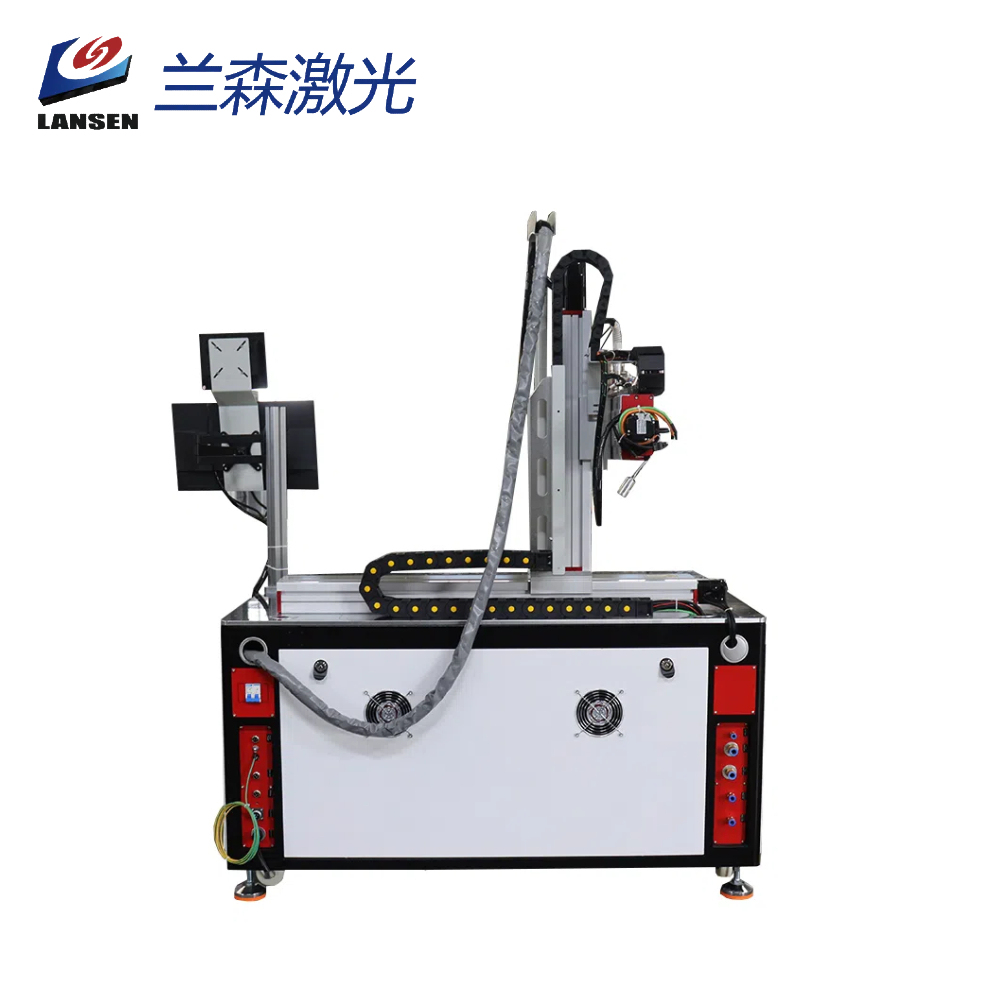

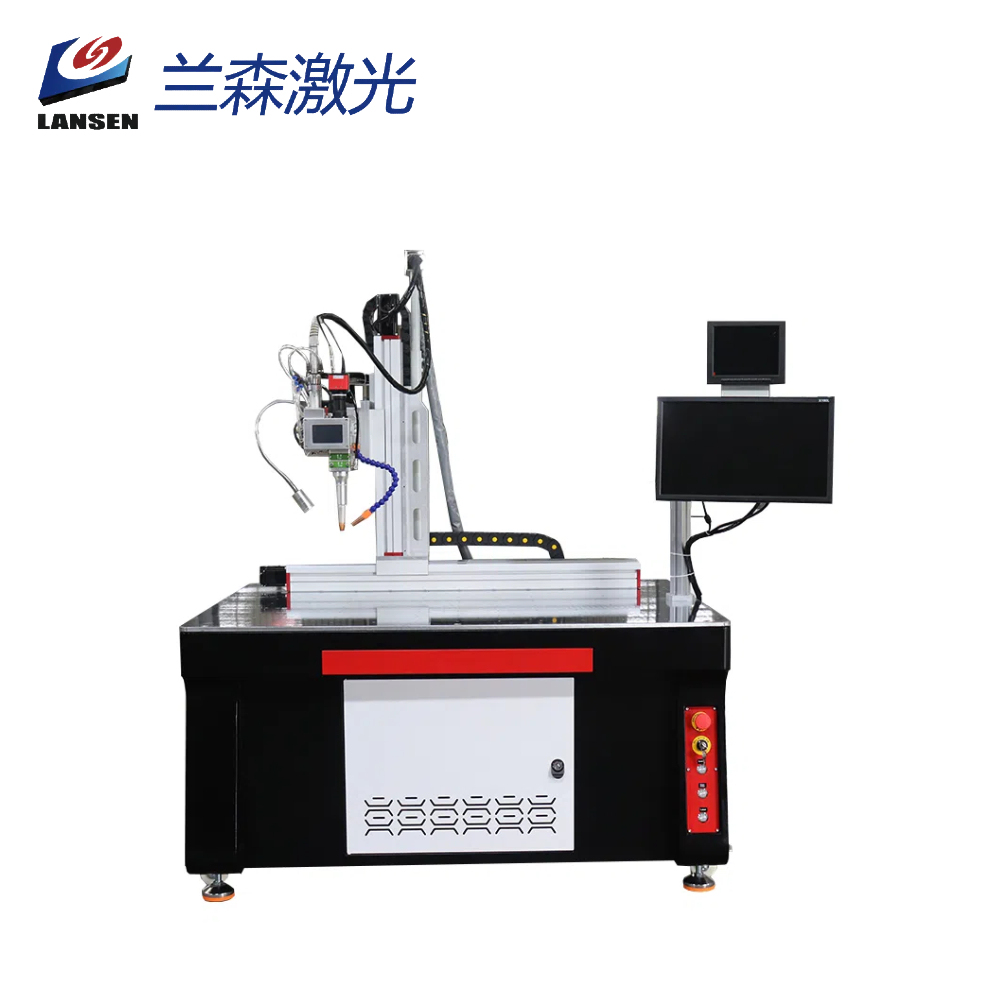

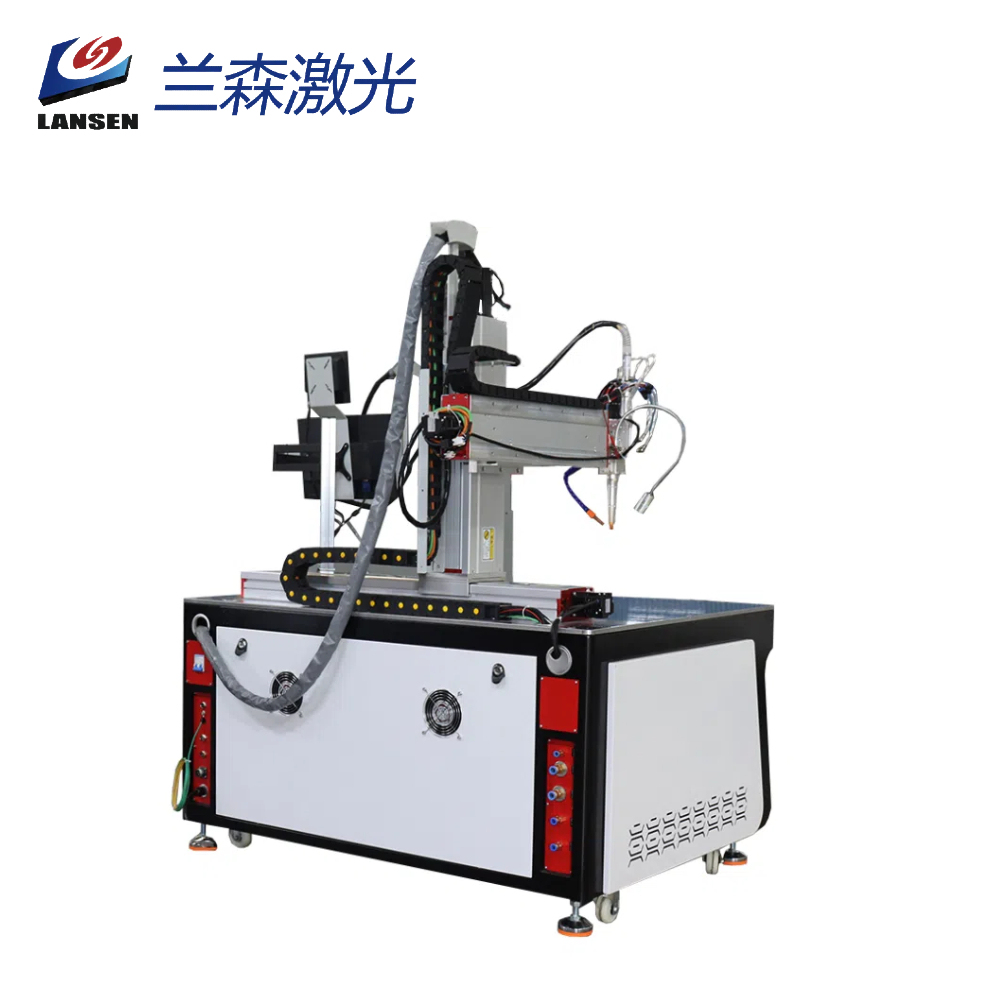

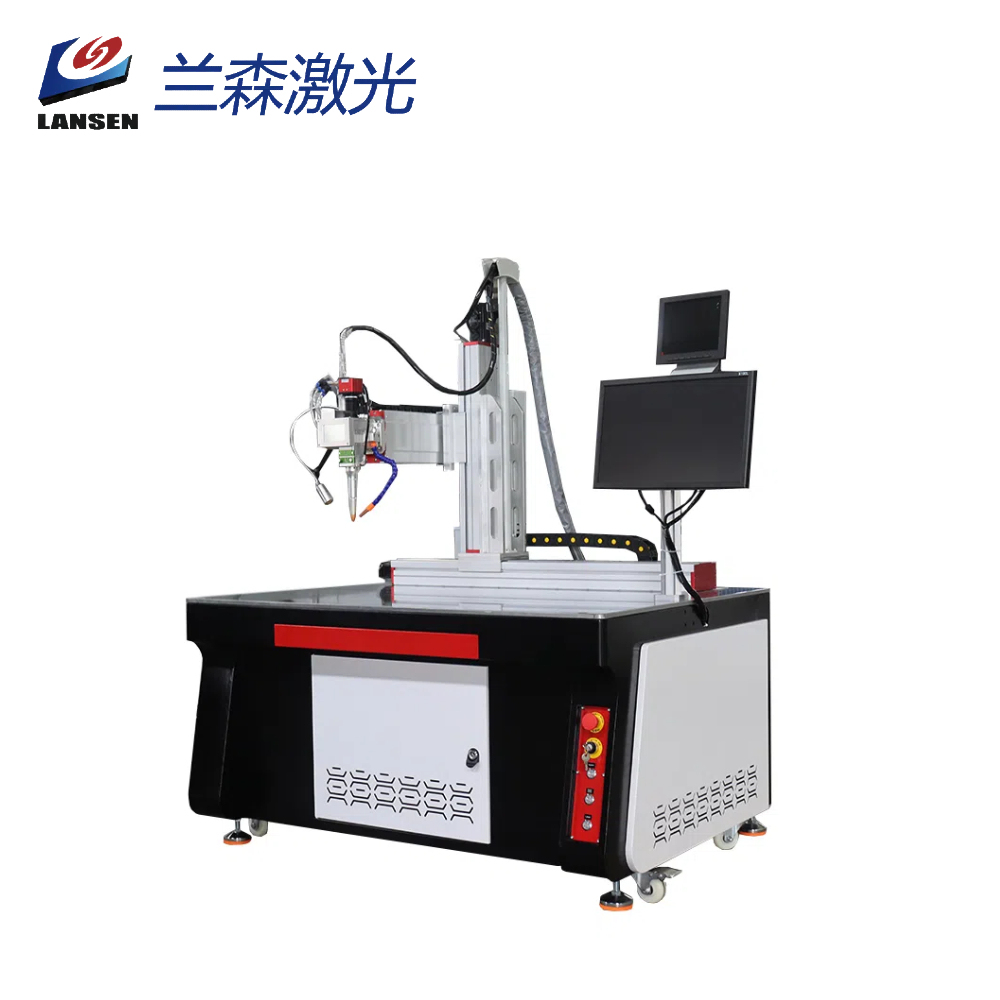

Platform Fiber laser welding machine is special for automatic laser welding applications. It adopts continous fiber laser source and is easy to operate.

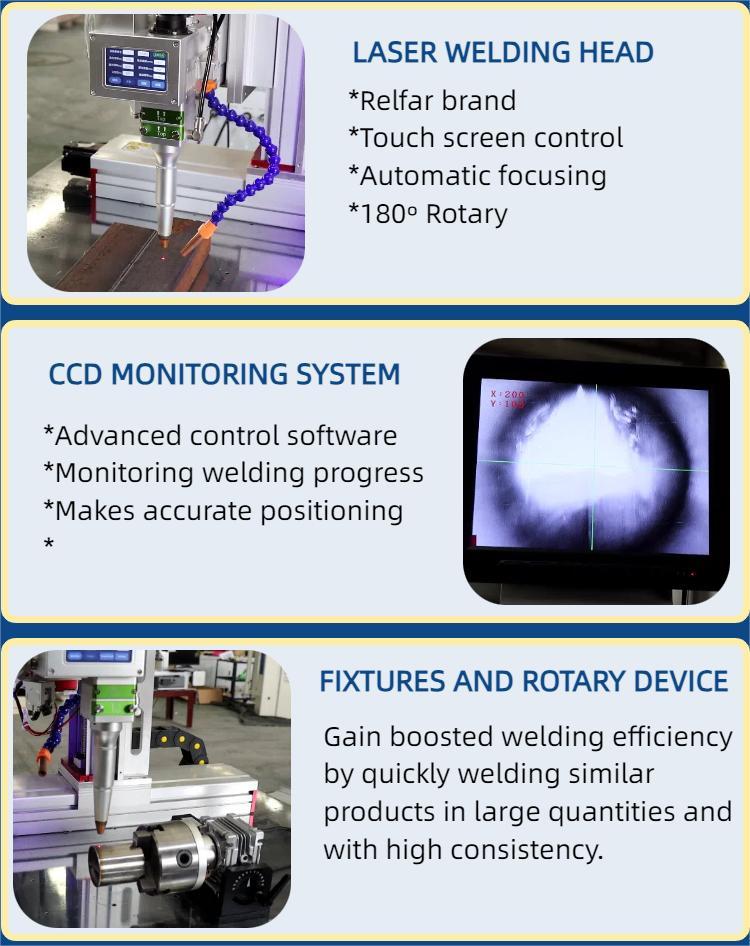

Equipped with a CCD monitoring system and advanced control software, the fiber laser welder makes accurate positioning,auto-focuses on the welding parts, and produces high-tensile tight seams with top visual quality. With fixtures and rotating devices, you gain boosted welding efficiency by quickly welding similar products in large quantities and with high consistency.
It is used for off-line / on-line welding of mass production enterprises in electronics, communication, hardware and other industries. It applies to high-efficiency laser spot welding and seal welding of mobile phone shielding cover, metal mobile phone shell, metal capacitor shell, hard disk in computer, micro-motor, sensor, metal shielding net, shaving blade and other types of electronic products.
|

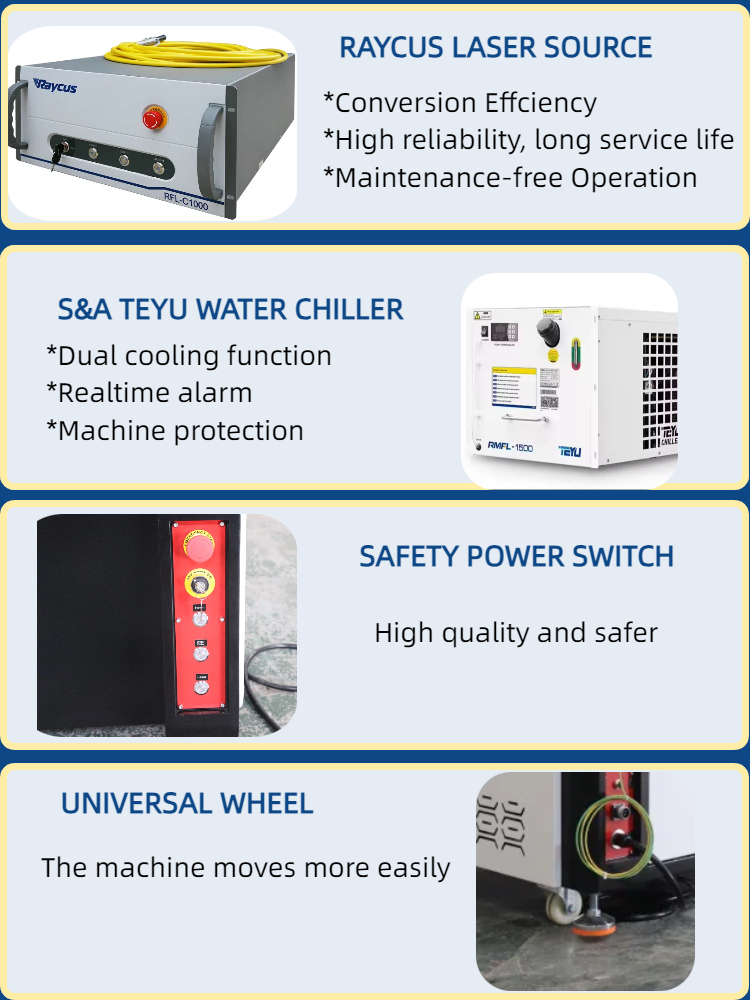

Laser source |
Raycus |
|
Laser wavelength |
1064nm |
|
Pulse width |
0.1-25ms |
|
Laser welding method |
continuous |
|
Instability of energy |
＜2% |
|
Beam Divergence |
≤8mrad |
|
minimal beam diameter |
0.1mm |
|
Adjustable scope of laser spot |
0.1~1mm |
|
Welding depth |
1~8mm |
|
Continue working time |
16hours |
|
Noise |
≤30db |
|
Transmission system |
Fiber optical transmission system (FOTS) |
|
Cooling system dimensions |
Water cooling |
|
Power required |
220V±10%/50Hz |
|
Consumable |
Xenon lamp、Filter element、Protective lens、Argon |
|
Working temperature |
55°F(13°C)-82°F(28°C) |
|
Working Humidity |
5%-75% |
|
Oil mist |
≤15mg/m³ |
