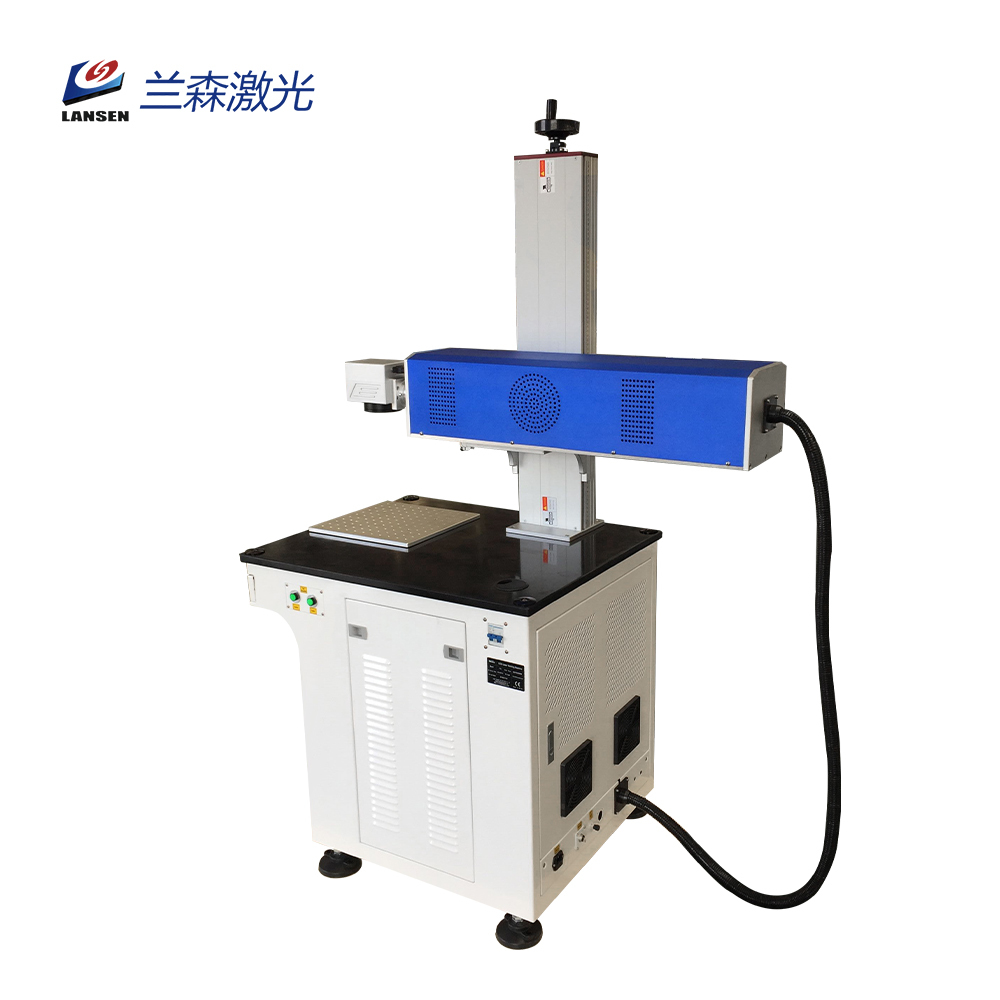

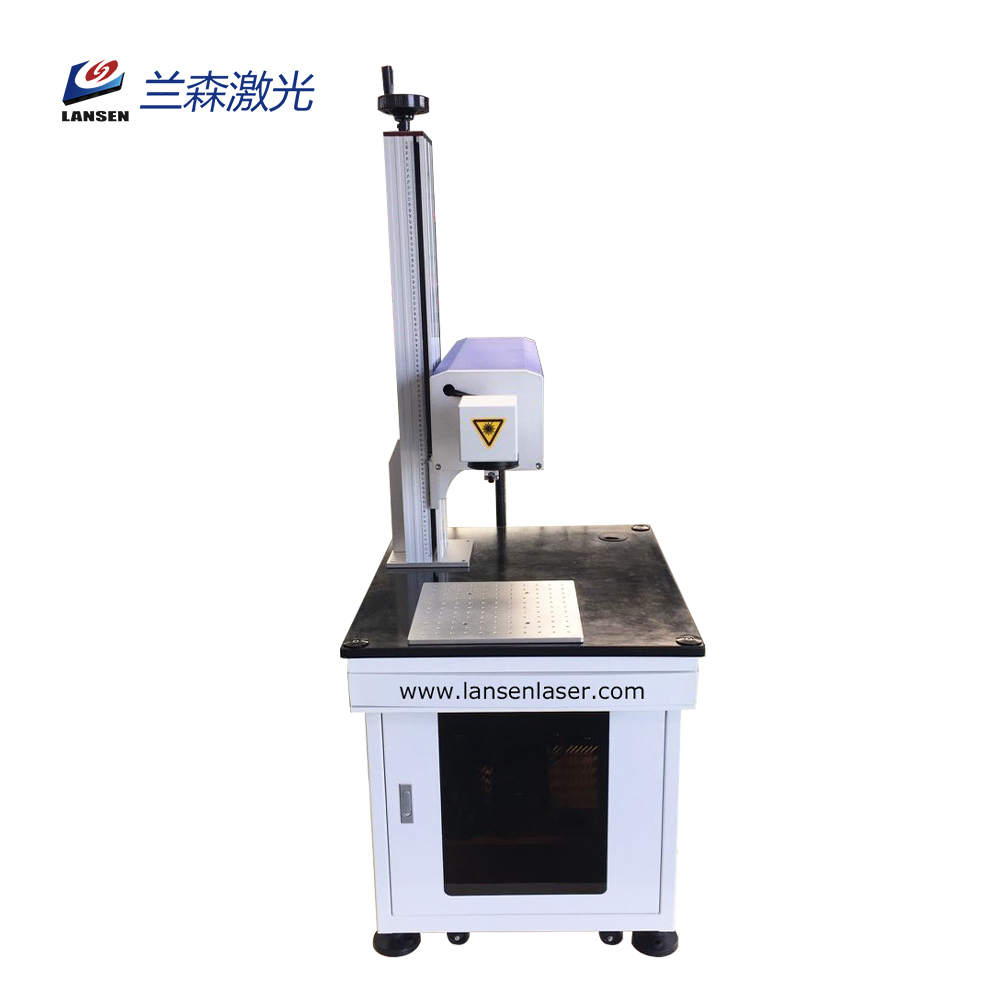

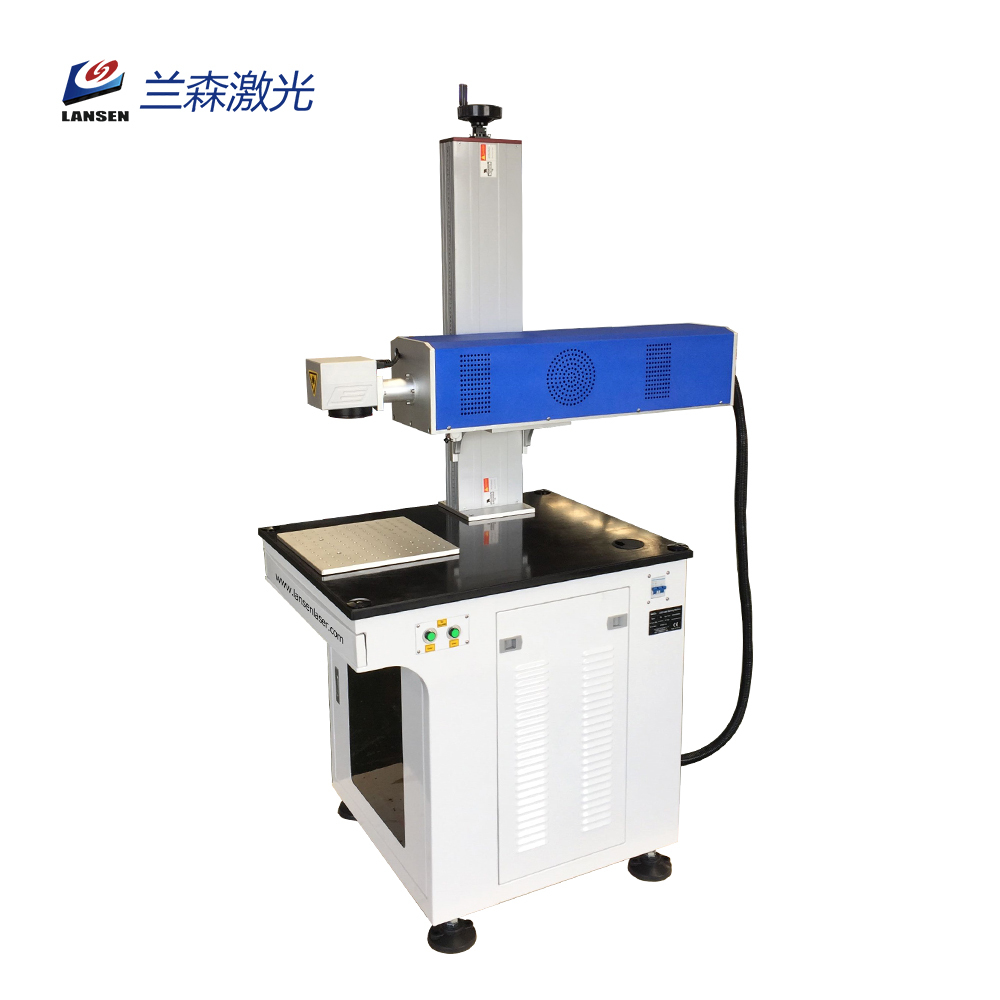

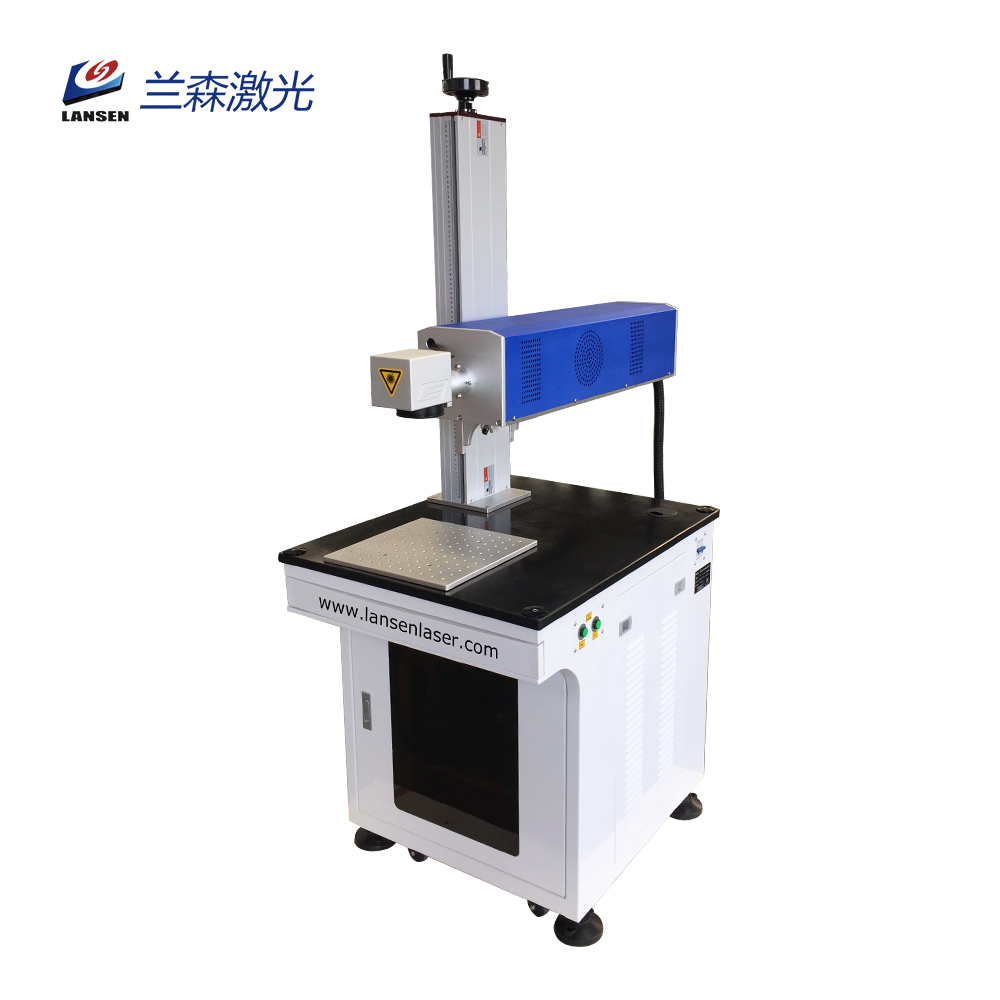

The CO2 laser is a general-purpose model with a rear focusing mode, small size, and high degree of integration. This machine is suitable for marking large non-metallic materials, such as paper packaging, plastic products, label paper, leather fabric, glass ceramics, resin plastic, bamboo and wood products, PCB board, etc. For example, such as packaging box laser flying marking, paper and metal detonator housing coding printing
|
Type |
LS-C02-30W/60W |
|
Laser power |
Metal RFtube(China orimported) |
|
Laser Wavelength |
10.6μm |
|
Laser Repetition Frequency |
s25KHZ |
|
MakingArea |
100mm*100mm/200mm*200mm/300mm*300mm |
|
MakingDepth |
s0.3mm(adjustable accordingto materials |
|
Linear Speed |
s7000mm/s |
|
Min.LineWidth |
0.1mm |
|
Min.Letter |
0.4mm |
|
Repeatable Accuracy |
±0.01mm |
|
Gross Power |
1.2KW |
|
Electricity Source |
220V/50Hz/8A |
|
CoolingSystem |
Air Cooling |
|
Suitable for |
Nonmetal materials marking or leather cloth quickly cutting |
|
Package size/Weight |
1210mm*740mm*1090mm/171kg |
|
Laser power |
Metal RFtube(China orimported) |
|
Laser Wavelength |
10.6μm |
|
Laser Repetition Frequency |
s25KHZ |
|
MakingArea |
100mm*100mm/200mm*200mm/300mm*300mm |
|
MakingDepth |
s0.3mm(adjustable accordingto materials |
|
Linear Speed |
s7000mm/s |
|
Min.LineWidth |
0.1mm |
|
Min.Letter |
0.4mm |
|
Repeatable Accuracy |
±0.01mm |
|
Gross Power |
1.2KW |
|
Electricity Source |
220V/50Hz/8A |
|
CoolingSystem |
Air Cooling |
|
Suitable for |
Nonmetal materials marking or leather cloth quickly cutting |
