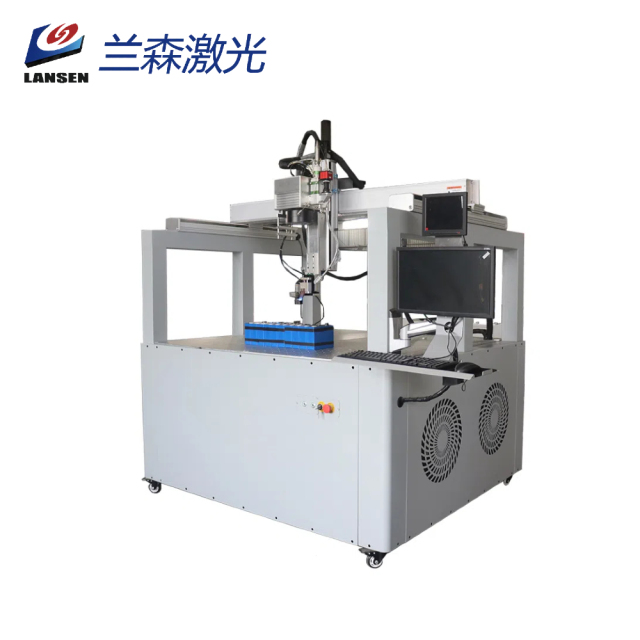

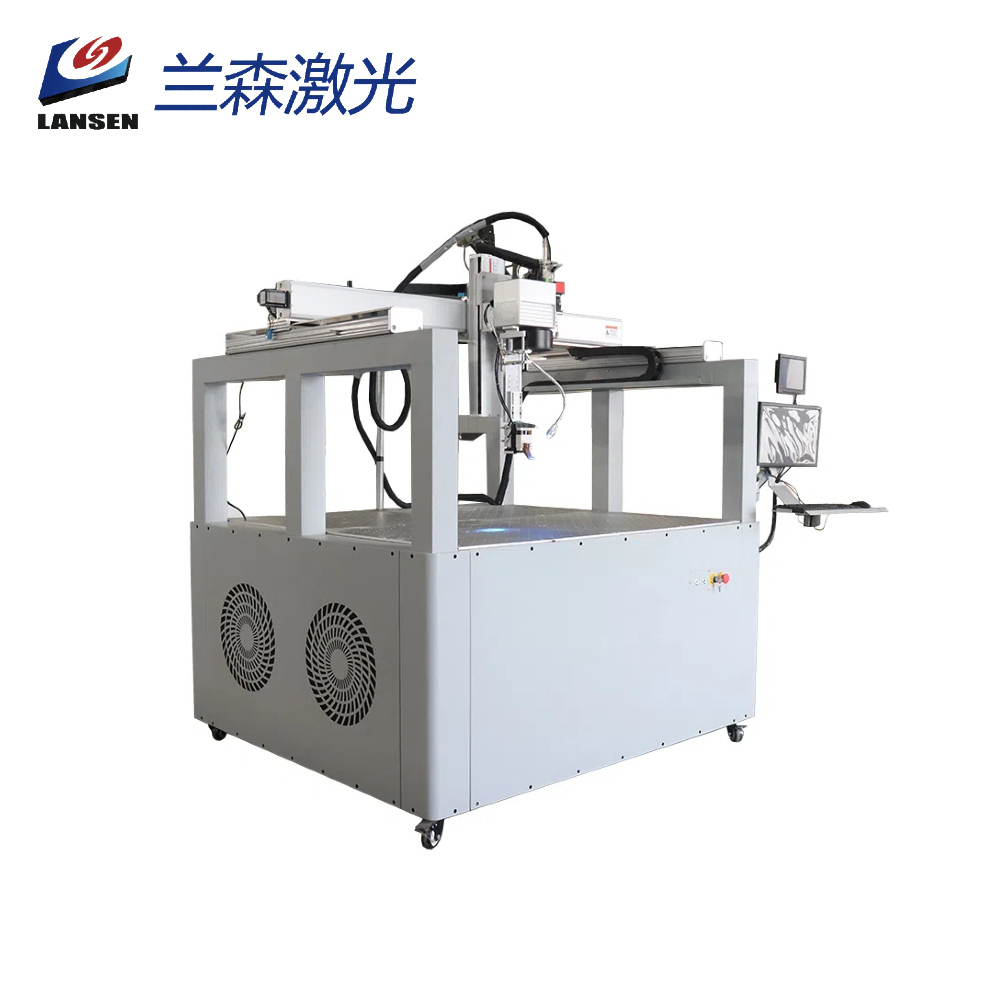

Gantry galvanometer laser welding machine is suitable for precision welding of lithium battery packs and power batteries. The integrated design and large workbench can realize the welding of multiple products at the same time. It has fast welding speed and high precision, and can cope with various complex welding needs.
It can weld fine microelectronic components, integrated circuit leads and other precision parts. For example, mobile phone batteries, lithium batteries, electronic components, sensors, tungsten wires, aluminum alloys, laptop computer shells, electrical accessories, filters, nozzles, zinc alloy crafts, etc. As an excellent choice for lithium battery welding, the gantry galvanometer laser welding machine has won the trust and praise of users for its high efficiency, stability and precision.
The integrated design and large workbench can realize the welding of multiple products at the same time. It has fast welding speed and high precision, and can cope with various complex welding needs.
The gantry galvanometer laser welding machine is an excellent choice for lithium battery welding,It has won the trust and praise of users for its high efficiency, stability and precision.
FEATURE
1.Excellent processing quality
The laser welding spot is fine, the taper is small, the precision is high, and the welding surface is smooth and free of bubbles
2.High processing efficiency
Fast welding speed, work efficiency increased by 3-5 times
3.Wide range of applications
Square aluminum shell power battery pack, polymer power battery pack, cylindrical power battery pack, large monomer to nickel, welding stud, large polymer tab to nickel and other types of batteries.
4.Multiple operation modes
Spot welding, butt welding, stitch welding, seal welding, etc
5.Industrial PC Control
Can perform laser point, straight line, circle, square and other plane arbitrary graphic welding processing

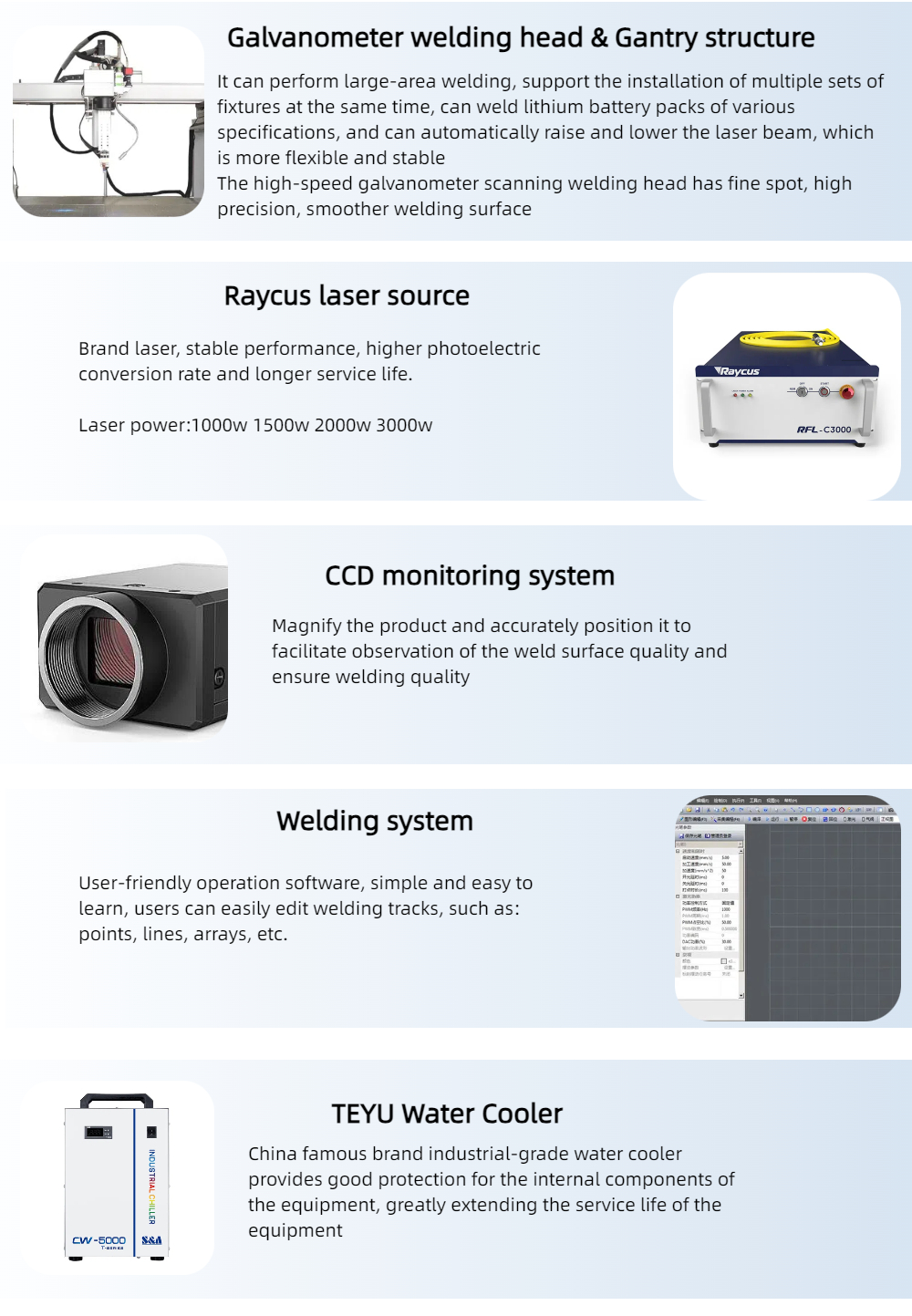

MAIN PARTS
1.Laser
Brand laser, stable performance, higher photoelectric conversion rate and longer service life.
2.CCD monitoring system
Magnify the product and accurately position it to facilitate observation of the weld surface quality and ensure welding quality
3.Gantry structure
It can perform large-area welding, support the installation of multiple sets of fixtures at the same time, can weld lithium battery packs of various specifications, and can automatically raise and lower the laser beam, which is more flexible and stable.
4.Galvanometer welding head
The high-speed galvanometer scanning welding head has fine spot, high precision, smoother welding surface, and is compatible with various welding modes of power battery packs.
5.Water Cooler
Industrial-grade water cooler provides good protection for the internal components of the equipment, greatly extending the service life of the equipment
SIMPLE
Product Parameter
|
Laser brand |
MAX/JPT/RAYCUS/IPG (Optional) |
|
Frequency |
20KHz |
|
Power adjustment range |
10%-100% |
|
Laser wave length |
1080nm |
|
Welding spot |
0.5-2.0mm |
|
Fiber length |
10-15m |
|
Cooling |
By chiller, cool water |
|
Positioning method |
CCD + red light preview |
|
CCD accuracy |
0.01mm |
|
Welding head |
Galvo Type |
|
Welding speed |
50-60mm/s |
|
Axis driver |
Servo motor |
|
Axis travel |
X:800mm;Y:600mm;Z:400mm(Customizable) |
|
Bttery fixture |
Customizable |
|
Voltage |
AC220V/AC380V 3P/50HZ |
