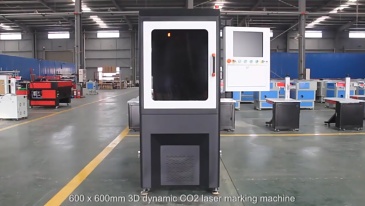

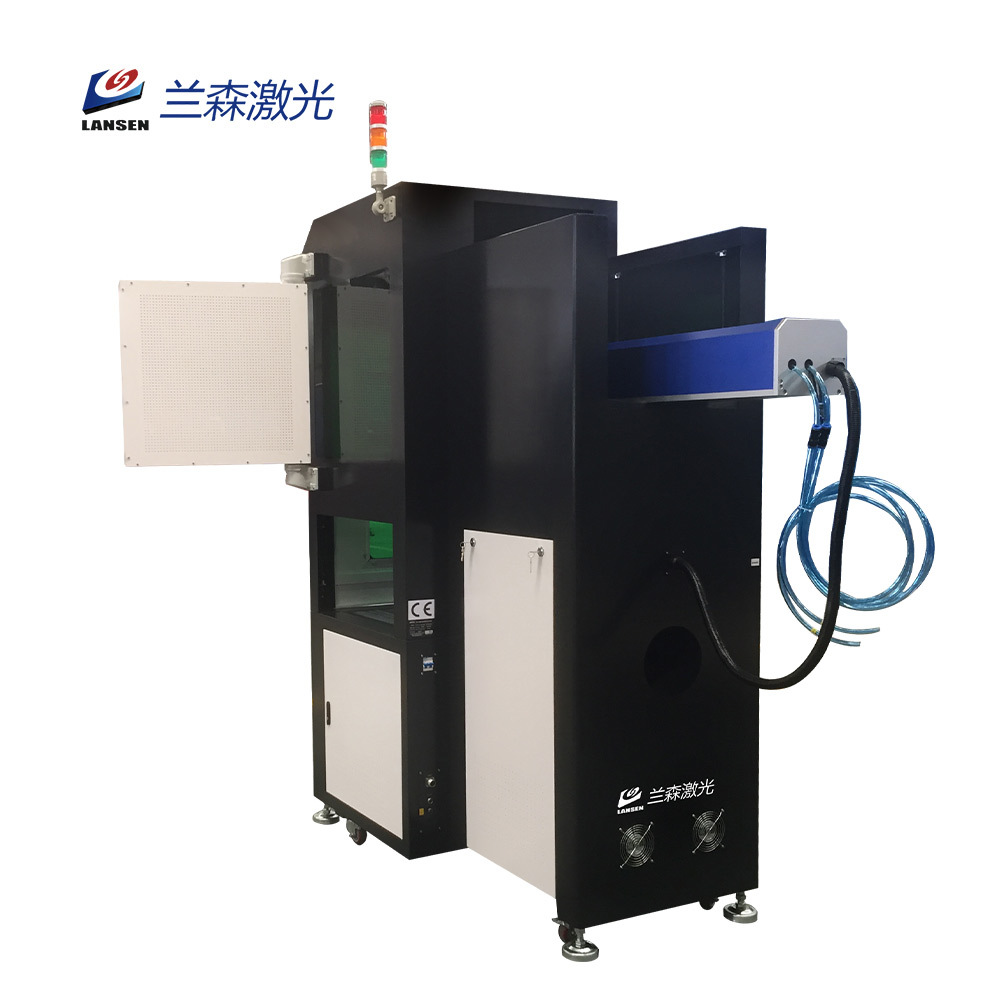

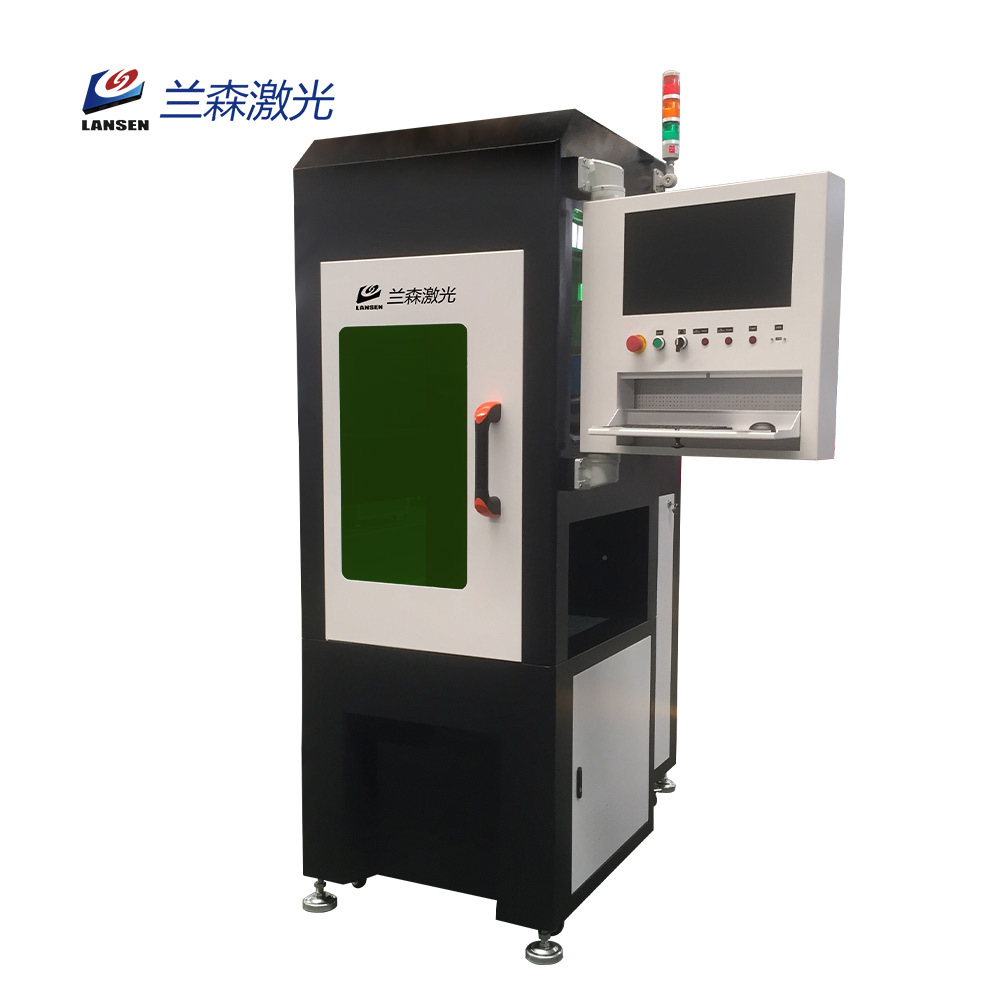

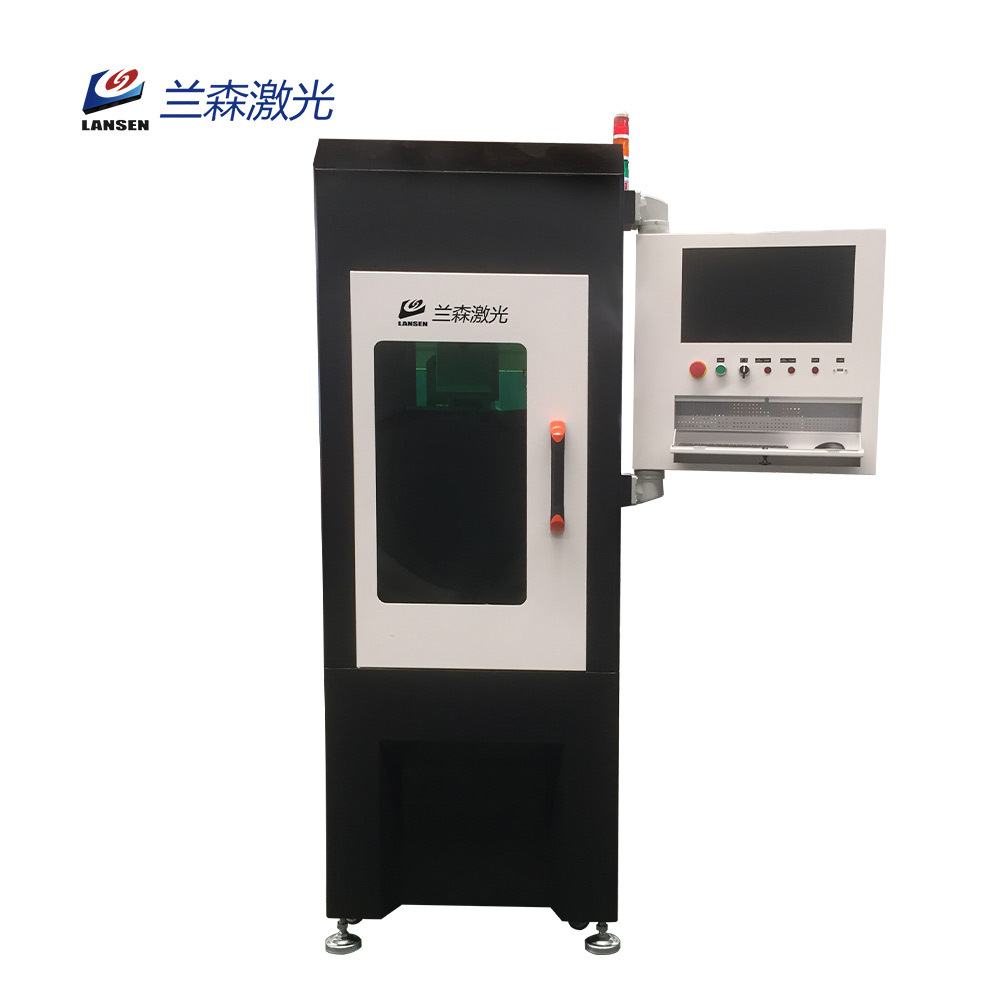

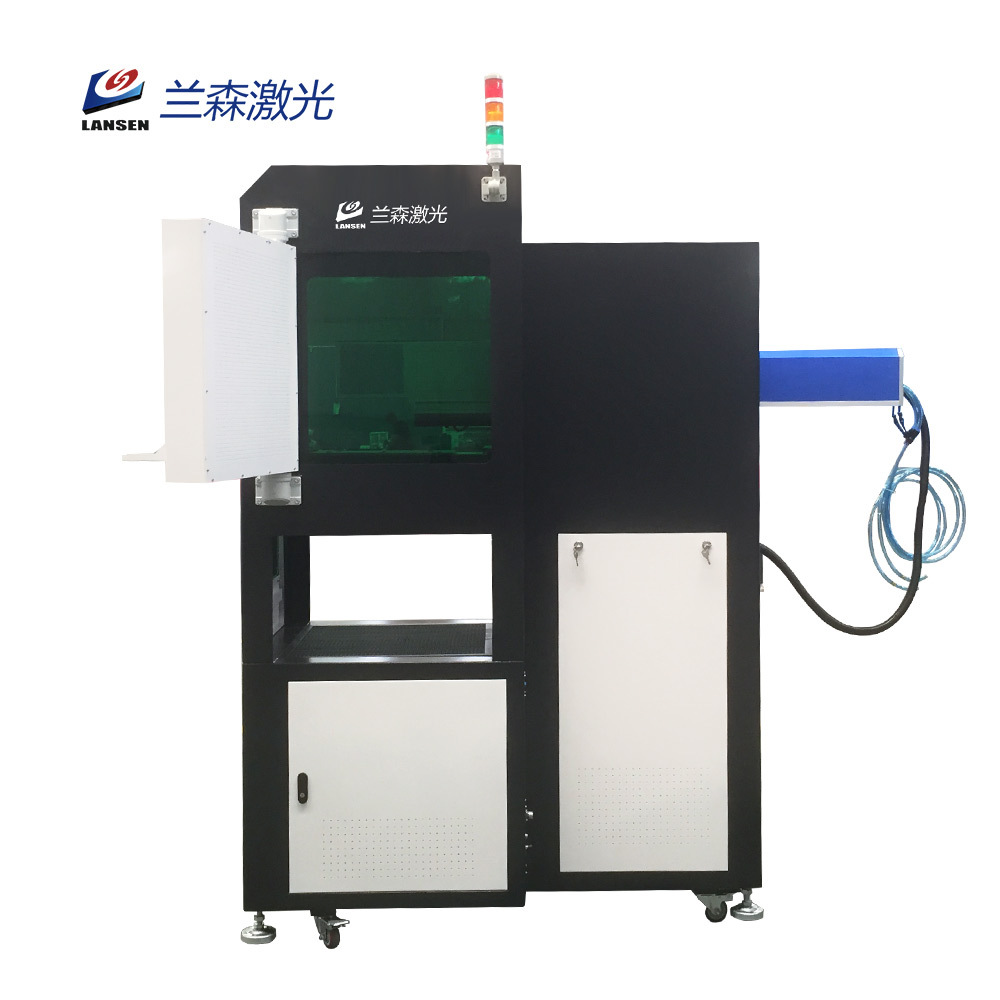

Large format 600*600 dynamic co2 laser marking machine

Name: Large format 600*600 dynamic co2 laser marking machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

Lansen Brand Closed Cabinet Style Large format Co2 Type RF Laser Marking machine is high-tech product, LSC-D60W Dynamic CO2 Laser Marking Machine adopts the technologies of Laser, Optics, Precision Machinery, Electronic technology, PC software technology and Cooling Project.

The machine adopts the 10.64um CO2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities.

The adjustment of laser optical path is droven by two galvanometer motors(XY), and the third axis is droven by pre-scanning gathered system to make a wildly adjustment for focus distance.

GET A QUOTE

Add to Quote List View Quote List

Description
Parameter

The adjustment of laser optical path is droven by two galvanometer motors(XY), and the third axis is droven by pre-scanning gathered system to make a wildly adjustment for focus distance.

Laser power	Metal RFtube(China orimported)
Laser Wavelength	10.6μm
Laser Repetition Frequency	s25KHZ
MakingArea	100mm100mm/200mm200mm/300mm*300mm
MakingDepth	s0.3mm(adjustable accordingto materials
Linear Speed	s7000mm/s
Min.LineWidth	0.1mm
Min.Letter	0.4mm
Repeatable Accuracy	±0.01mm
Gross Power	1.2KW
Electricity Source	220V/50Hz/8A
CoolingSystem	Air Cooling
Suitable for	Nonmetal materials marking or leather cloth quickly cutting
