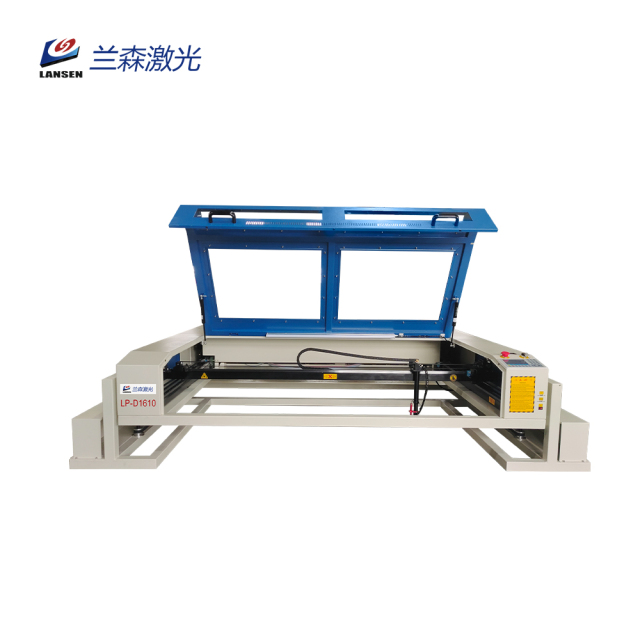

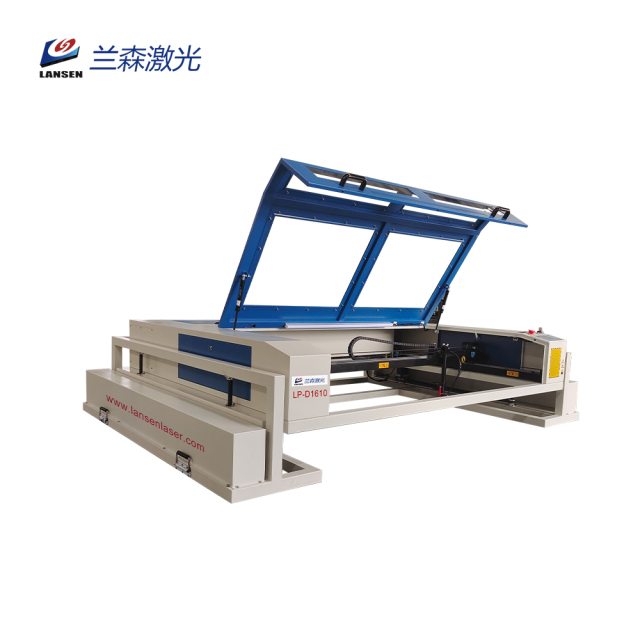

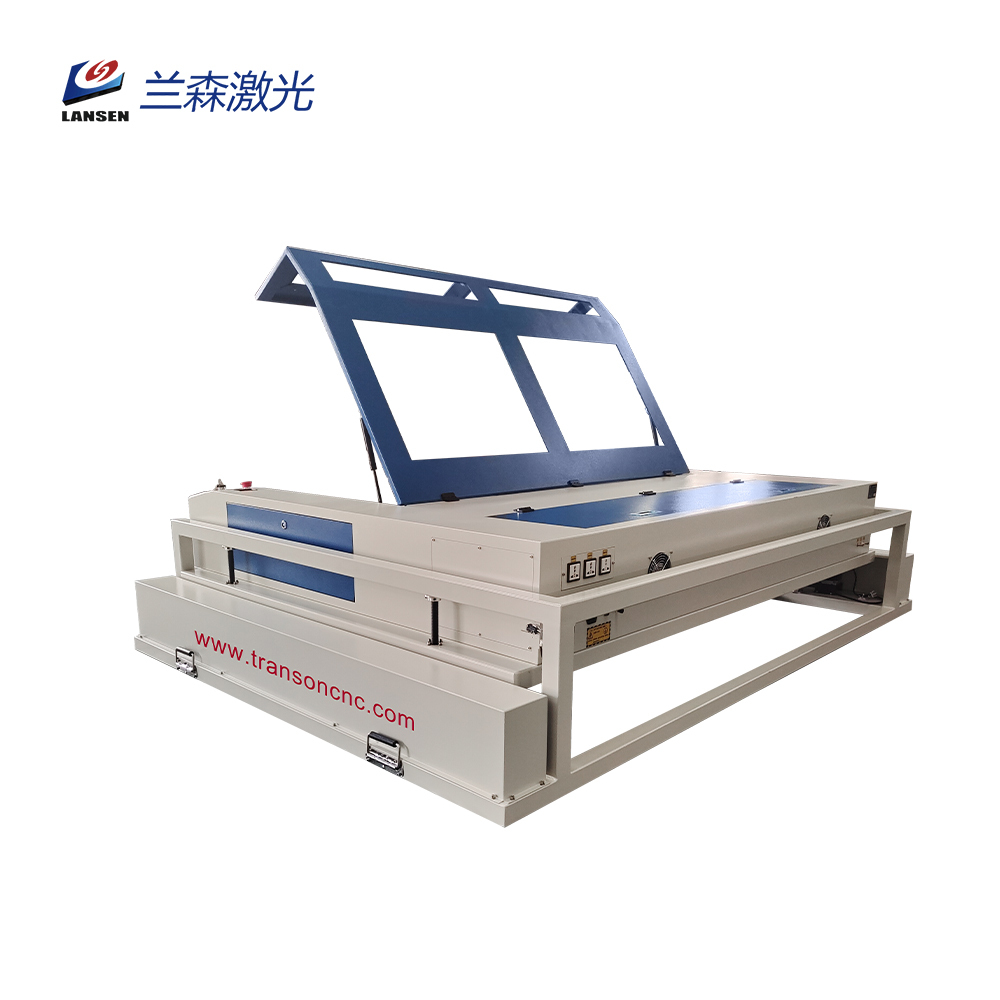

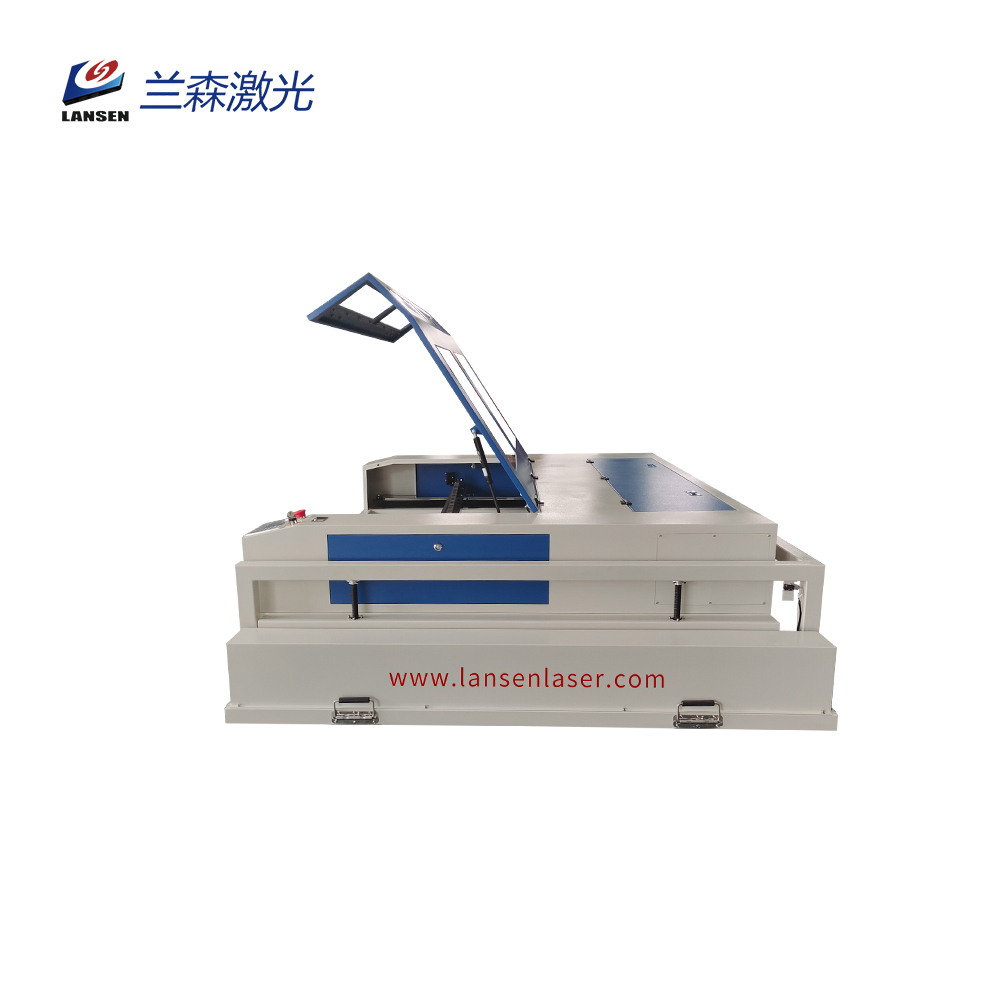

Lansen this stone marble granite engraving machine is mainly design for huge marble stone engraving work. The machine with universal wheels can easy move around to put on any huge marble stone. With the 260mm electric up down distance, can put on almost all thick marbles stones include tombstones. This stone laser engraving machine with working area of 1000x600mm , the working area and up down distance can also customize according requirements. Though this laser engraving machine special suit for marble engraving work, it can also use to engrave cut other nonmetal material like wood, MDF, acrylic,etc. Thus have a widely usage for almost all industry.

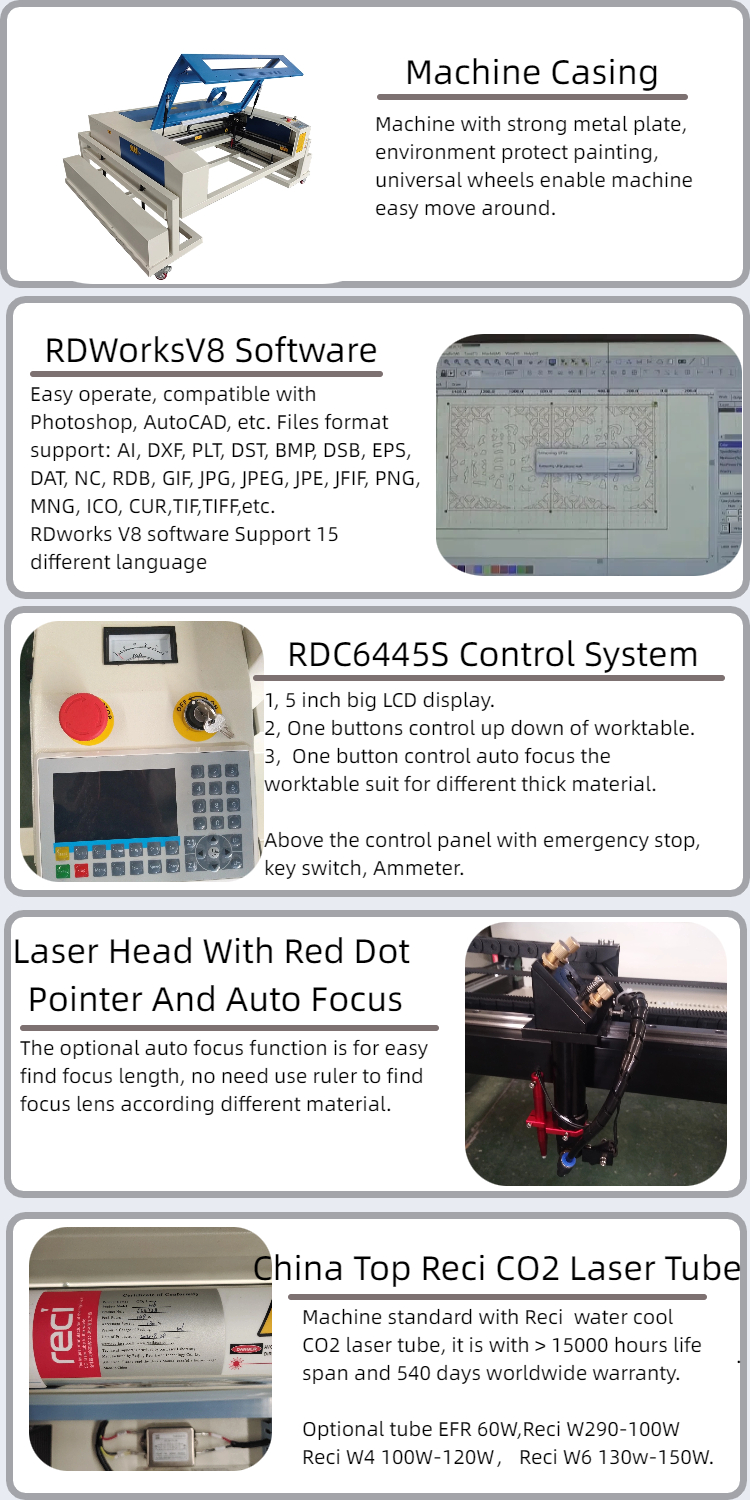

This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries. The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system
|
Laser power |
60w-130w |
|
Cooling mode |
Water cooling |
|
Laser type |
CO2 laser tube |
|
Cutting speed |
0-40000mm/min |
|
Max moving Speed |
70000mm/min |
|
Resetting positioning |
<0.01mm |
|
Min forming character |
1x 1mm |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5-95℃ |
|
Power supply |
110V/220V±10%,50-60HZ |
|
Picture Formats Supported |
AI,DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW, |
|
Software supported |
CorelDraw, AutoCAD,PhotoShop |
|
Driving system |
stepper motor |
