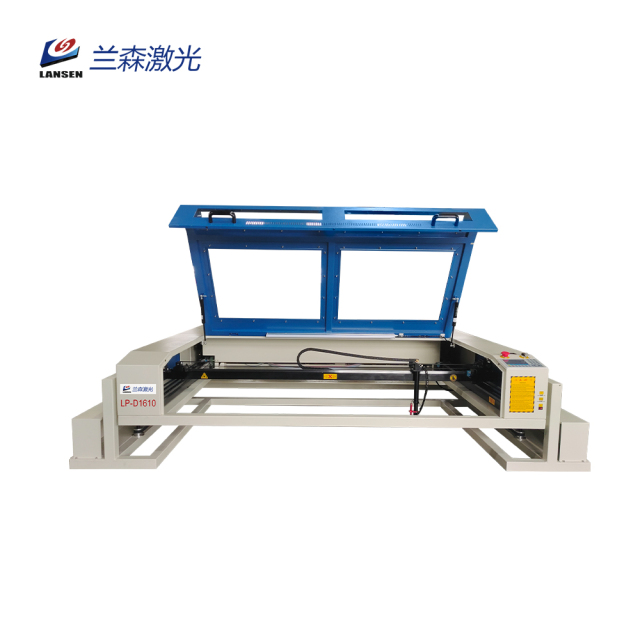

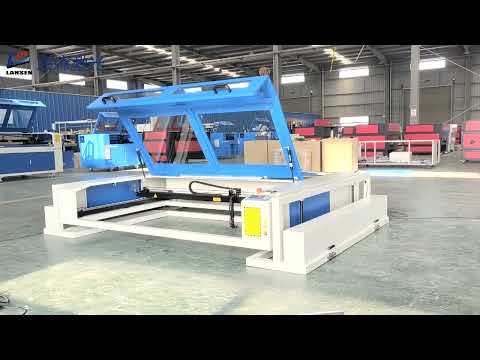

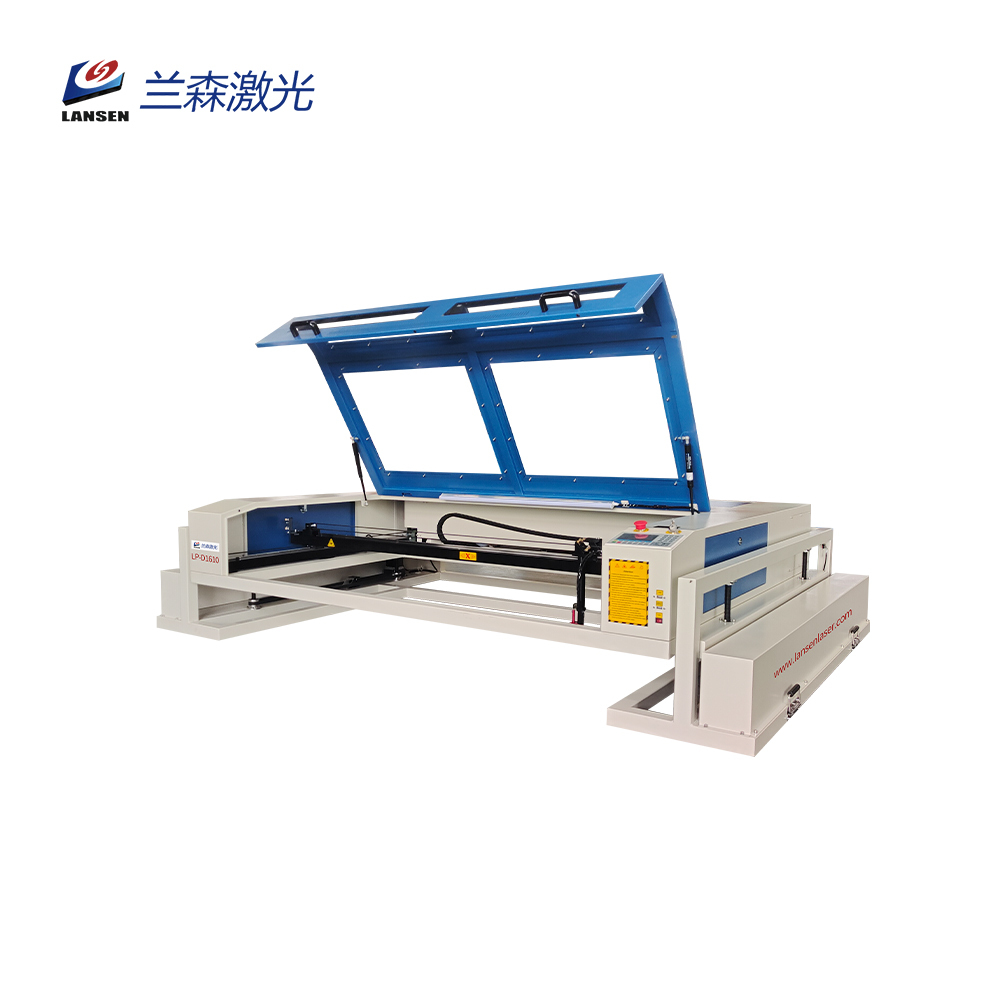

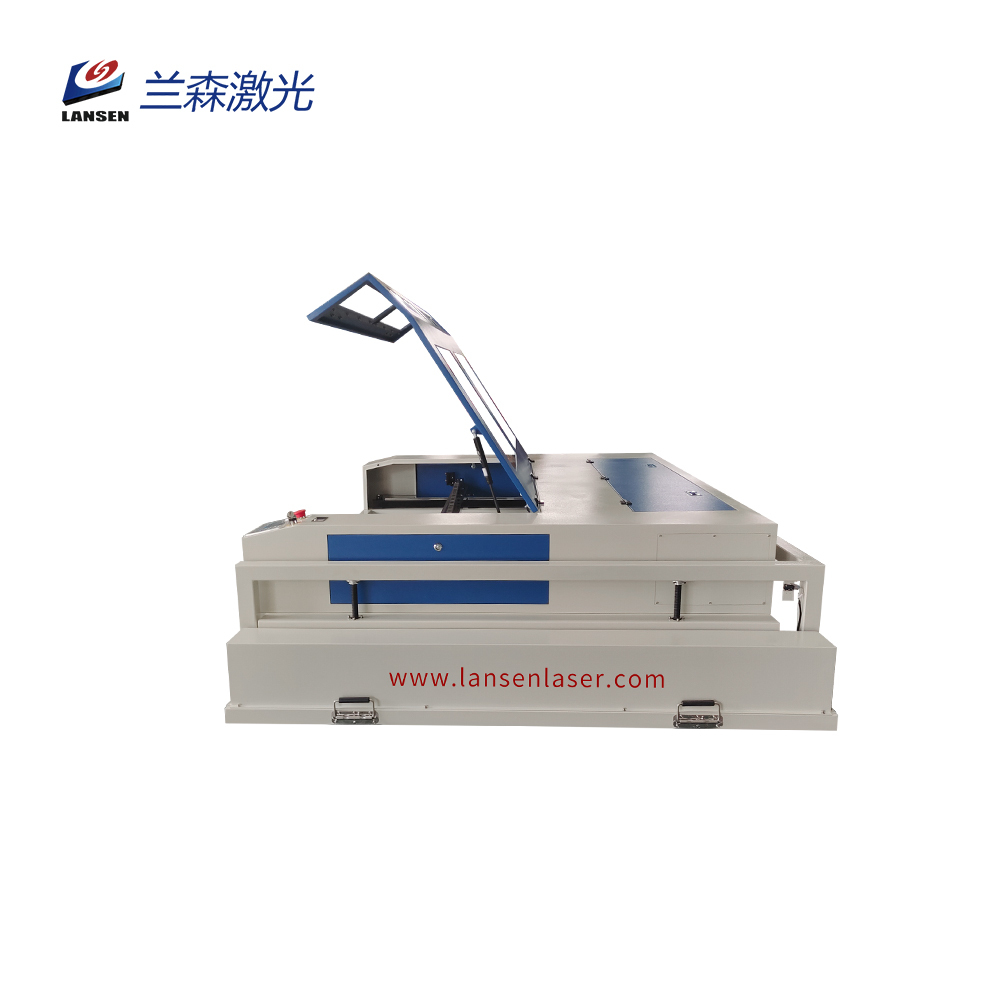

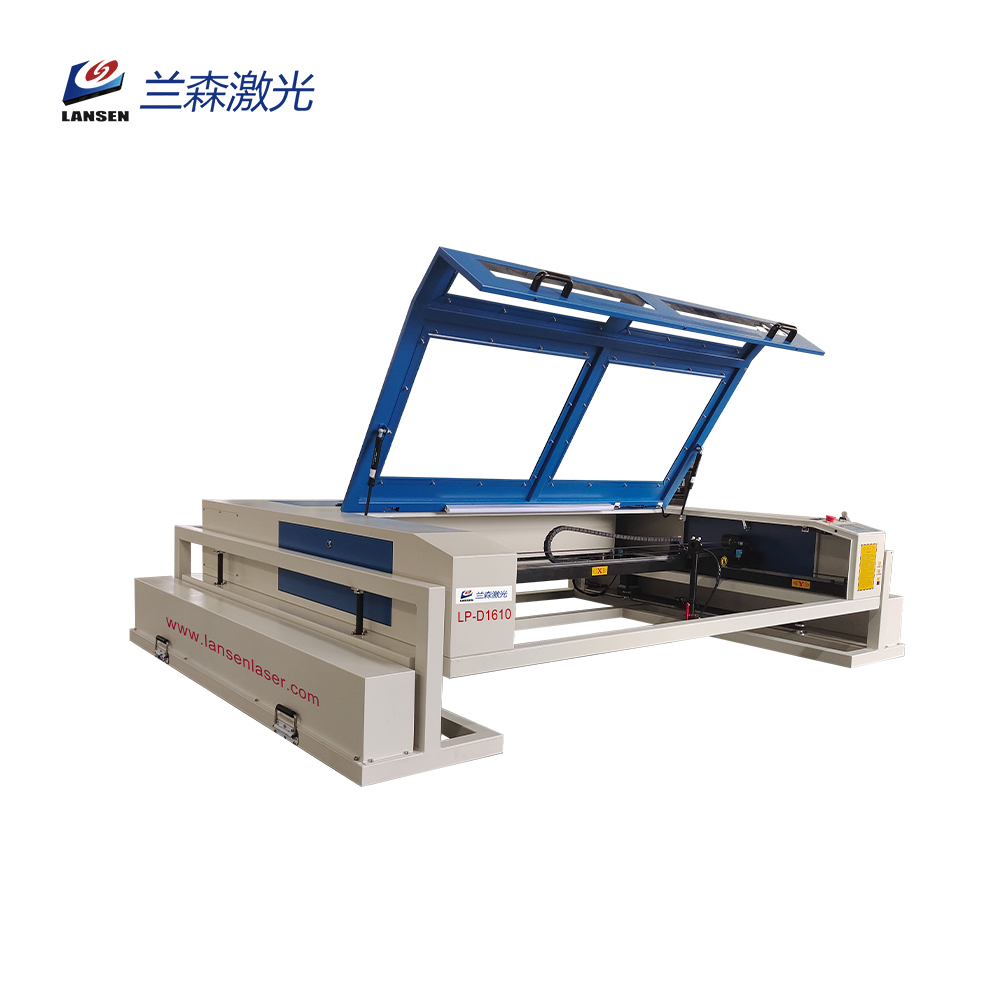

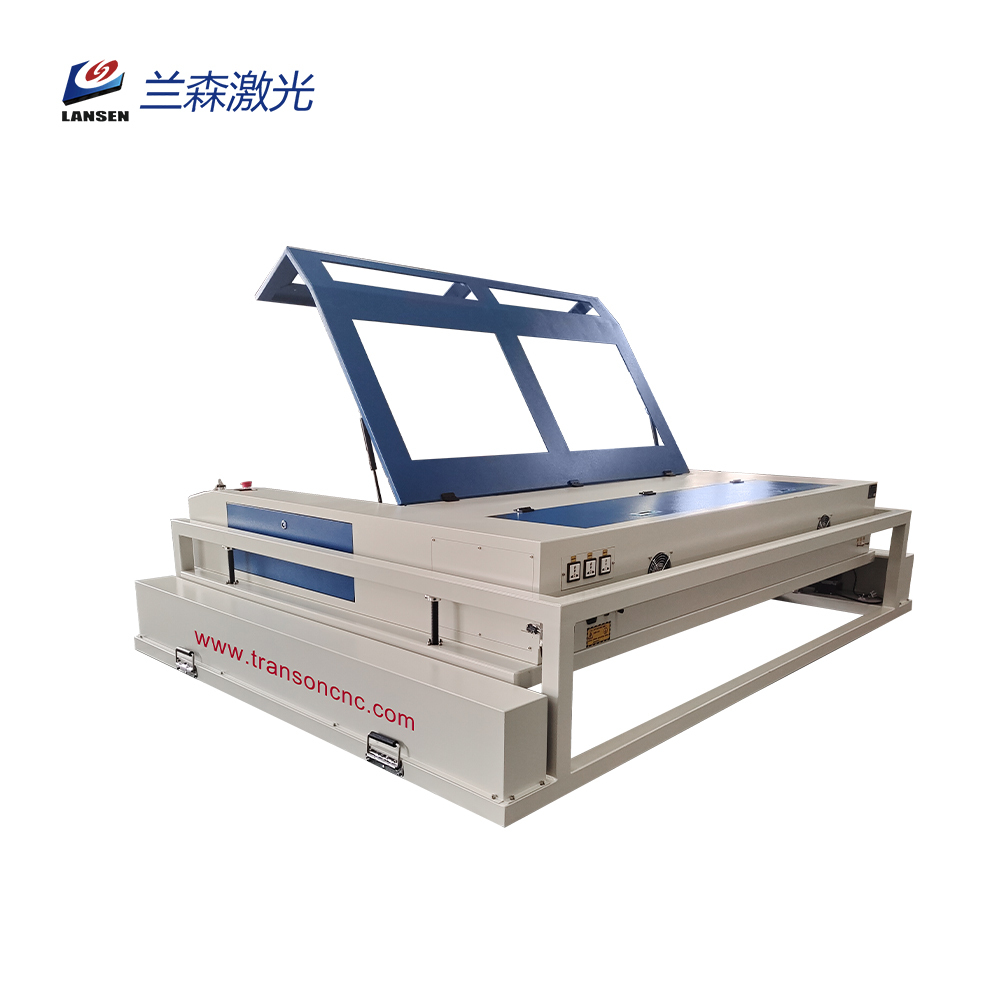

Lansen Granite Laser engraving machine is mainly design for huge granite stone engraving work.
The machine is with fixed wheels and universal wheels whic can easily move around to put on any huge marble stone. With the 220mm electrical up down travel, there can put on thick marbles stones.
This Granite Laser Engraver is with working area of 1300x900mm, we also have1600*1000mm and 1000*600mm work size machine suitable for different size requirements work. It can also engrave or cut other nonmetal material like wood, MDF, acrylic,etc.
Also, to meet client's round job engraving, there can choose the optional part Rotary device with roller to fix the work piece to help to finish the work.
This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries. The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system
|
Laser power |
60w-130w |
|
Cooling mode |
Water cooling |
|
Laser type |
CO2 laser tube |
|
Cutting speed |
0-40000mm/min |
|
Max moving Speed |
70000mm/min |
|
Resetting positioning |
<0.01mm |
|
Min forming character |
1x 1mm |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5-95℃ |
|
Power supply |
110V/220V±10%,50-60HZ |
|
Picture Formats Supported |
AI,DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW, |
|
Software supported |
CorelDraw, AutoCAD,PhotoShop |
|
Driving system |
stepper motor |
