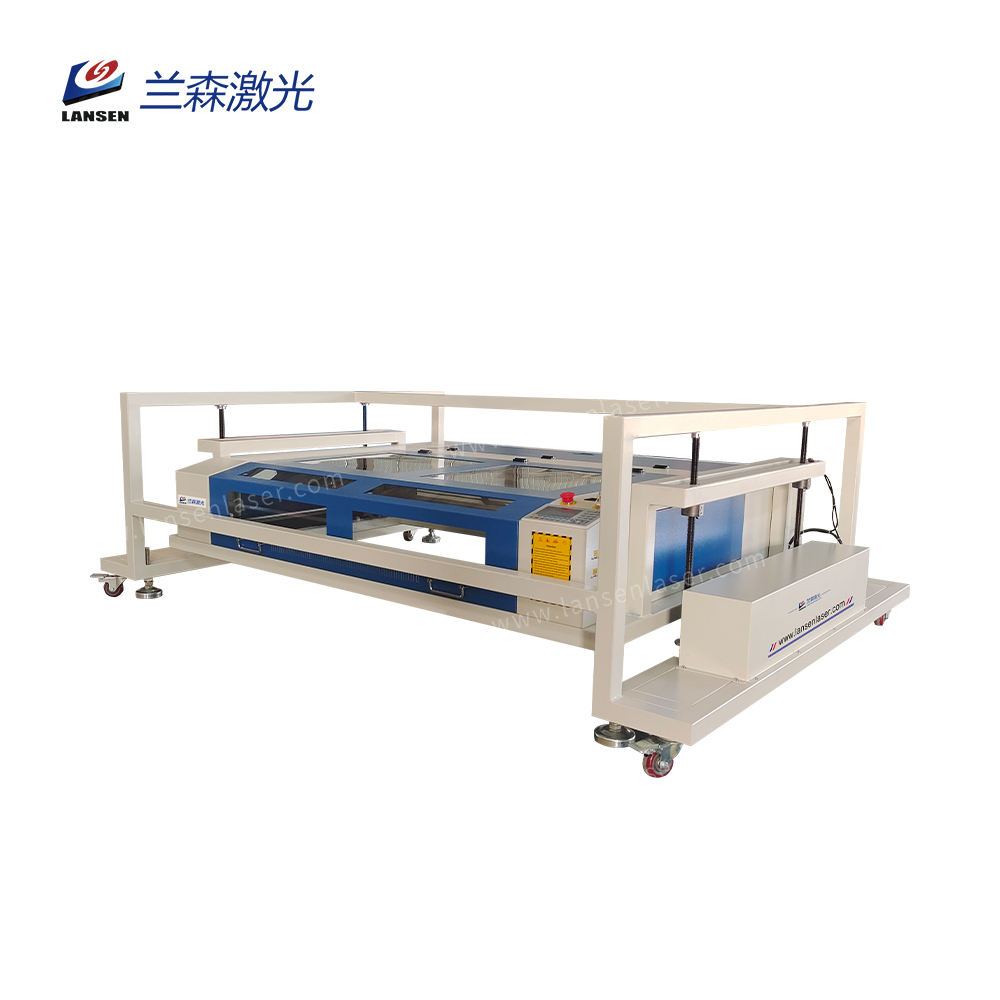

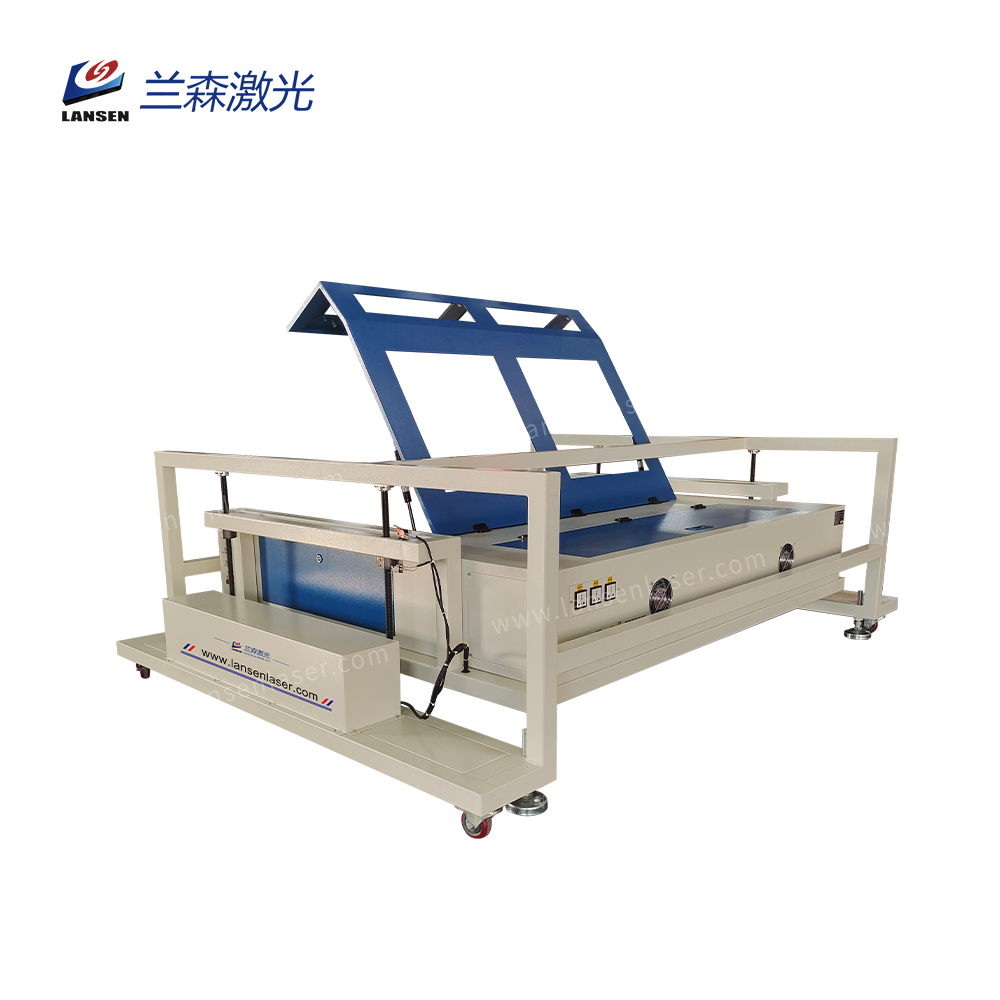

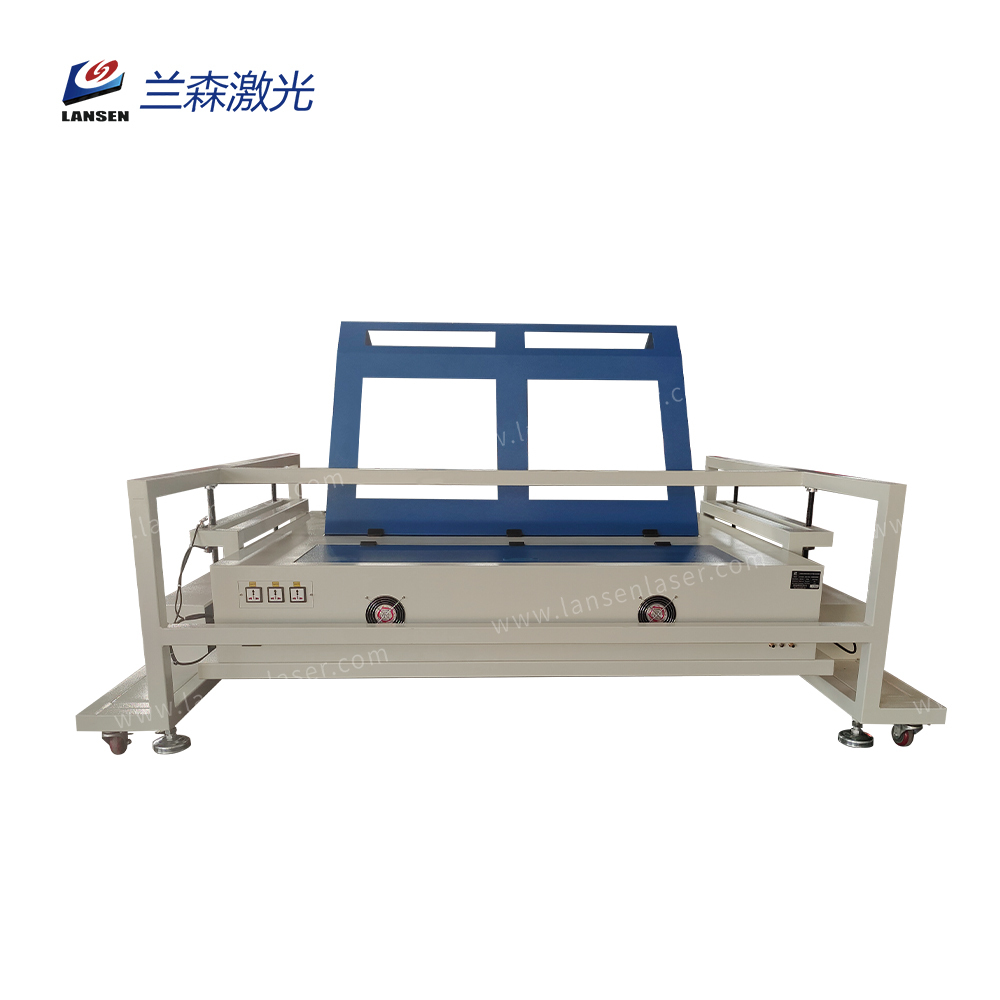

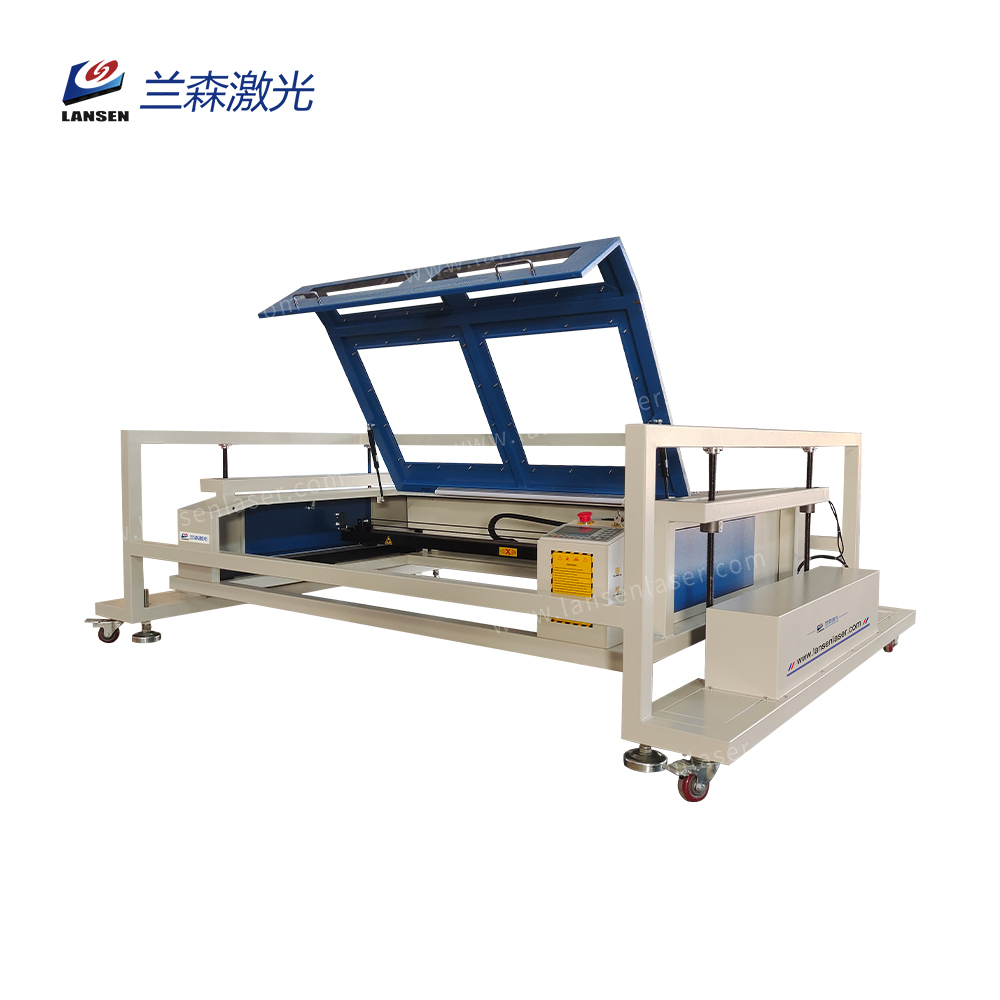

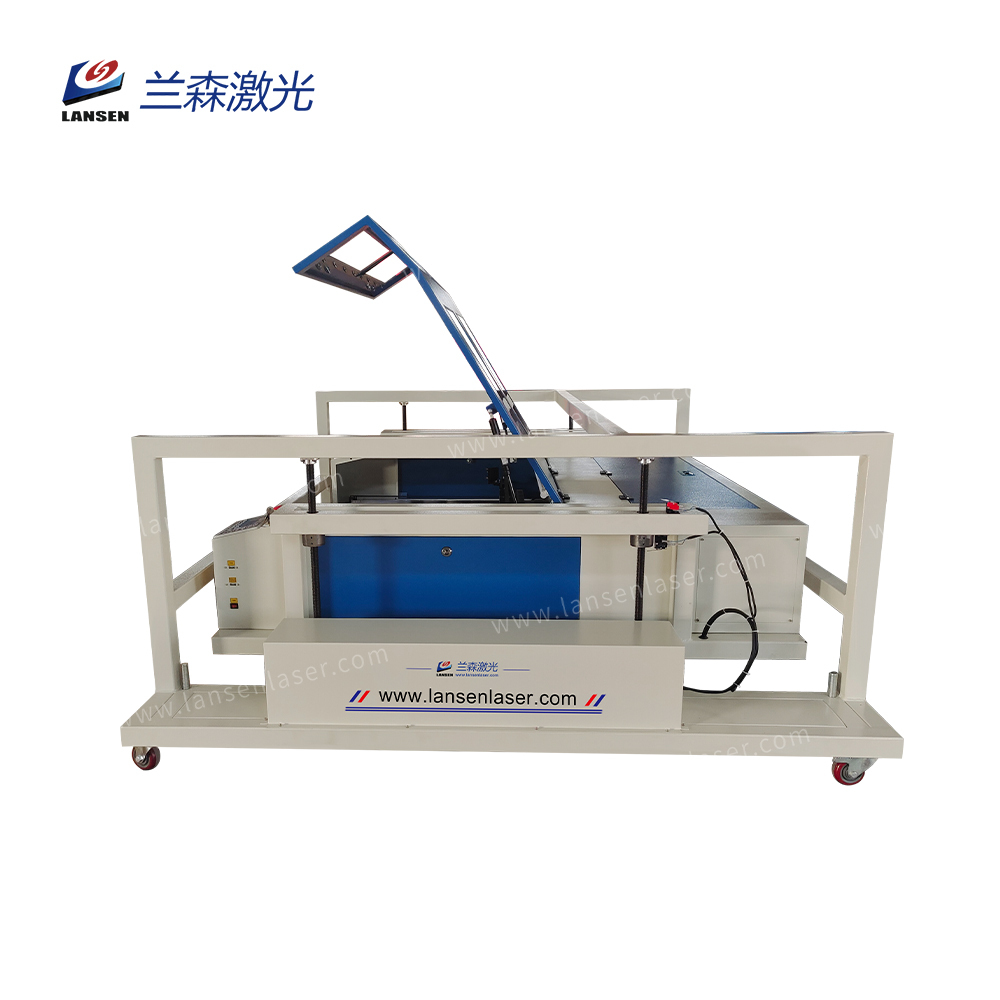

Lansen this stone marble granite engraving machine is mainly design for huge marble stone engraving work. The machine with universal wheels can easy move around to put on any huge marble stone. With the 400mm electric up down distance, can put on almost all thick marbles stones include tombstones. This stone laser engraving machine with working area of 1300x900mm (51.18*35.43 inch), the working area and up down distance can also customize according requirements. Though this laser engraving machine special suit for marble engraving work, it can also use to engrave cut other nonmetal material like wood, MDF, acrylic,etc. Thus have a widely usage for almost all industry.
Feature:
* Newly designed motorized up and down structure.
* Flexible upper style structure.
* Universal wheels convenient to move.
* Fixed stands can adjust the level hight when ground not in level, and stable when working.
* Enforced frame structure makes the machine very strong.
* Downwards structure allows the machine put onto the work piece to engrave directly.
* Frame structure allows the work piece get through, can move the machine upon work piece to work.
* Transparent toughened glass let you watch the working state easily.
* Co2 laser type allows all the nonmetal engrave work.
* Linear guide rail provide high precision to the work
* Ruida 6445 advanced control system
* Outside assistant device water chiller, air pump, software ensure the machine work correctly.
Applicable materials:
Marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries:
Advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, paper industry
This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries. The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system
|
Laser power |
60w-130w |
|
Cooling mode |
Water cooling |
|
Laser type |
CO2 laser tube |
|
Cutting speed |
0-40000mm/min |
|
Max moving Speed |
70000mm/min |
|
Resetting positioning |
<0.01mm |
|
Min forming character |
1x 1mm |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5-95℃ |
|
Power supply |
110V/220V±10%,50-60HZ |
|
Picture Formats Supported |
AI,DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW, |
|
Software supported |
CorelDraw, AutoCAD,PhotoShop |
|
Driving system |
stepper motor |
