Name: LP-F1325CCD Vision localization Co2 laser engraving cutting machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

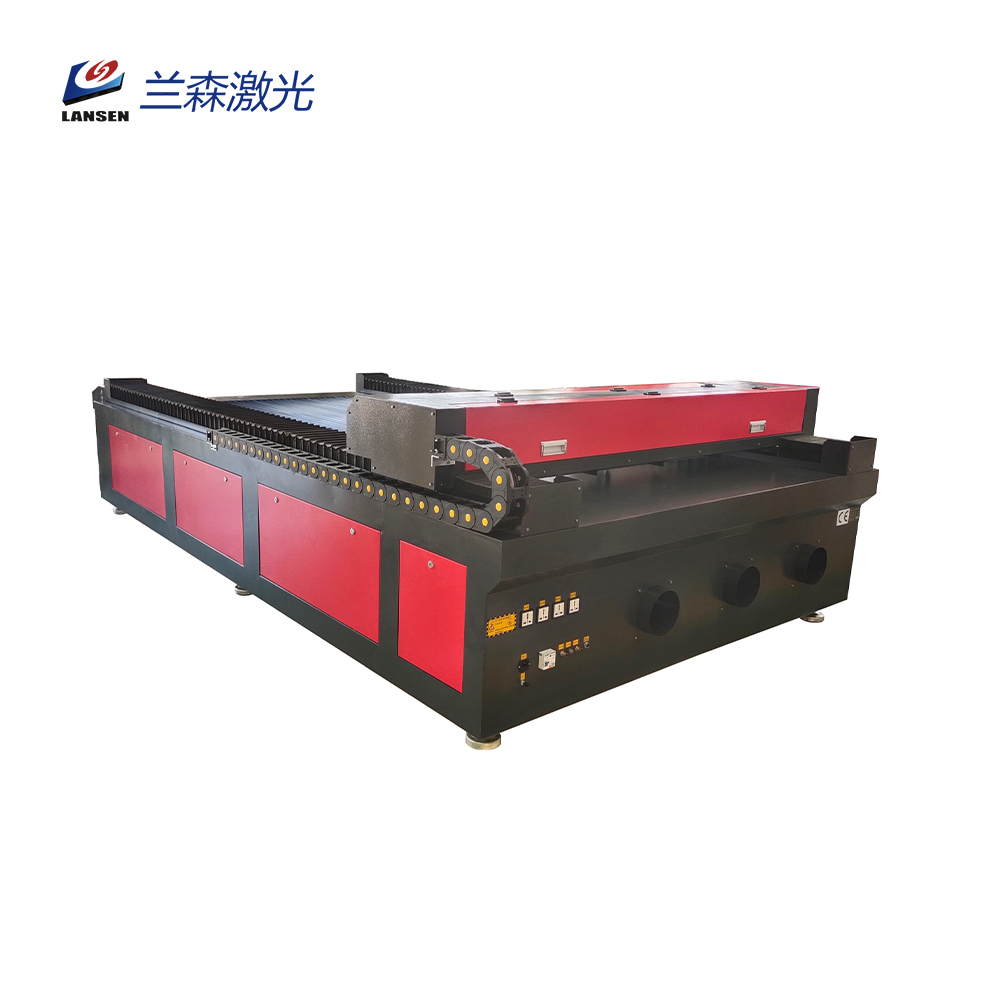

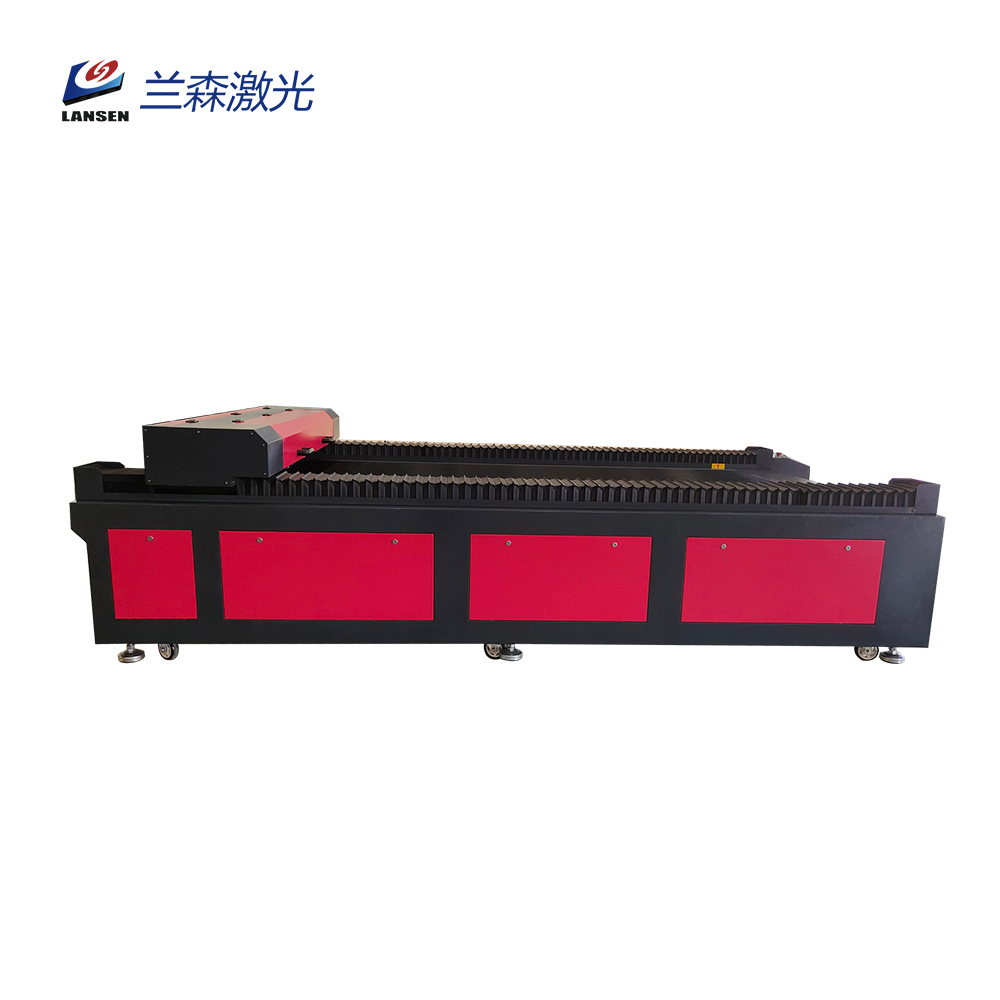

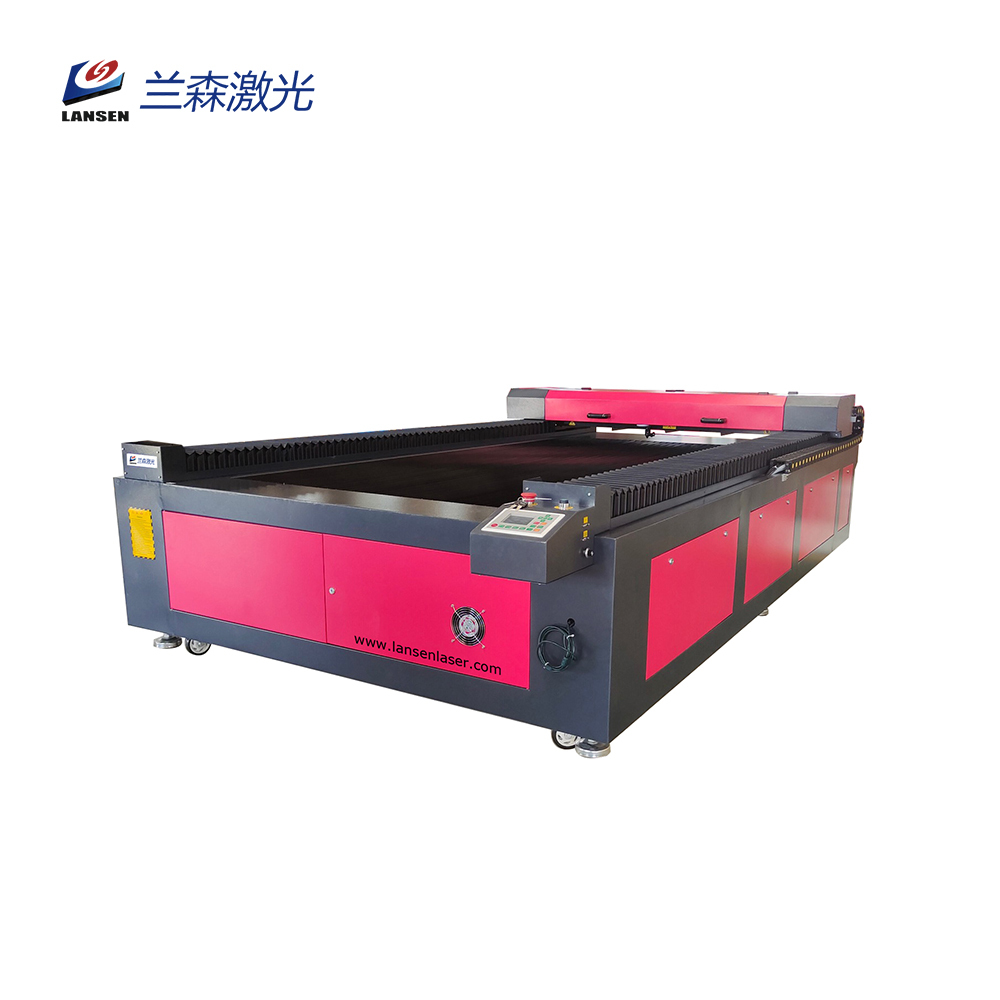

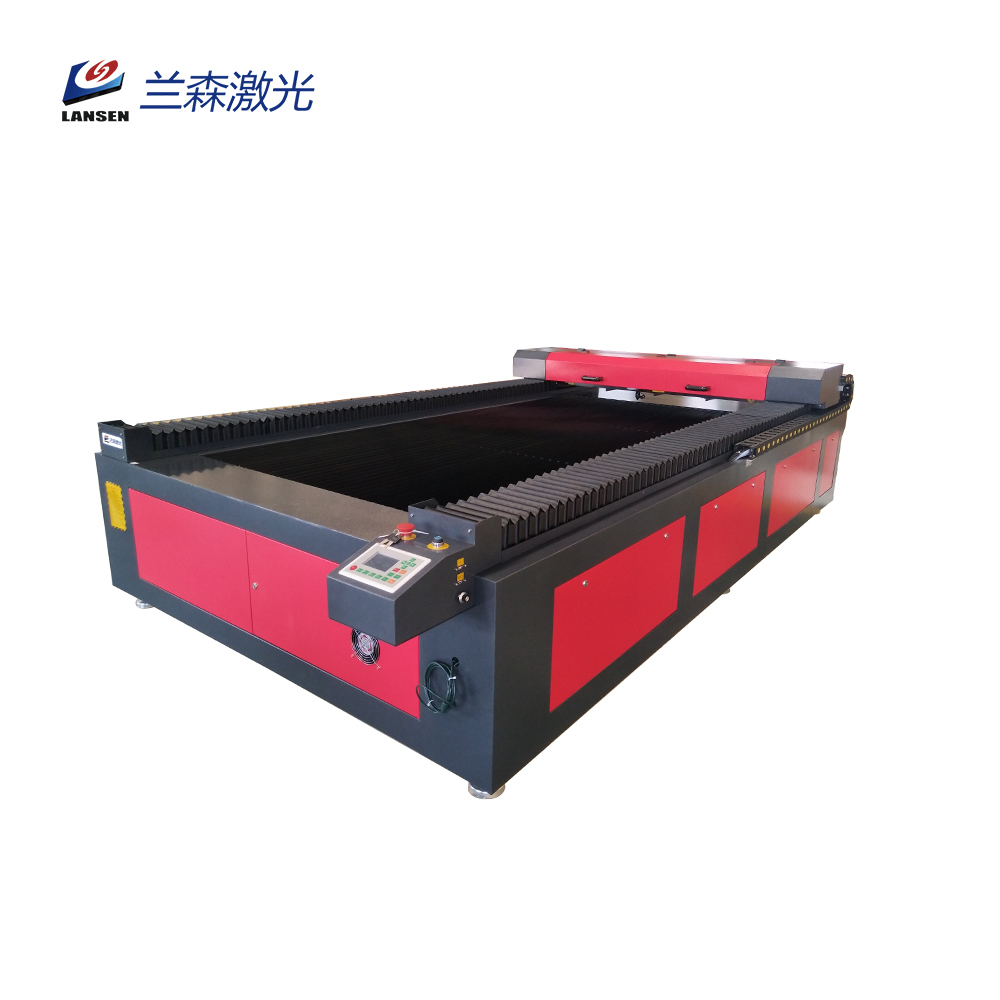

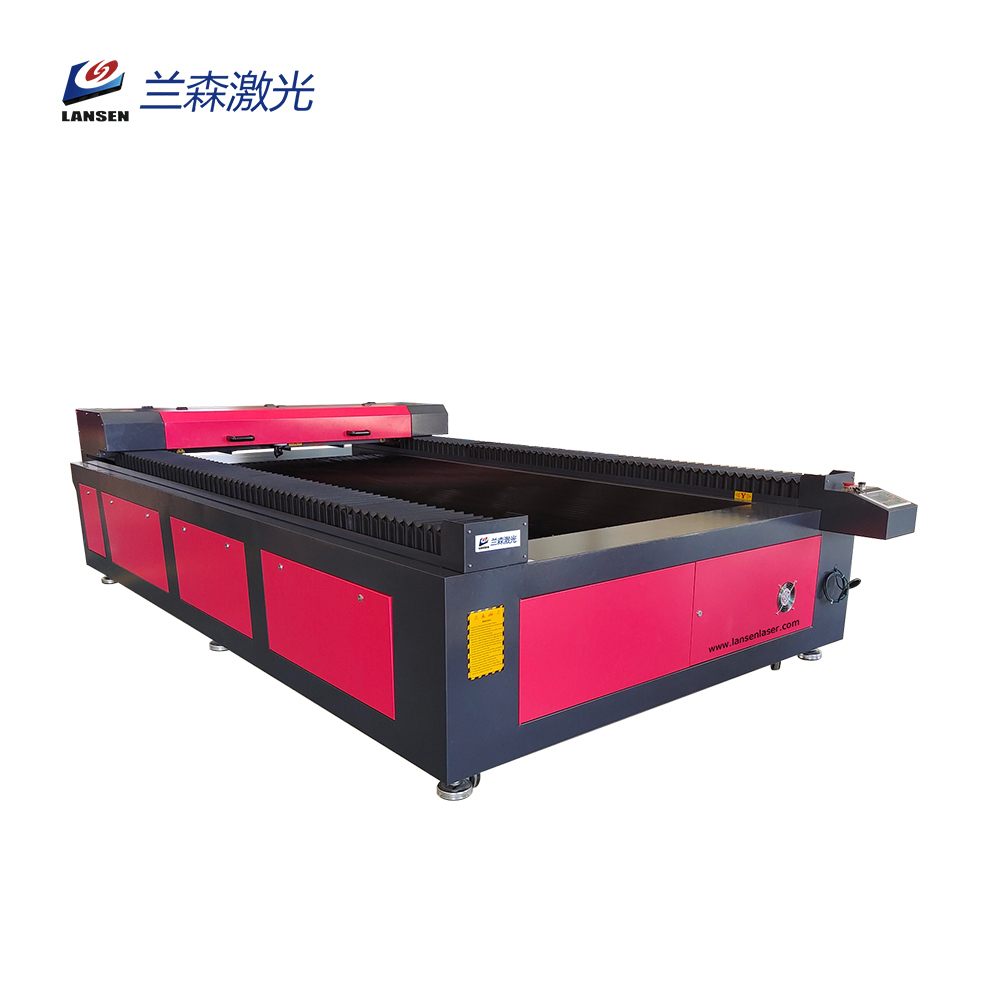

LP-F1325CCD Vision localization Co2 laser engraving cutting machine

This LP-F1325-CCD CO2 laser engraving cutting machine is Lansen new design high safety CO2 laser cutter engraver with CCD camera. It can be applied to almost all nonmetal materials like wood, acrylic, leather, fabric, and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency.

The CCD camera can scan the worktable to computer, then users can cut according the edge, it suit for printed label cut, badge cut, logo cut.

Work Size

1300*2500mm

Power:

90W

100W

130W

150W

180W

Description
Parameter

CCD Laser Cutting machine Adopts the combination of automatic camera locating system and laser head, with the assistance of computer software, label cutting machine can compensate automatically to pinpoint deformation of the fabric, it ensures the accuracy of cutting.

The application of camera systems, marking laser technology, automation technology, shortet cutting path of human-based software design, saves time and increases efficiency for user.

Feature:
1, CO2 laser engraving cutting machine of Wood, MDF, Acrylic, Cloth, Leather, Double color sheet, Other nonmetal materials.
2, Fast Speed, Smooth Cutting Effect, High Efficiency.
3, CCD camera for easy cut printed logo, badge, pattern from the edge.
4, DC24V high safety design, safe enough for operator.

Model LP-F1325CCD
Working area	1300mmx2500mm
Laser power	90w-180w
Cooling mode	Water cooling
Laser type	CO2 laser tube
Cutting speed	0-40000mm/min
Max moving Speed	70000mm/min
Resetting positioning	<0.01mm
Min forming character	1x 1mm
Operating temperature	0 - 45°C
Operating humidity	5-95℃
Power supply	110V/220V±10%,50-60HZ
Picture Formats Supported	AI, DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE, JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG, J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,
Software supported	CorelDraw, AutoCAD,PhotoShop
Driving system	stepper motor
Control system	Ruida controlling system
Data transfer interface	USB flash disk / directly from computer
Laser output control	1-100% software setting

This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries. The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system

Laser power	60w-130w
Cooling mode	Water cooling
Laser type	CO2 laser tube
Cutting speed	0-40000mm/min
Max moving Speed	70000mm/min
Resetting positioning	<0.01mm
Min forming character	1x 1mm
Operating temperature	0 - 45°C
Operating humidity	5-95℃
Power supply	110V/220V±10%,50-60HZ
Picture Formats Supported	AI,DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,
Software supported	CorelDraw, AutoCAD,PhotoShop
Driving system	stepper motor
