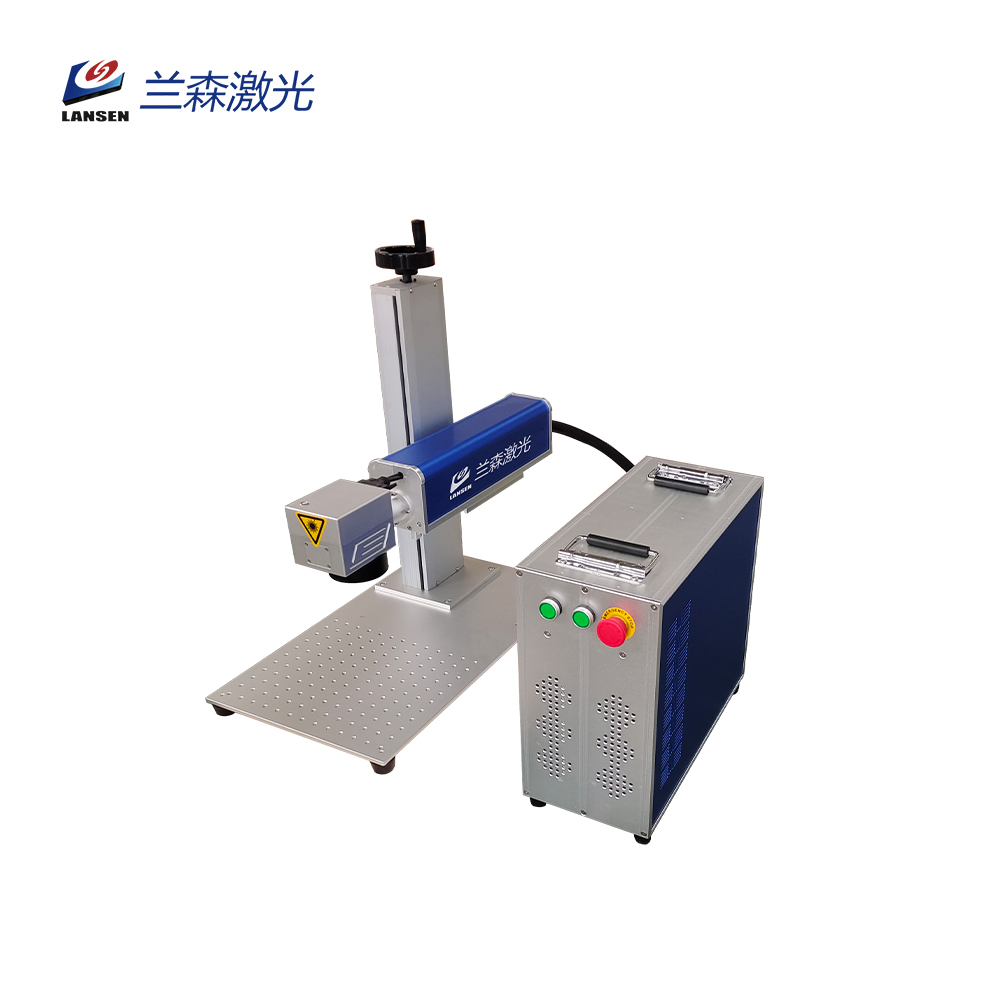

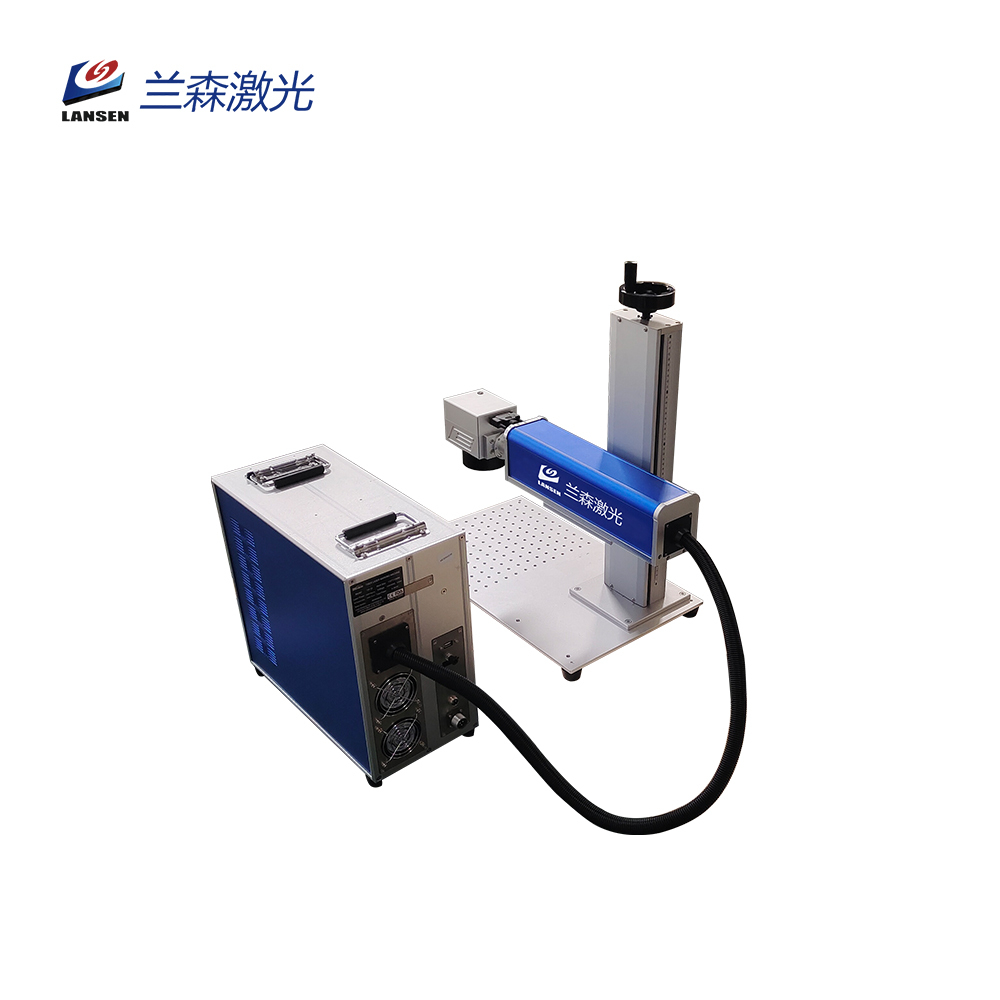

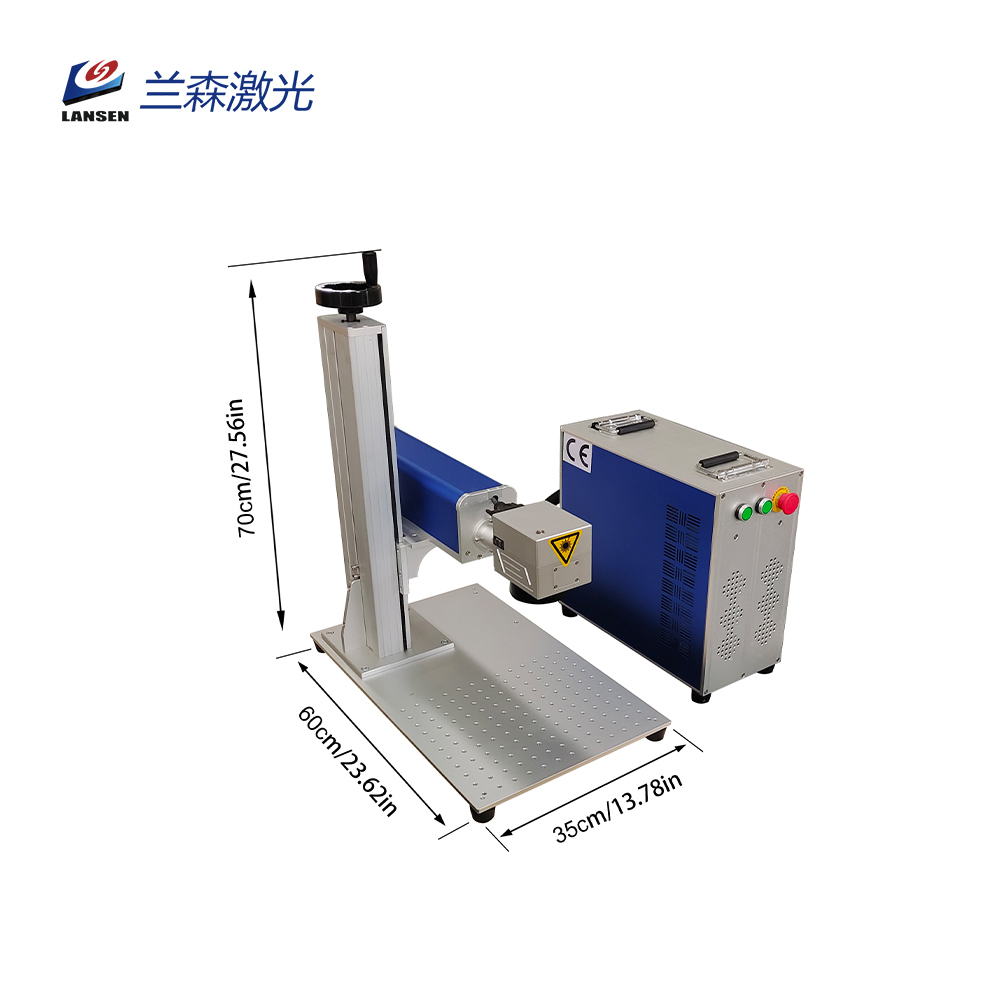

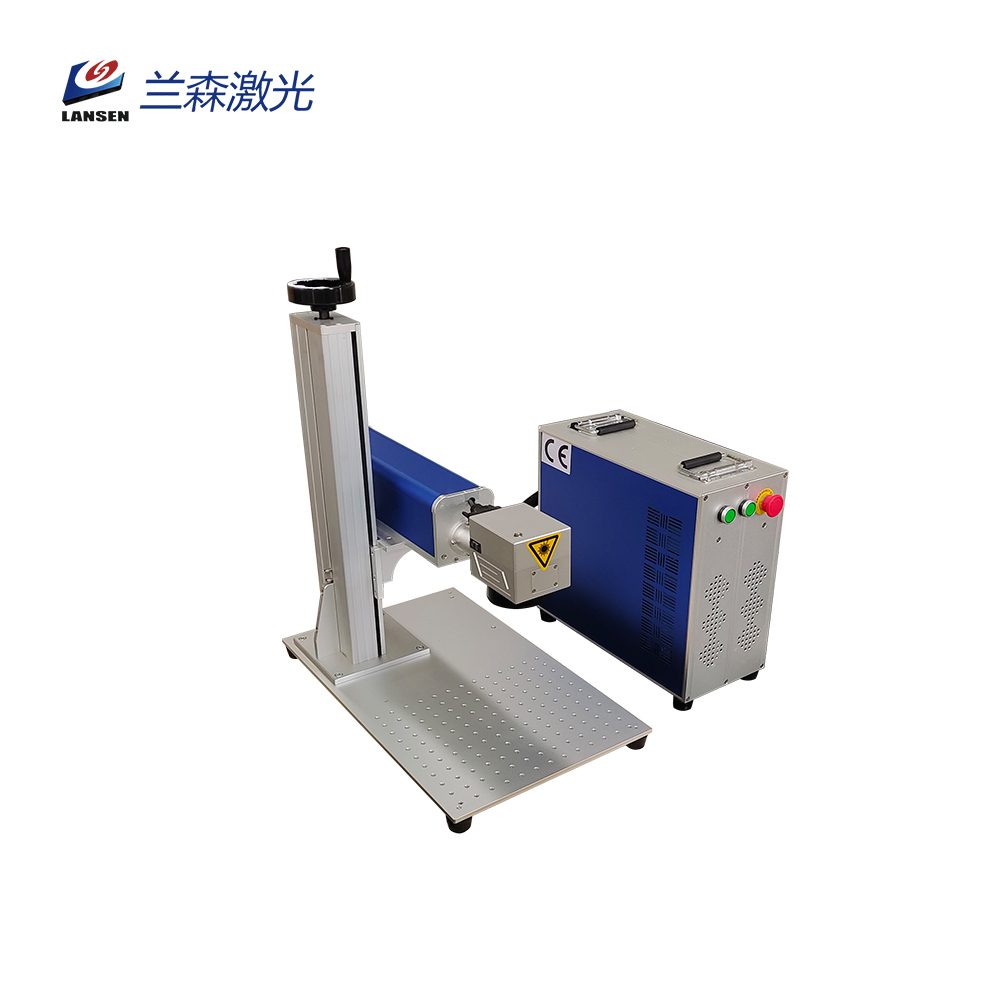

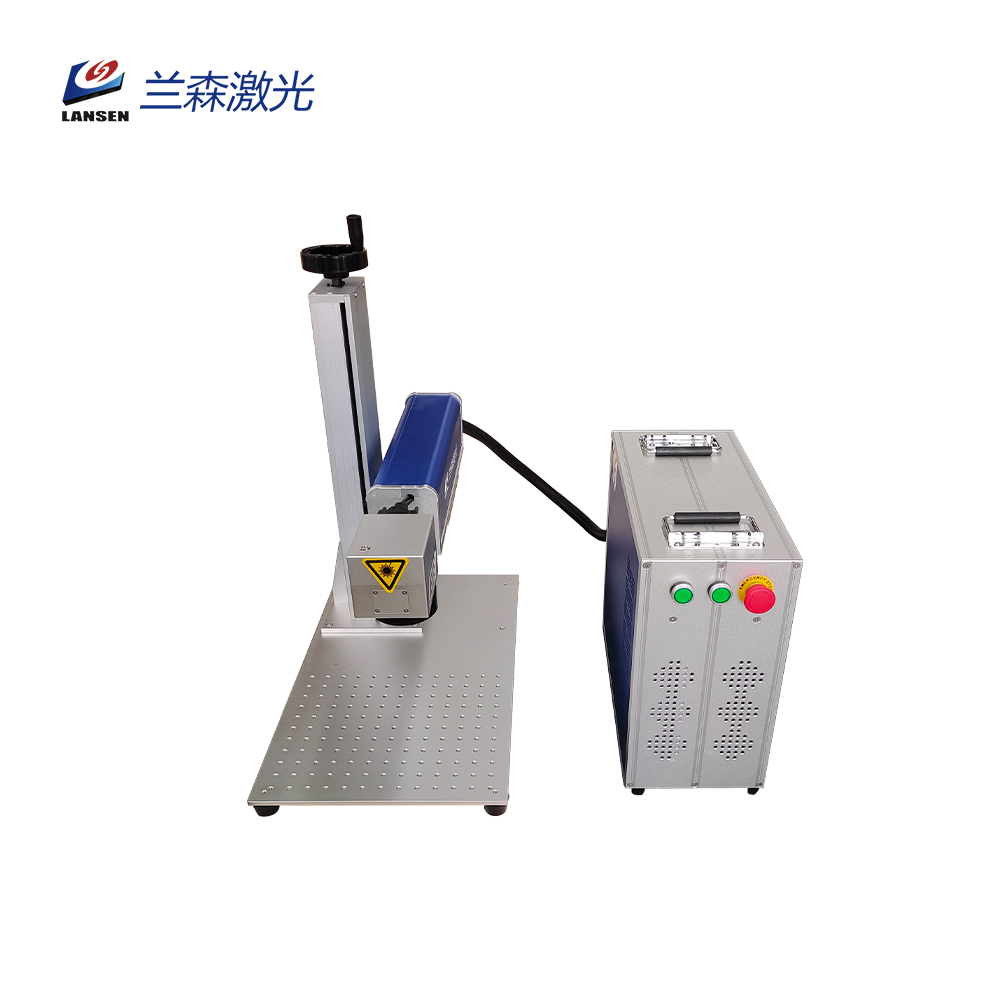

Mopa Fiber Laser Marking machine
The laser beam of color laser marking machine is fine and thin. Color marking can provide the better marking effect among all the laser machines. Especially good at smallest character。 marking on metal. When do color marking, only stainless steel material is acceptable.
The Mopa laser marking machine is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
|
Type |
MINI |
|
Computer |
Without |
|
Central emission wavelength |
1064 nm |
|
Full Power Repetition Range |
40~2000 |
|
Normal Average Output Power |
20W/30W/60W/100W/120W |
|
Pulse Duration |
1~250ns |
|
Operating voltage |
220V/110V |
|
Max.Power consumption |
600W |
|
Scanning Speed |
0-7000mm/s |
|
Marking Speed |
0-5000mm/s |
|
Marking size |
110mm×110mm(F-theta 160) |
|
Spot size |
≤40 micron(F-theta 160 |
|
Cooling unit |
Air cooled |
|
Pilot laser |
650nm diode laser,visible red light for marking |
|
Continuous working time |
≥16h |
|
Humidity |
45~85%(no condensation) |
|
Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|
Optional |
Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
