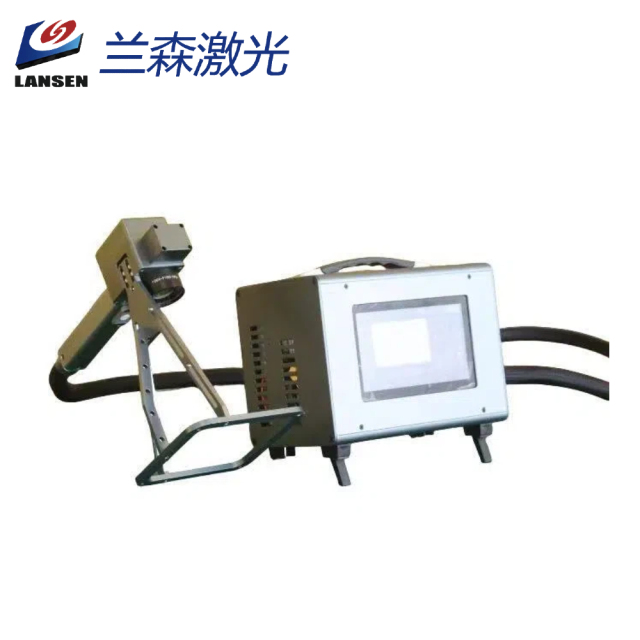

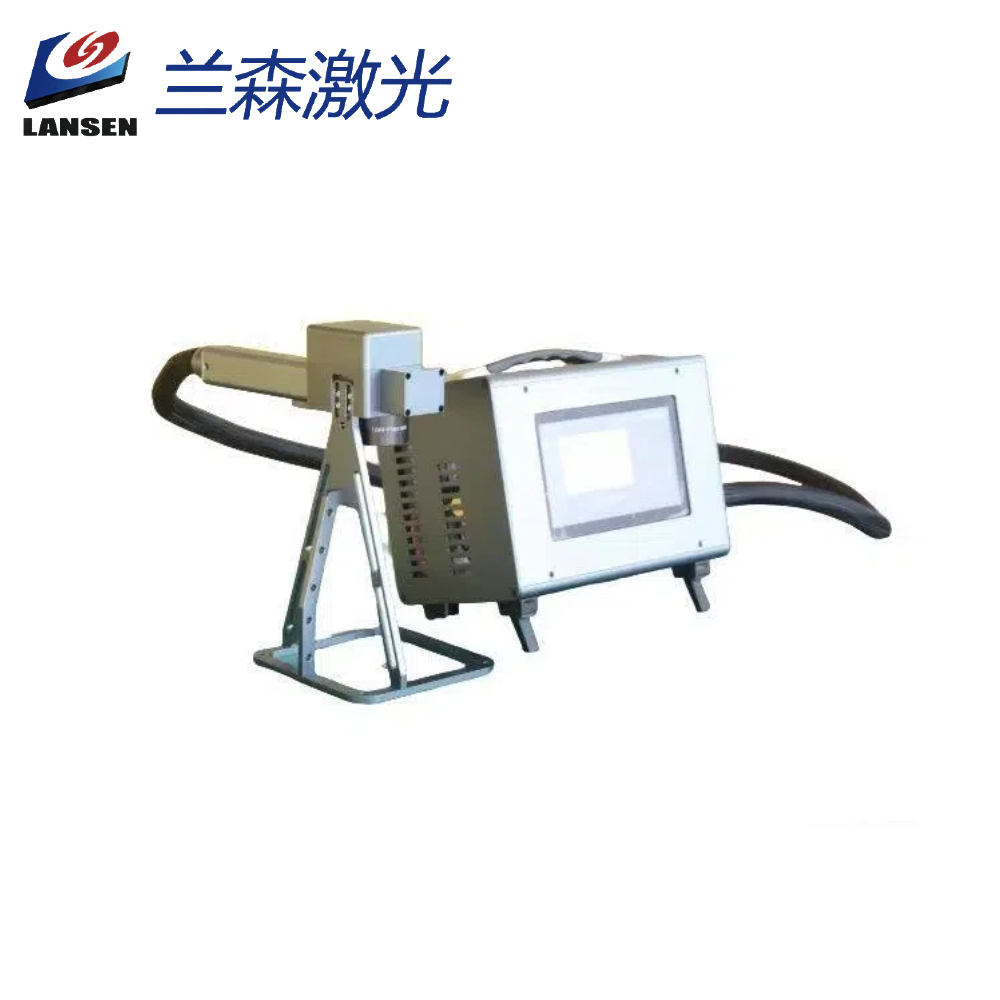

LSM30F Mini Handheld Portable Fiber Laser Marking Machine

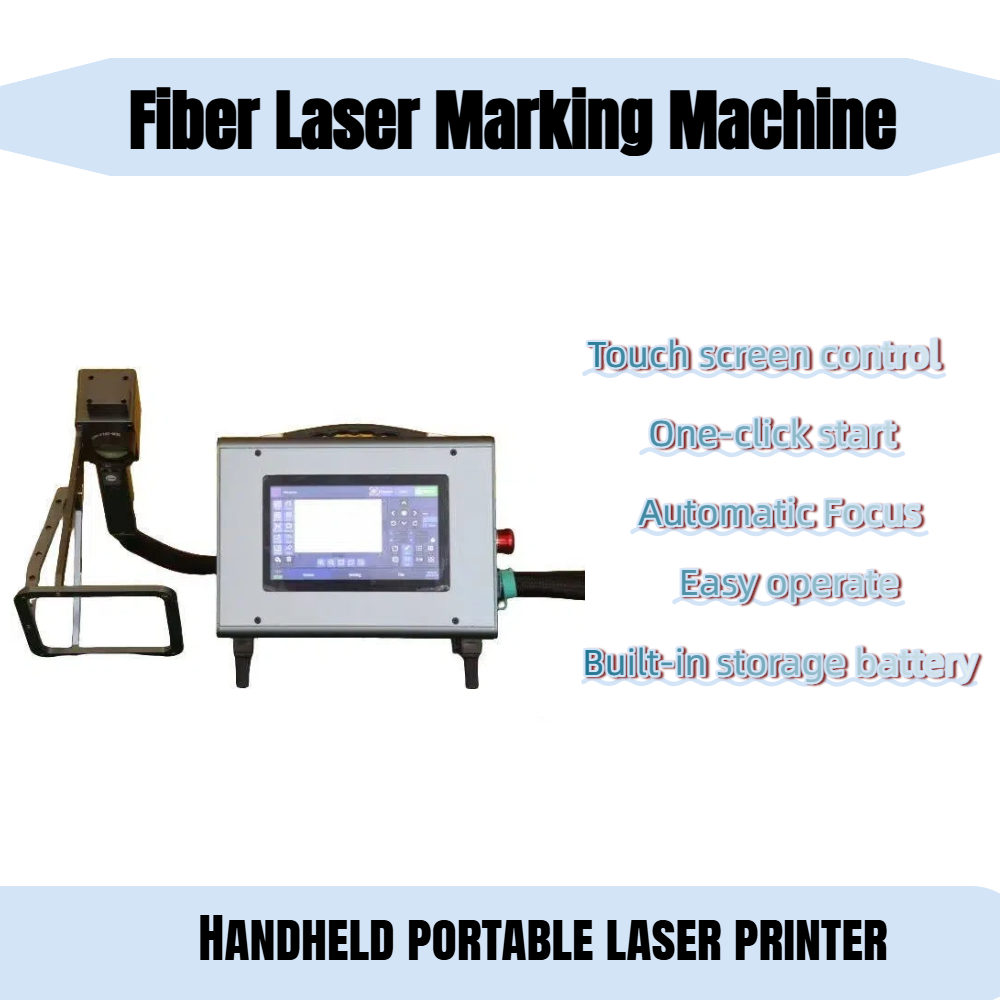

This lightweight, mini handheld marking machine features an automatic focusing bracket, one-button operation, and is easy to use. Its lightweight design allows for easy portability and can be lifted with one hand. The machine has a built-in rechargeable battery, making it independent of a power source and suitable for a wide range of applications.
GET A QUOTE
Add to Quote List View Quote List
  • LSM30F Mini Handheld Portable Fiber Laser Marking Machine
  • LSM30F Mini Handheld Portable Fiber Laser Marking Machine
  • LSM30F Mini Handheld Portable Fiber Laser Marking Machine
  • LSM30F Mini Handheld Portable Fiber Laser Marking Machine
  • LSM30F Mini Handheld Portable Fiber Laser Marking Machine

Description


FEATURE

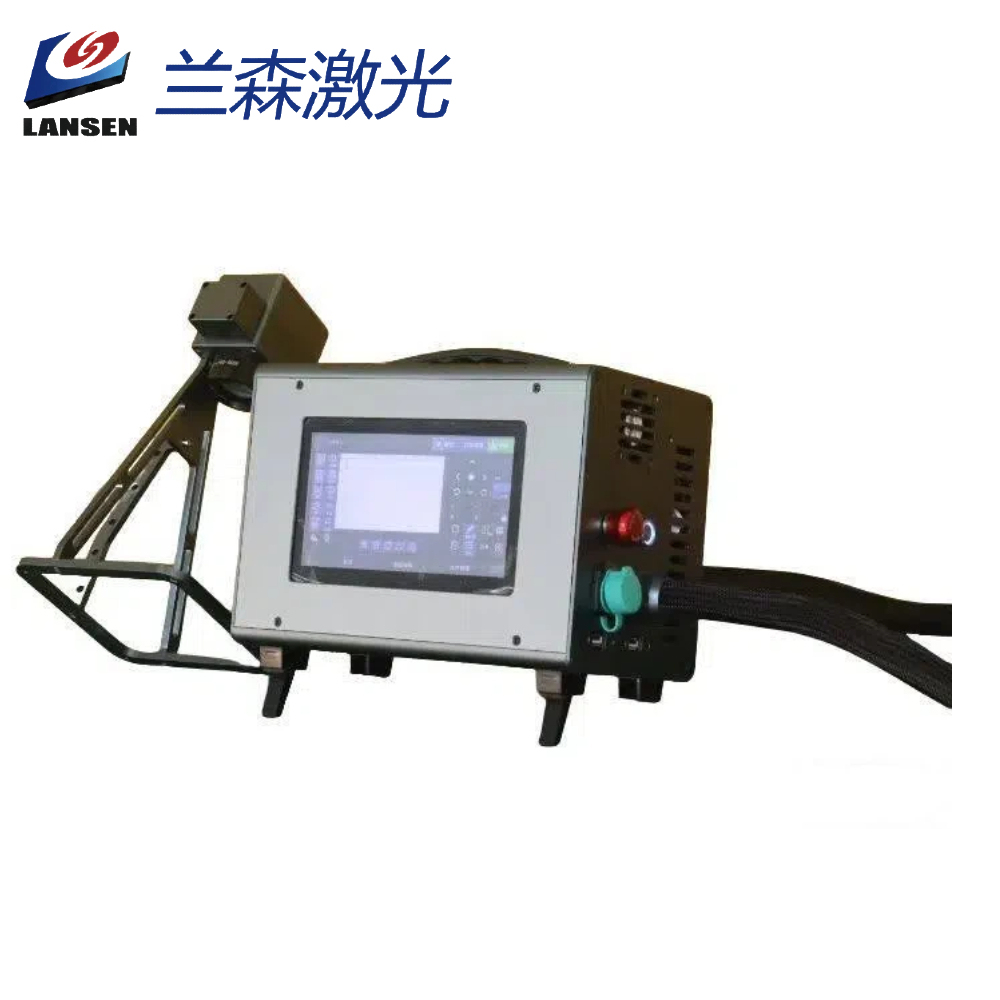

  1. The equipment has the characteristics of quick start and easy operation. The system is smooth, the operation interface is simple, and the touch screen operation is possible.

    2. The focal length fixed focal length cover is adopted, and there is no need to manually adjust the focal length, which greatly improves the work efficiency.

    3. Energy saving settings.
    The machine enters the standby state after 10 seconds of no operation, and then presses the light-emitting button of the handle to power on remotely. There is no need to click the power-on button on the screen separately, which makes the operation more convenient and prolongs the
    service life of the machine.

    4. Solve the problem of not working without power supply.
    The built-in 24V12AH lithium battery can work normally under complex conditions, with a full battery life of 6-8 hours.

    5. The product is light in weight and small in size,which is easy to carry.

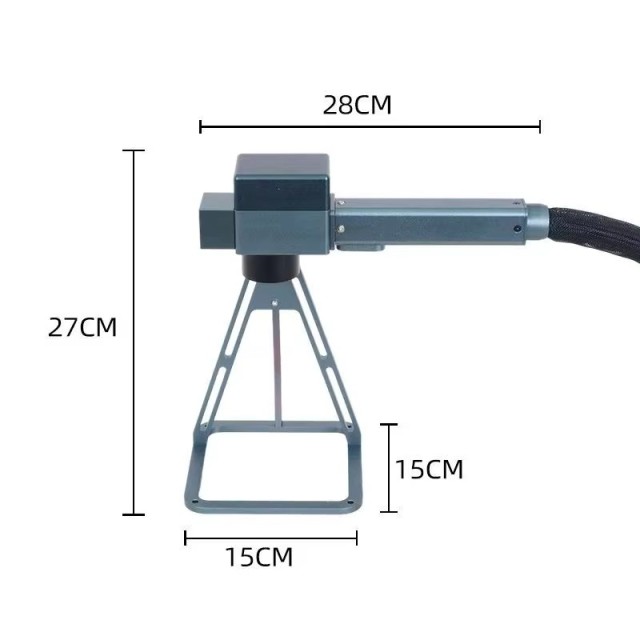

    It is used in narrow, outdoor and special space operations, especially for marking objects that are inconvenient to move. Just align the handle with the workpiece and press the switch to easily achieve marking.The handle weighs 1kg, which is very convenient for both men and women to operate.

    6. Maintenance-free.
    Long-term work, the dust of laser marking will contaminate the lens, usually just wipe the lens.

Product Series

LSM20F/30F/50F

Laser Power

20w/30w/50w

Marking Area

100*100mm

Galvometer

high-precision two dimension scanning

Wavelength

1064nm

Focal Lens

130mm

Marking Speed

＜7000mm/s

Control System

Integrated Motherboard,8-inch Screen

Operation System

Linux System

Marking Type

Lattice and vector

Line Width

0.03mm

Repeated Positioning Accuracy

0.01mm

Positioning Mode

Red Light Positioning

Character Line Number

Content Related

Character Marking Speed

Content Related

Typeface

English、Chinese Standard Font Library

File Format

BMP、DXF、HPGL、JPEG、PLT

Power

110V/220v

Overall Power Consumption

145-450W

Running Temperature

0-40C
