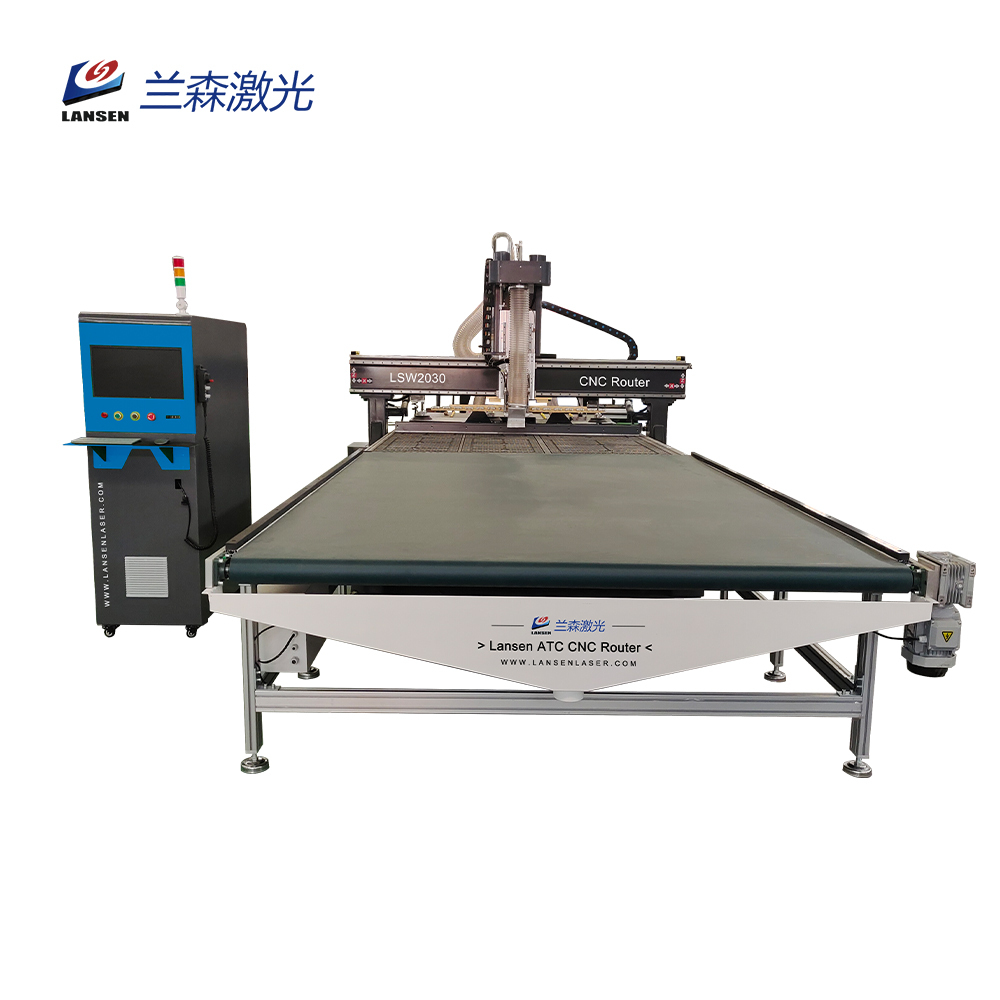

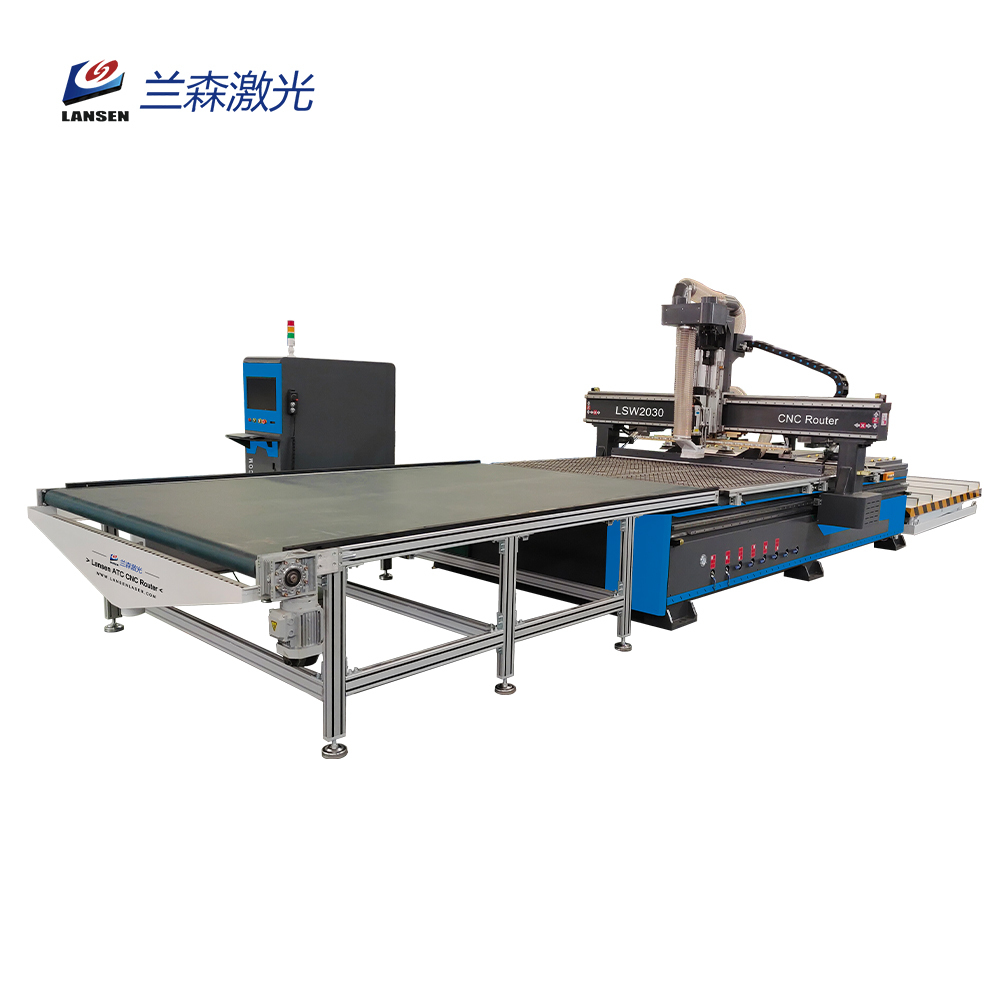

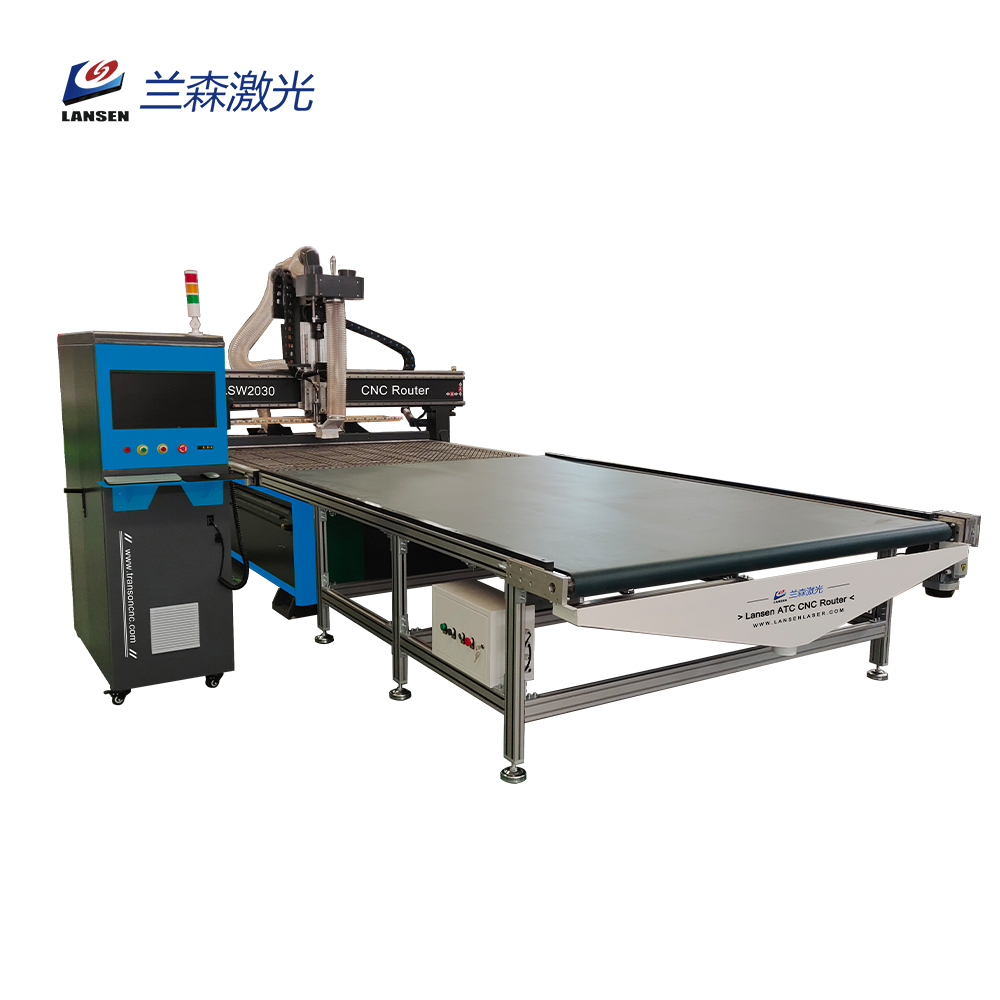

LSW-ATC 2030 CNC ROUTER Automatic feed woodworking machine

The purpose of the auto loader is to get more productivity out of the CNC with less people. One person can operate the machine, because all the materials handled automatically and it really makes it a much simpler job for the operator.

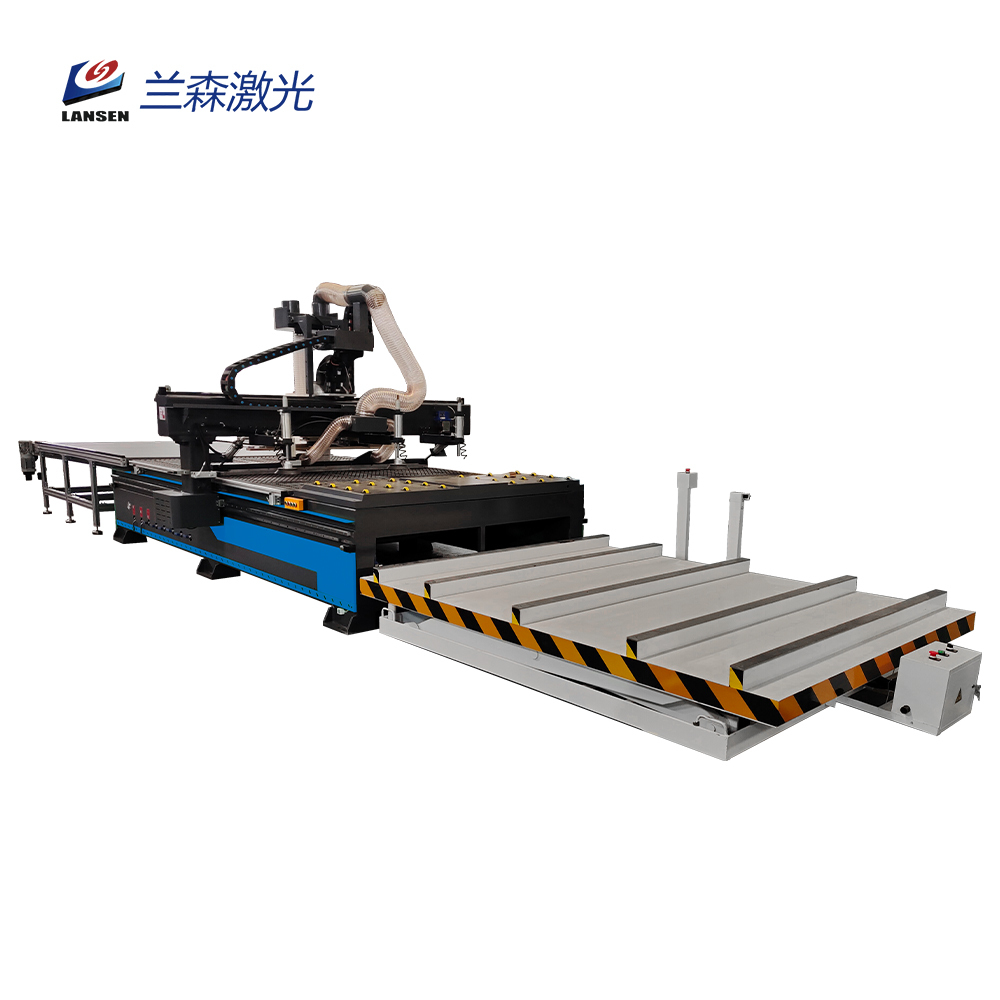

Nesting Auto loading and unloding CNC router machine is a Wooden Furniture production line, including loading equipment, Nesting CNC Router with auto tool changer, unloading equipment. It finish automatic the whole process of MDF wood prepare, feeding, fixing, cutting, carving and unloading.

Description
Parameter

FEATURE
1) An entry-level all-rounder, choose your tool changer, linear or carousel type, extraordinary solution with competitive price.

2) Using top class components, e.g. 9.0kw ATC spindle, Japan Yaskawa servo motor driving system, Japan and France gear reducer, Germany helical rack, Schneider low voltage electrical components, Delta inverter—guaranteeing optimum performance and minimum ailure.

3) Versatile functions: automatic loading, routing, vertical drilling, cutting, side-milling, edge chamfering, automatic unloading etc.

4) T-slot vacuum table with great absorption strength—absorb on multi-zone or clamp with pop-up positioning pin, it is your call.

5) Boring unit aggregate optional.

6) CV software is optional for 3d model designing, BOM (bill of material including cut list, parts sheet, hardware and accessories list and explode view), cnc manufacturing (auto nesting and G-code program output

Machinestructure	WeldedSteel square tube
TravelingPositioning Accuracy	±0.03/300mm
Repositioning Accuracy	±0.03mm
Table Surface	Vacuum table
X,YStructure	Rackand Pinion Drive,Hiwin Rail Linear Bearings
7Structure	Hiwin Rail Linear Bearings and Ball Screw
Max.Power Consumption (Without spindle)	11KW
Max.Rapid Travel Rate	33000mm/min
Max.Working Speed	2500mm/min
Spindle head	9.0kw htaly HSD spindle,drill bank,atc magazine
Spindle Speed	0-24000RPM
Drive Motors	Japan YASKAWA Servo motor
Working Voltage	AC380V/50/60Hz,3PH
Command Language	G code
Operating System	Taiwan Syntec controller
Computer Interface	USB
Collet	ER32
SoftwareCompatibility	Type3/Ucancam/Artcam
Running Environment Temperature	0*C~45°℃
Relative humidity	30%~75%

This kinds of CNC wood router is also called Cnc Wood Carving Machine or CNC Wood Engraving Machine in the Wood Cnc Machine industry. It is a basic woodworking engraving cutting machine with strong welding steel tube frame and a T-slot vacuum table.

This woodworking Machine is considered an entry-level machine in the woodworking machinery industry and favored by users at home and abroad. The wood router mainly performs some plane processing on the board. If you are just doing flat machining on some plates, this CNC wood router is definitely your ideal choice.

Spindle power	3KW/4.5KW/6KW/9KW
Rail type	linear rails
Control system	DSP/Syntec/Ncstudio
Drive type	Stepper or Servo motor
Transmit	XY gear rack and Z ballscrew
Table type	T slot clamping
Working precision	0.05mm
Power	AC220V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code	HPGL, G code

Basic configuration
1. DMA860HDriver+86BYGH450B Stepper motor
2. XY axis gear wheel transmit, Z axis 2505 ballscrew transmit
3. HGH20 Linear guide rail, Manual oil system
4. NC studio 3D Control card、Ncstudio V5 Controller
5. 3.2kwSpindle、JATInverter
6. 8mm Steel gantry、Weld machine body、1.2mm Aluminum T slot table
7. 200mm Feeding height、200mm in Z axis
8. Separately control box
