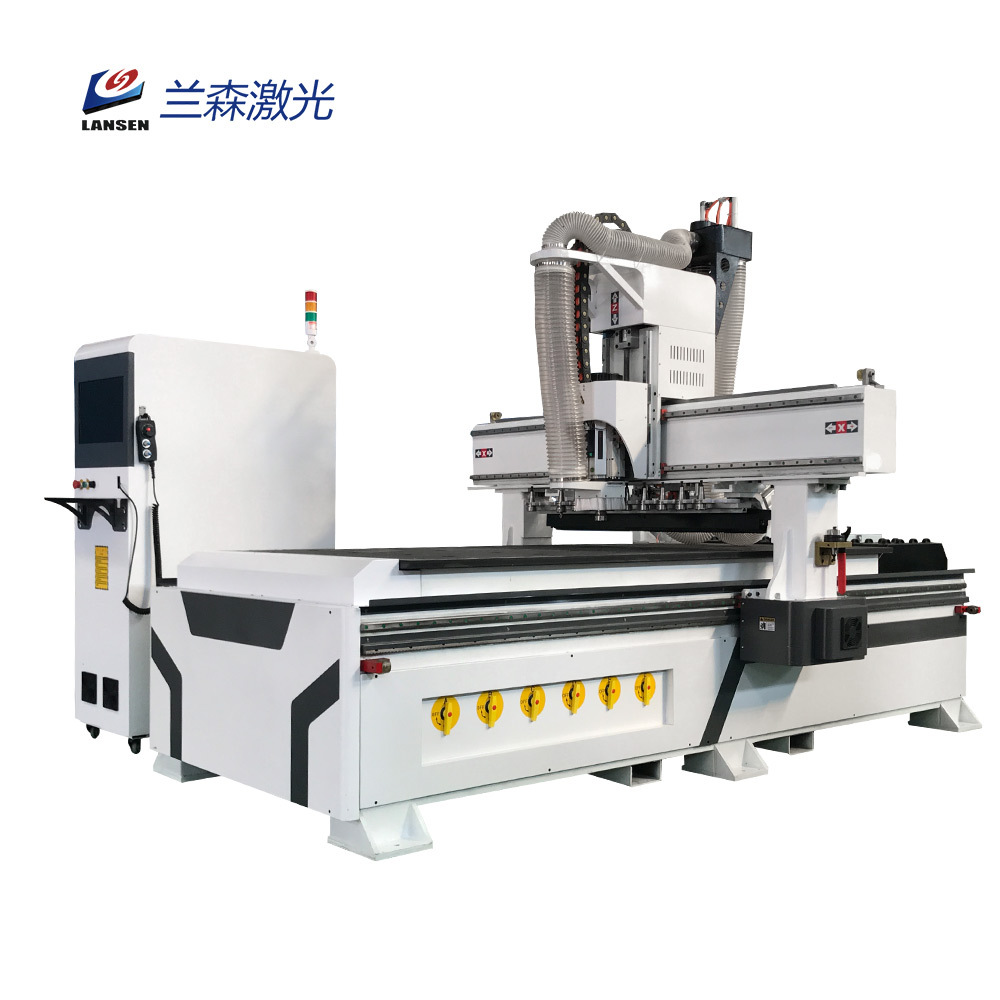

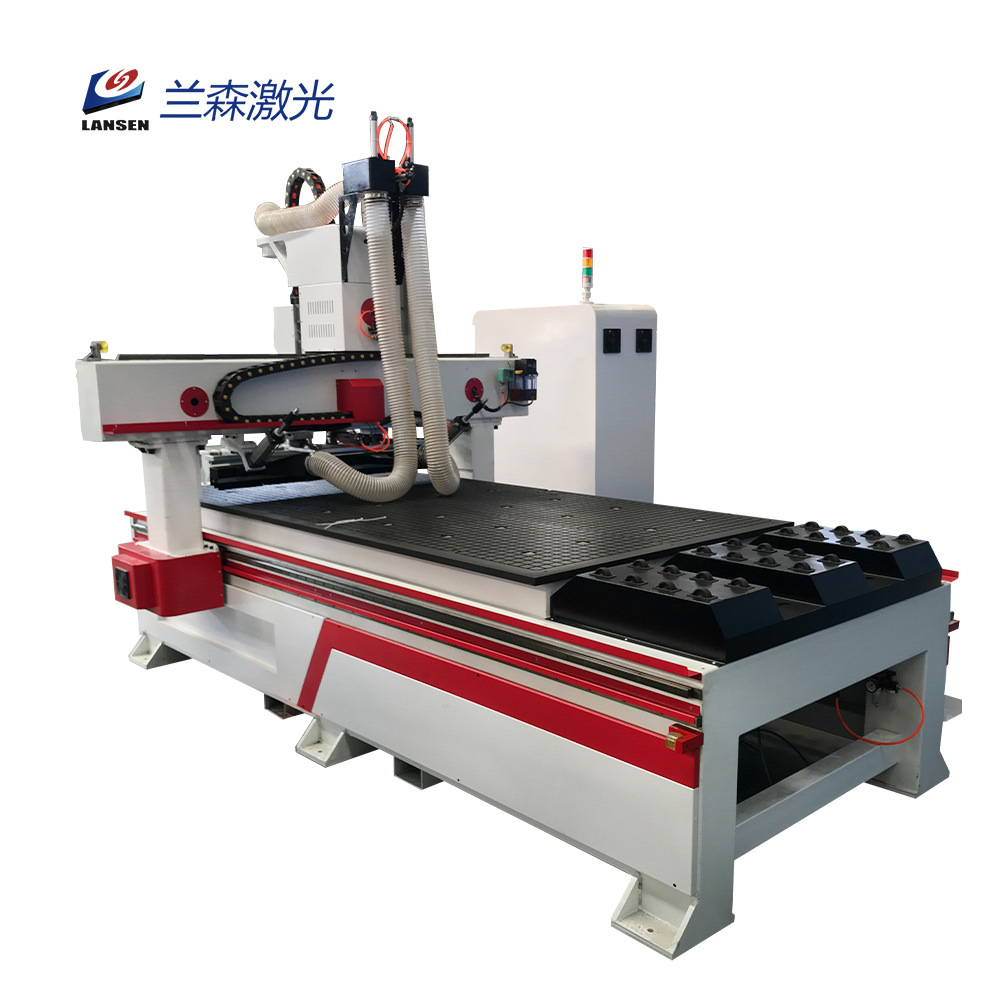

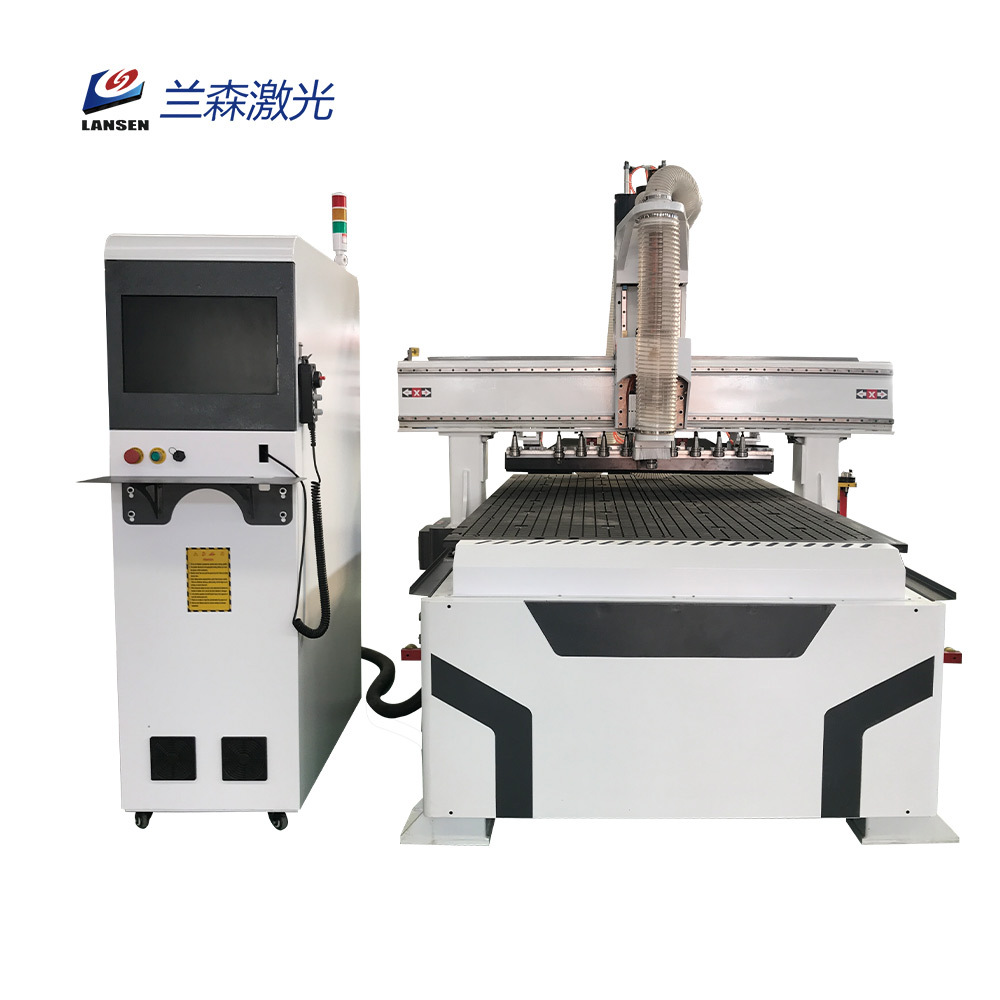

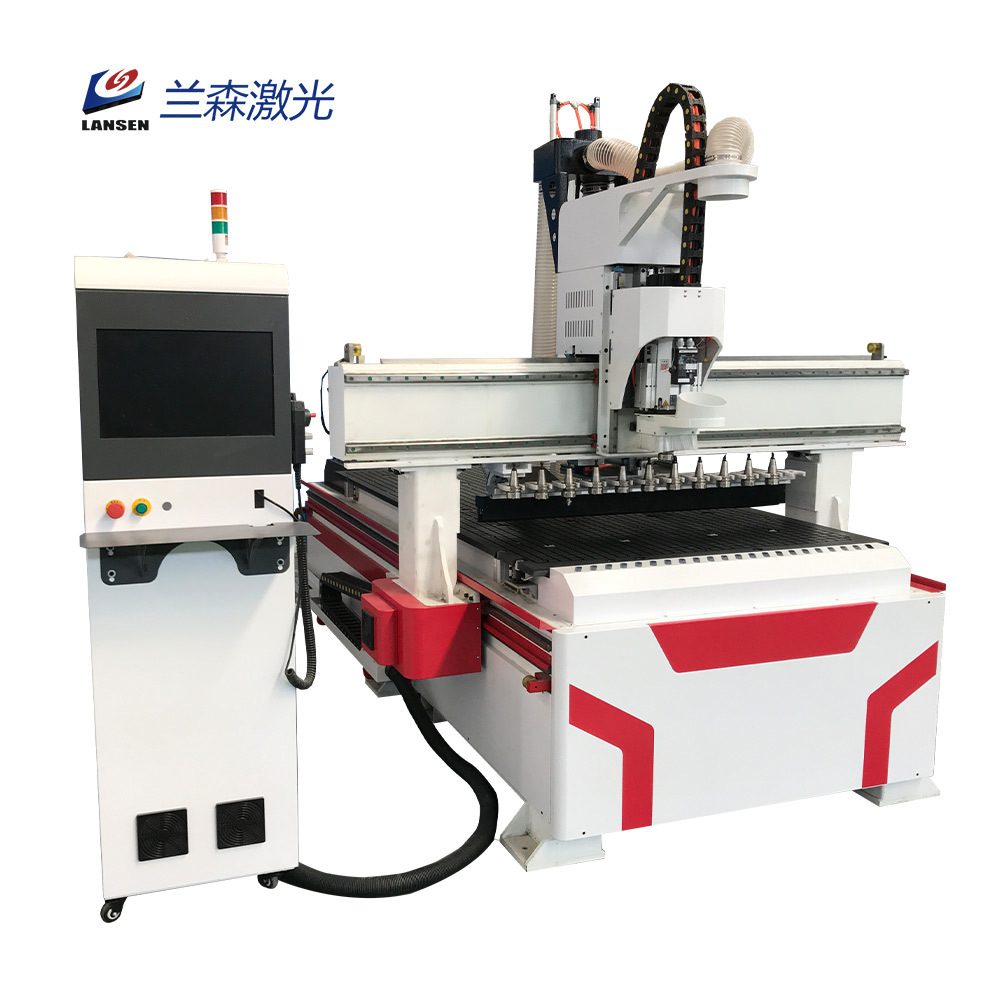

Name: LSW1325 ATC Wood Cnc router engraving cutting machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

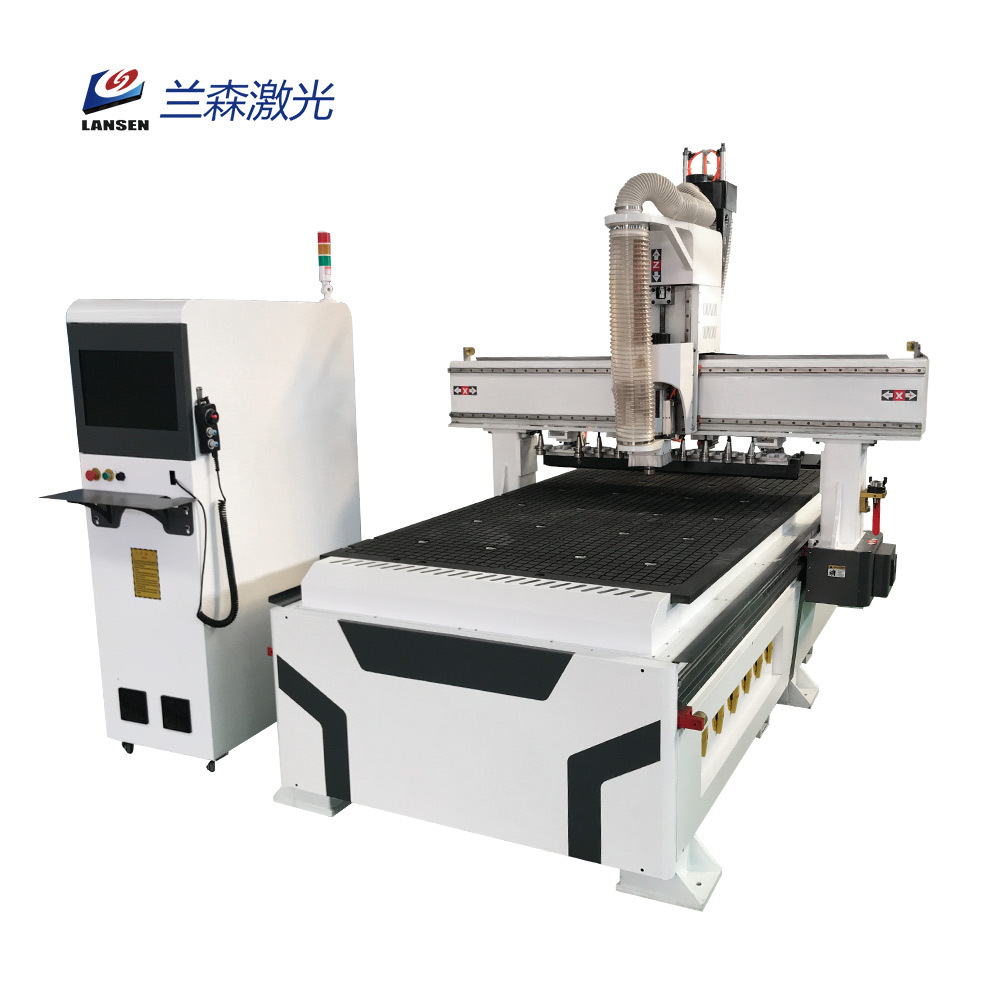

LSW1325 ATC Wood Cnc router engraving cutting machine

To meet the demands of high speed and accuracy Woodworking requirements, Lansen Woodworking CNC Router designed with Rack and pinion transmit way, Y axis adopts dual motors driving, and machine with linear guide rail, also Cast Steel machine bed help the stability. It help the clients with faster speed, high accuravy and long time continuing work

Description
Parameter

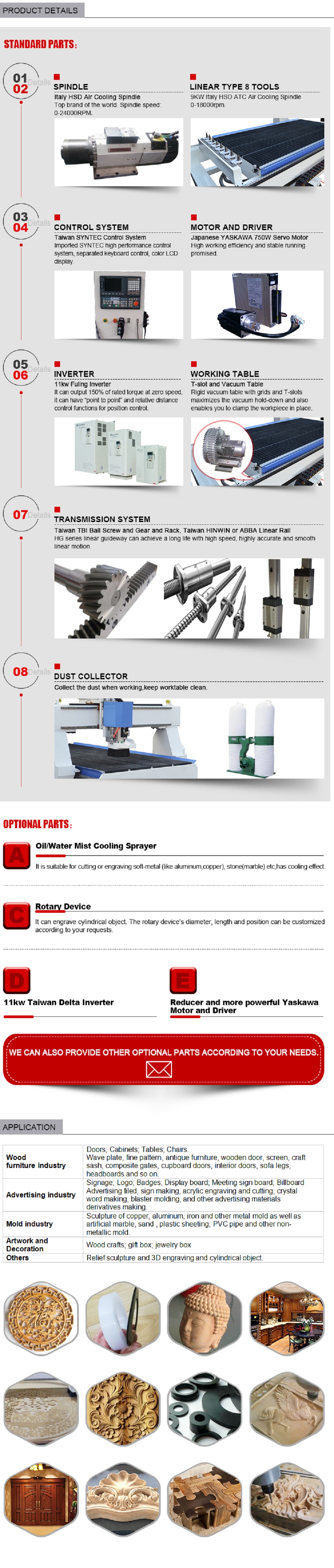

Standard Features:
1. Machine adopts imported square guide rail. Square guide rail ensure higher precision
2. Y-axis adopts advanced dual-axis gear transmission and dual-motor driver system which ensures speed, strength, and accuracy of automatic cutting.
3. High processing-speed, fast cutting speed, high efficiency, max speed is up to 35 meters / min.
4. Perfect performance. The professional human control system has advantages as continuing engraving when occurring break point or off power. Processing time can be forecast. It has back to the origin and automatic correction function.
5. It adopts high-speed water cooling, variable frequency motor with constant power, strong cutting power and high speed range, torque, and high precision.
6. Large compatibility. CAD/CAM designing software like Type3/ArtCAM/Castmate/Ucancam and so on.
7. Adopting advanced three-dimensional curves of the Budget Act a smooth line to ensure that the curve of the speed and accuracy of operation
8. Convenient control: it uses unique intelligence budget principle, to achieve high-speed processing, more perfect curve to improve the processing efficiency. Machine adopts DSP control system, USB interface, machine can be used without computer.
9.Optional fix ways: Vacuum adsorption and T-slot aluminum table are provided for optional. You can choose according to your work.
10. All in one function control box. The separately control box composite all the functions, convenient to operate.
11. Automatic oiling system. It lubricate the linear rail automaticlly, maintainace of the guide rail more easilly

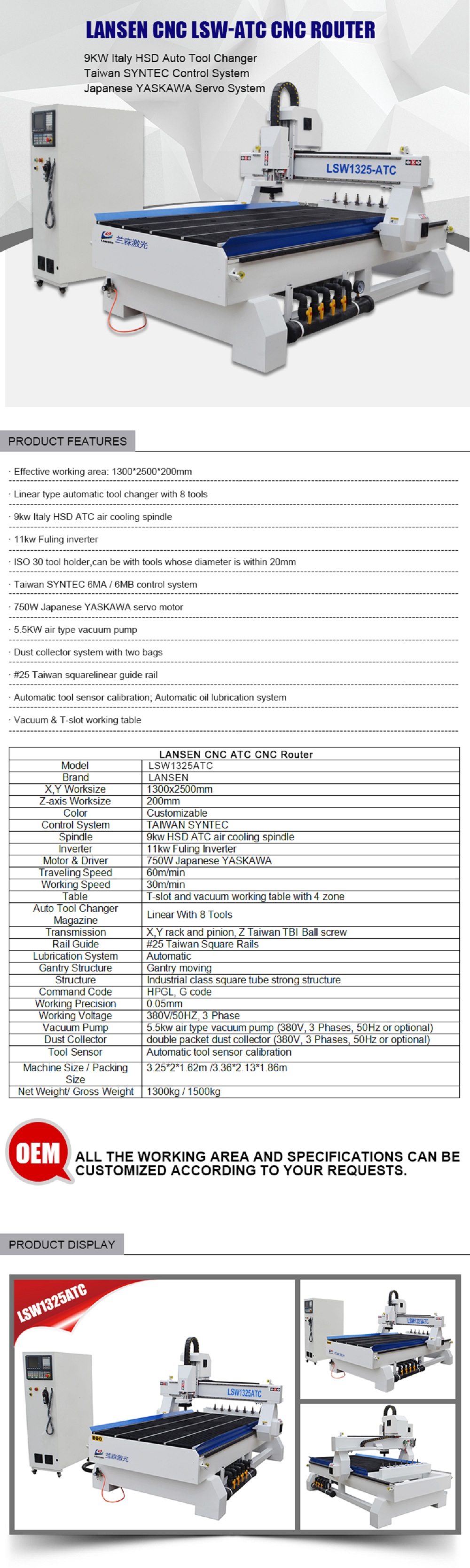

Model	LSW1325
XYZ axis travel distance	13002500200mm
Feeding height	200mm
Spindle power	3KW/4.5KW/6KW/9KW
Rail type	linear rails
Control system	DSP/Syntec/Ncstudio
Drive type	Stepper or Servo motor
Transmit	XY gear rack and Z ballscrew
Table type	T slot clamping
Working precision	0.05mm
Power	AC220V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code	HPGL, G code

This kinds of CNC wood router is also called Cnc Wood Carving Machine or CNC Wood Engraving Machine in the Wood Cnc Machine industry. It is a basic woodworking engraving cutting machine with strong welding steel tube frame and a T-slot vacuum table.

This woodworking Machine is considered an entry-level machine in the woodworking machinery industry and favored by users at home and abroad. The wood router mainly performs some plane processing on the board. If you are just doing flat machining on some plates, this CNC wood router is definitely your ideal choice.

Spindle power	3KW/4.5KW/6KW/9KW
Rail type	linear rails
Control system	DSP/Syntec/Ncstudio
Drive type	Stepper or Servo motor
Transmit	XY gear rack and Z ballscrew
Table type	T slot clamping
Working precision	0.05mm
Power	AC220V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command code	HPGL, G code

Basic configuration
1. DMA860HDriver+86BYGH450B Stepper motor
2. XY axis gear wheel transmit, Z axis 2505 ballscrew transmit
3. HGH20 Linear guide rail, Manual oil system
4. NC studio 3D Control card、Ncstudio V5 Controller
5. 3.2kwSpindle、JATInverter
6. 8mm Steel gantry、Weld machine body、1.2mm Aluminum T slot table
7. 200mm Feeding height、200mm in Z axis
8. Separately control box
