Closed Fiber Laser Marking machine can carve both on metal materials and some non-metallic materials.

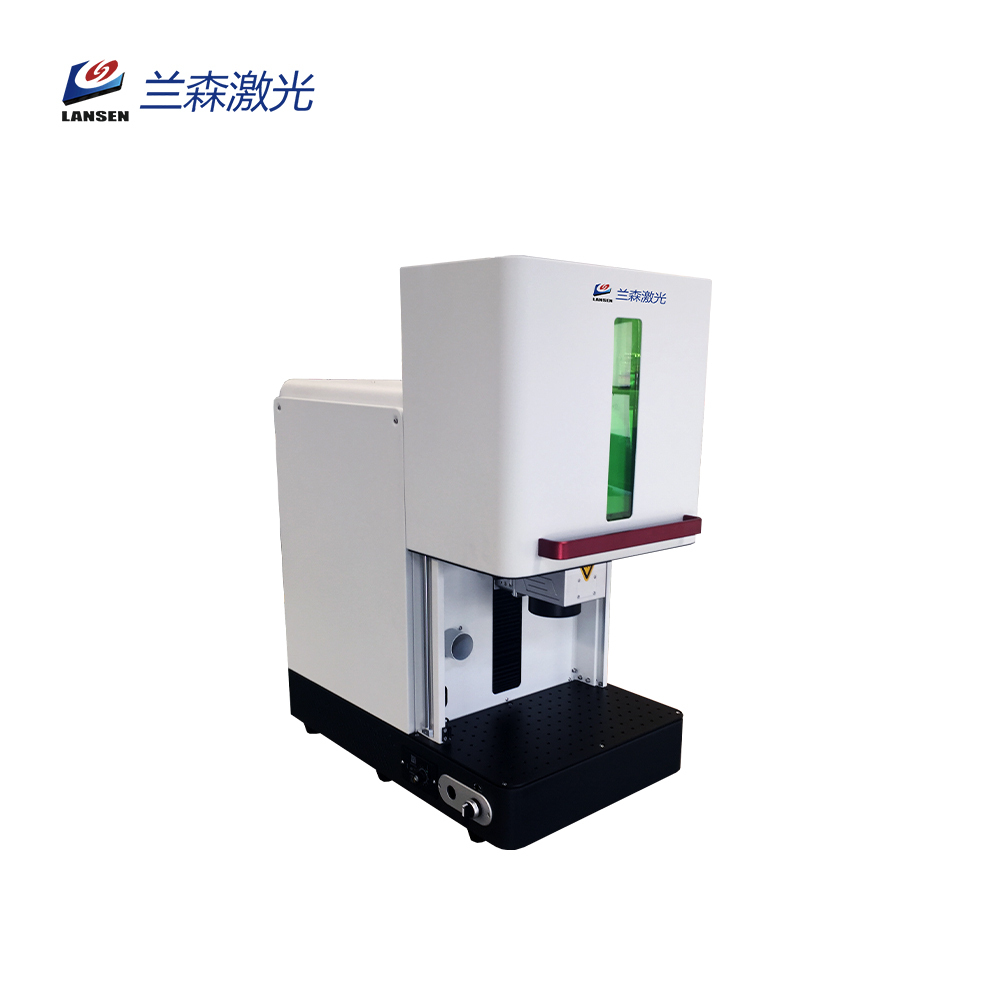

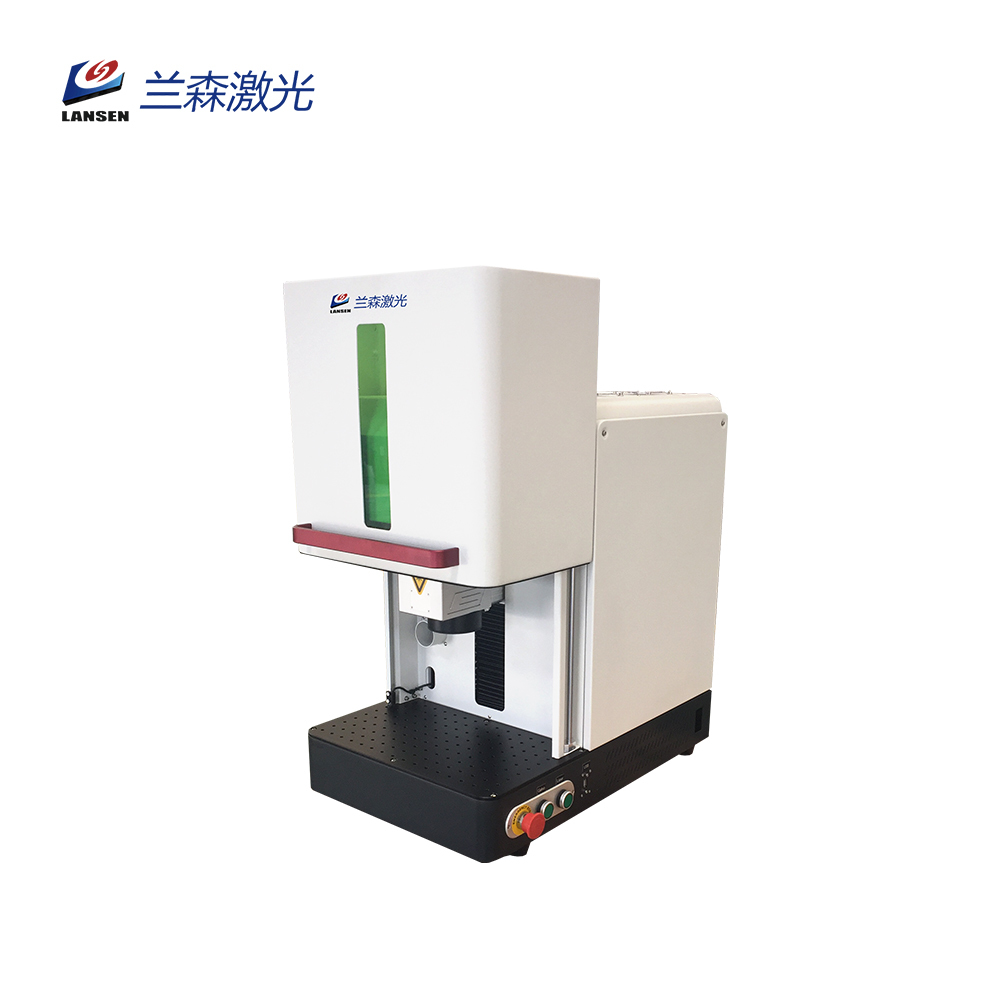

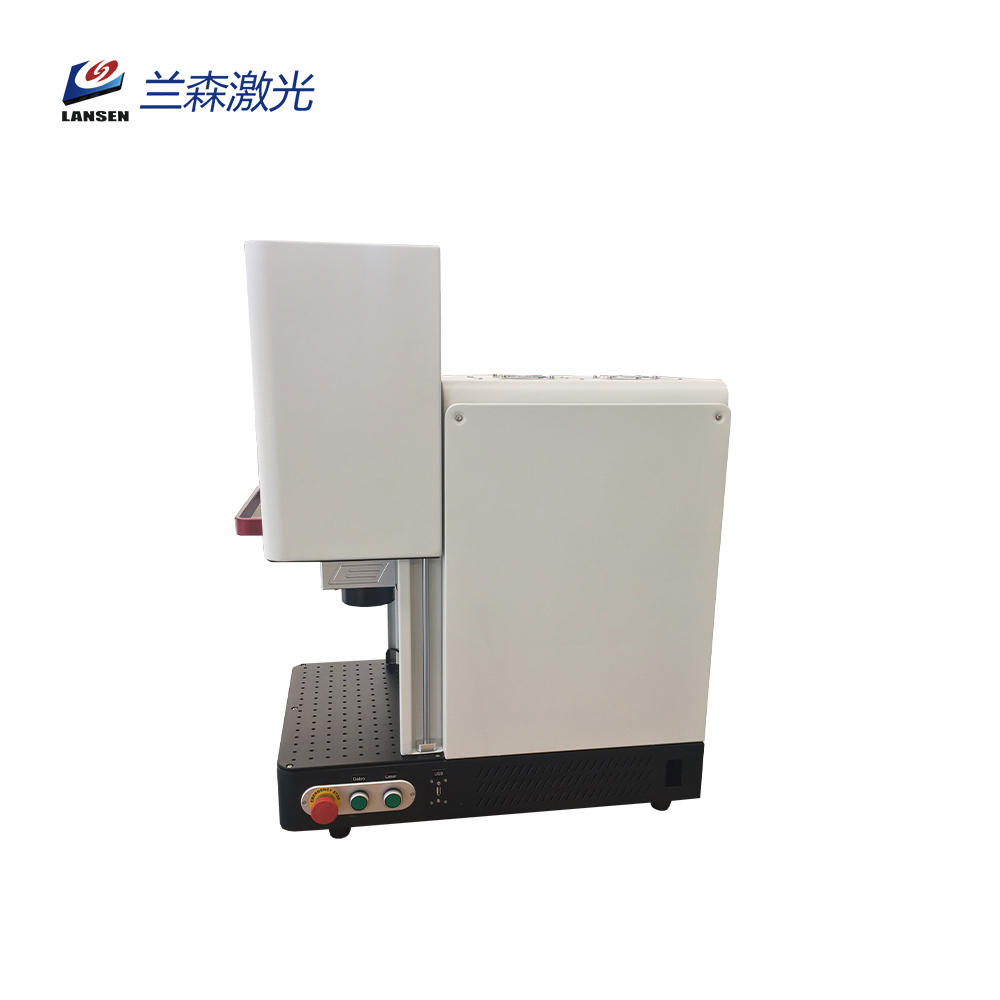

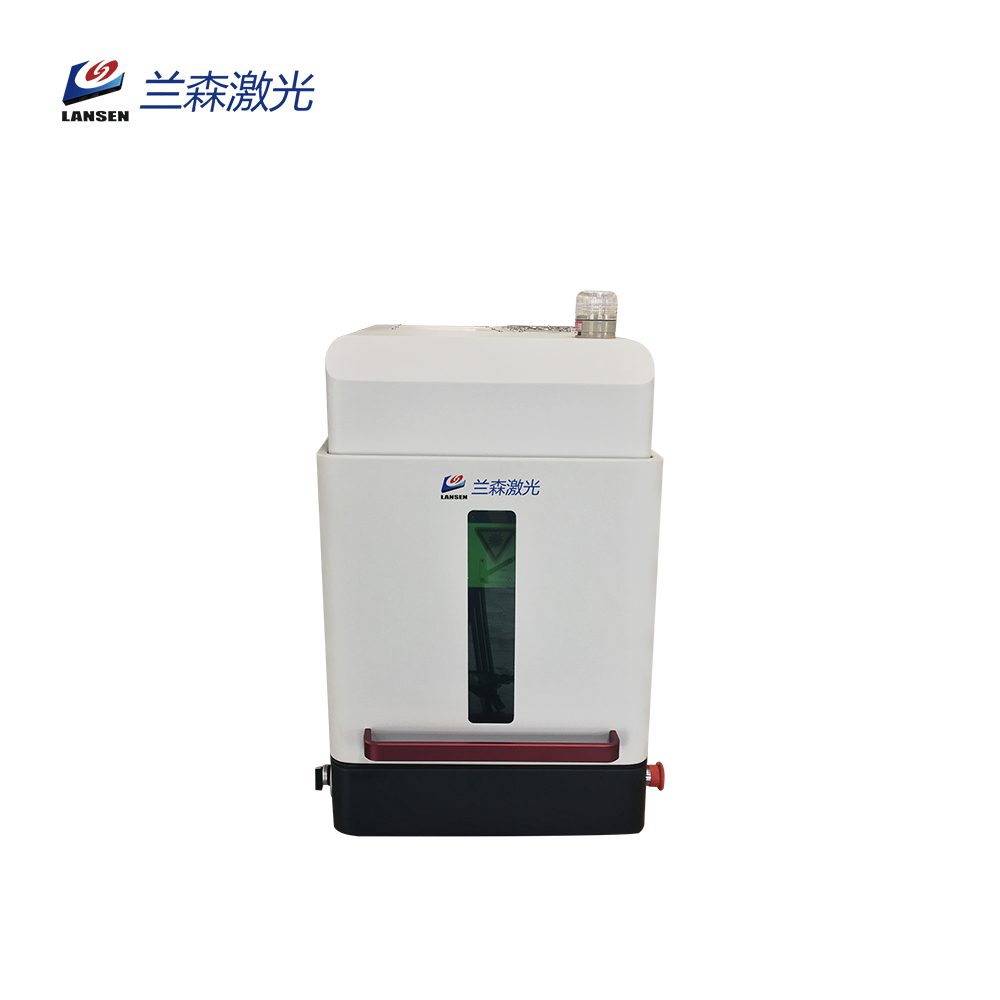

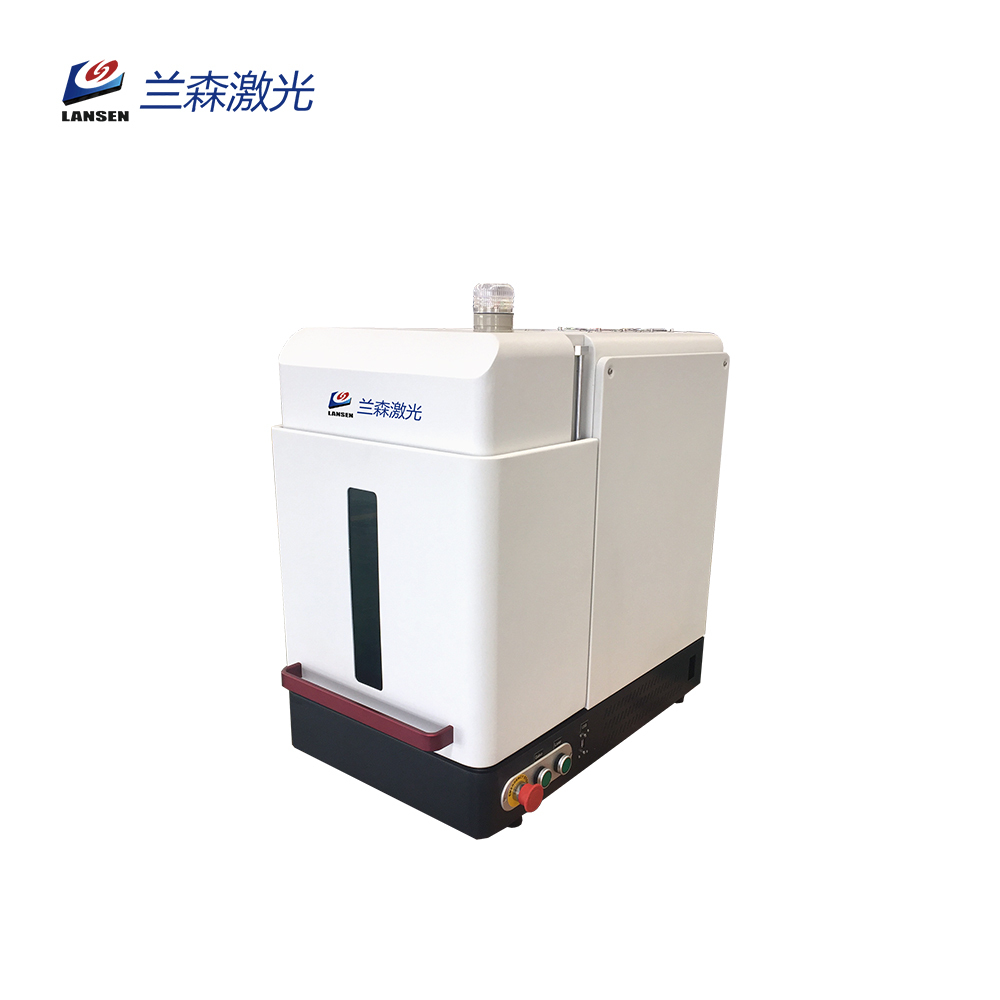

The Closed Fiber Laser Marking machine has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment. The effect of the metal etching machines is particularly outstanding.
Mini Fiber laser marking system adopts most advanced fiber laser source ,widely used to marking on the metal . five to ten years without any consumables and maintenance.
The Fiber laser marking machine is the best choice for the customers who have special requirements to the smallest and finest laser beam and character.
Mini Fiber Laser Marking machine has the advantages of small size, easy to move, and operation functions is sufficient. Also this machine can adds various optional parts to assist the special work requirements.
|
Laser Source |
Pulsed, High Energy Fiber Lasers |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
|
Output power adjustment range |
10%-100% |
|
Nominal average output power W |
20W / 30W/ 60W |
|
Central emission wavelength |
1060nm |
|
Long-term average power instability |
<5% |
|
Pulse width, (FWHM) |
100 ns |
|
Operating voltage |
220V |
|
Max. Power consumption |
0.5 kw |
|
Scanning Speed |
0-7000mm/s |
|
Marking Speed |
0-5000mm/s |
|
Marking size |
110mm×110mm/ 175mm*175mm/ 200mm*200mm |
|
Spot size |
≤ 40 micron (F-theta 160) |
|
Cooling unit |
Air cooled |
|
Pilot laser |
650nm diode laser, visible red light for marking guide |
|
Continuous working time |
≥16h |
|
Humidity |
45～85% (no condensation) |
|
Operating temperature |
0~40℃ |
|
Control units |
EasyCad (English Version) |
Applications:
The metal etching machines are mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The laser etching equipment can etch copper, brass, stainless steel, aluminum, iron and many kinds of metals and hard plastics.
|
Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|
Optional |
Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
