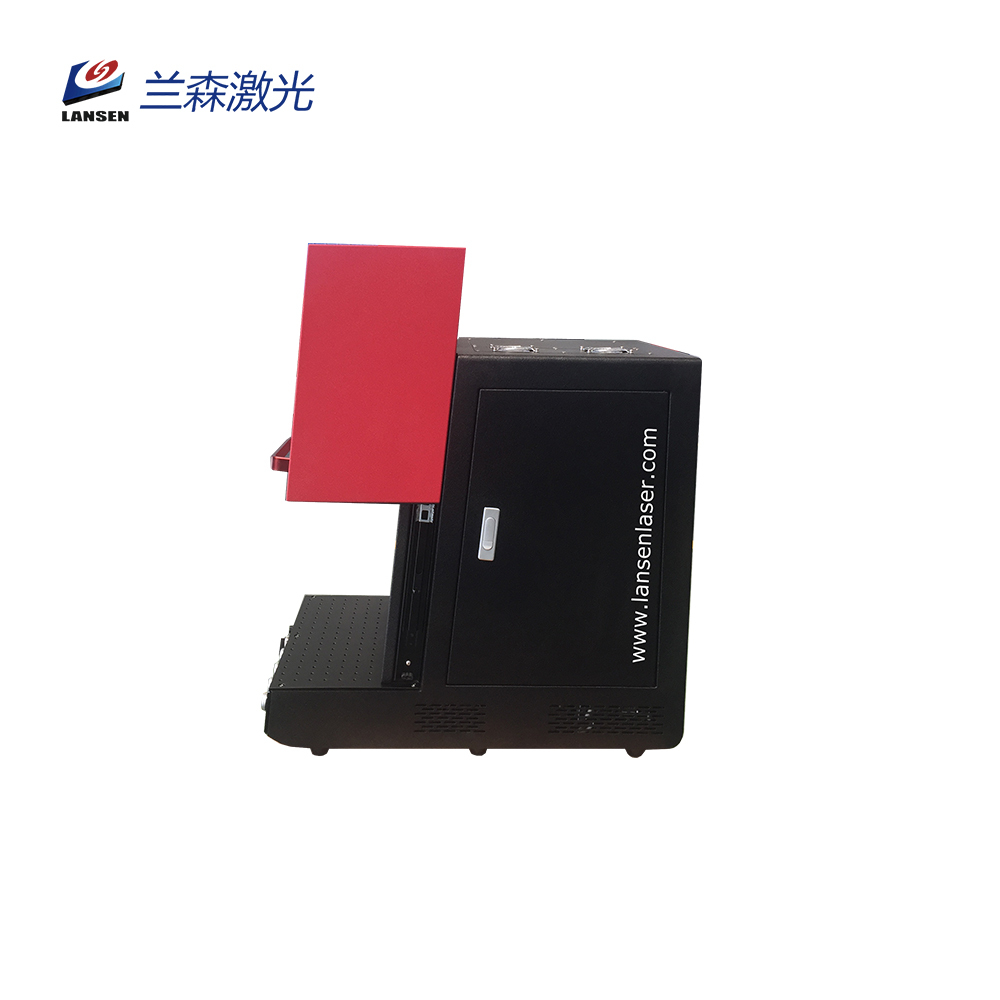

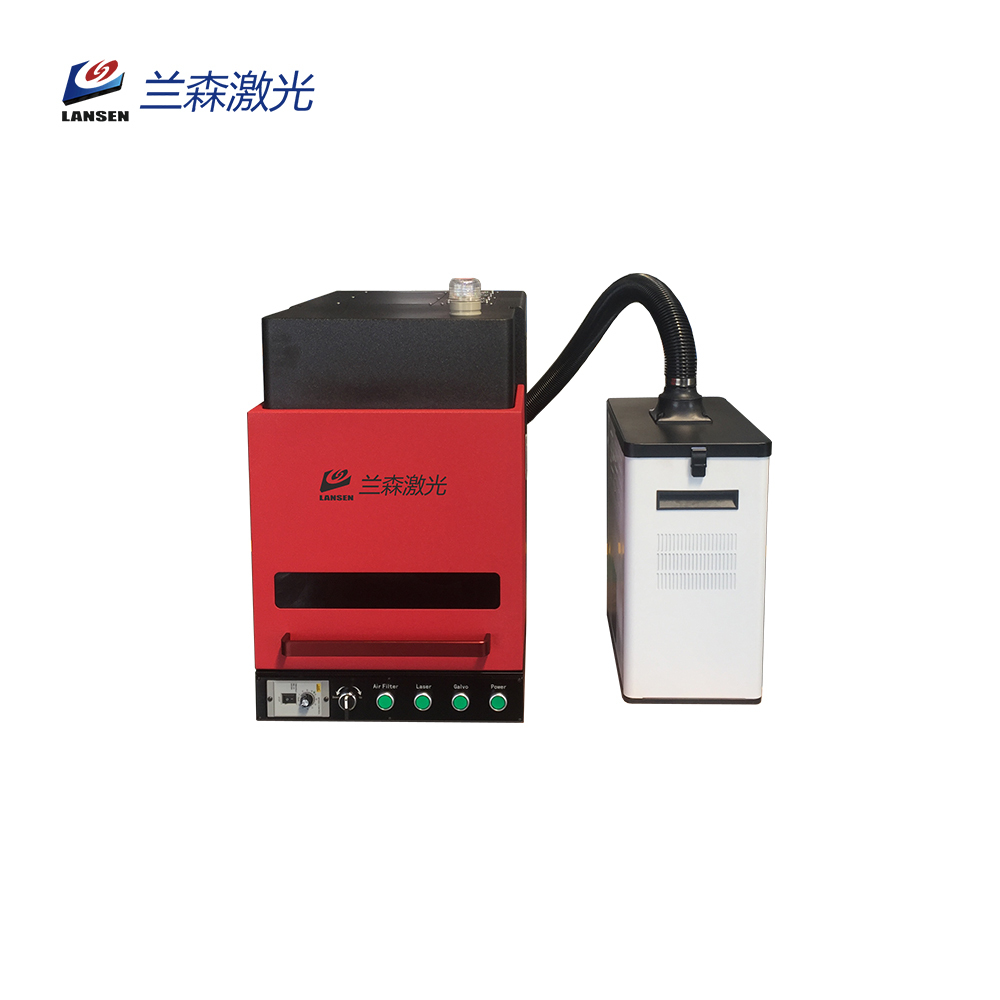

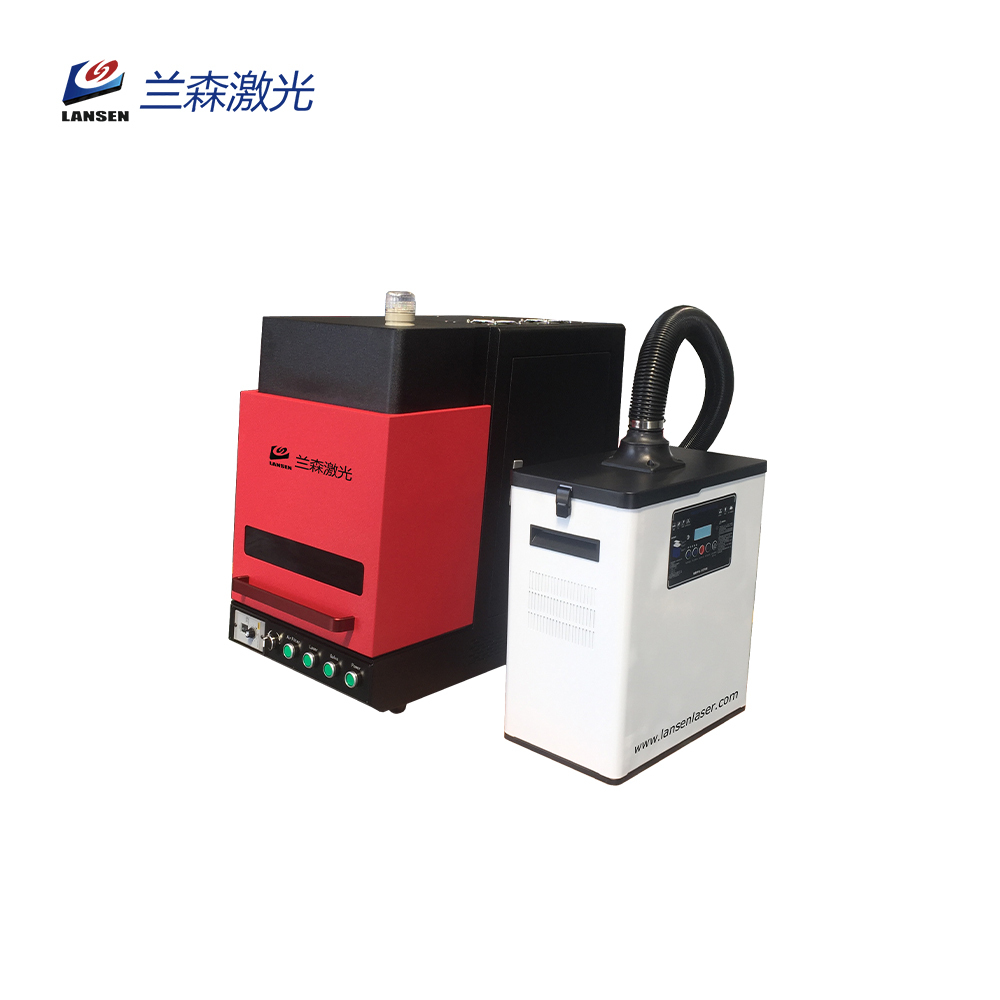

Name: Mini closed fiber laser marking machine with air filter
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

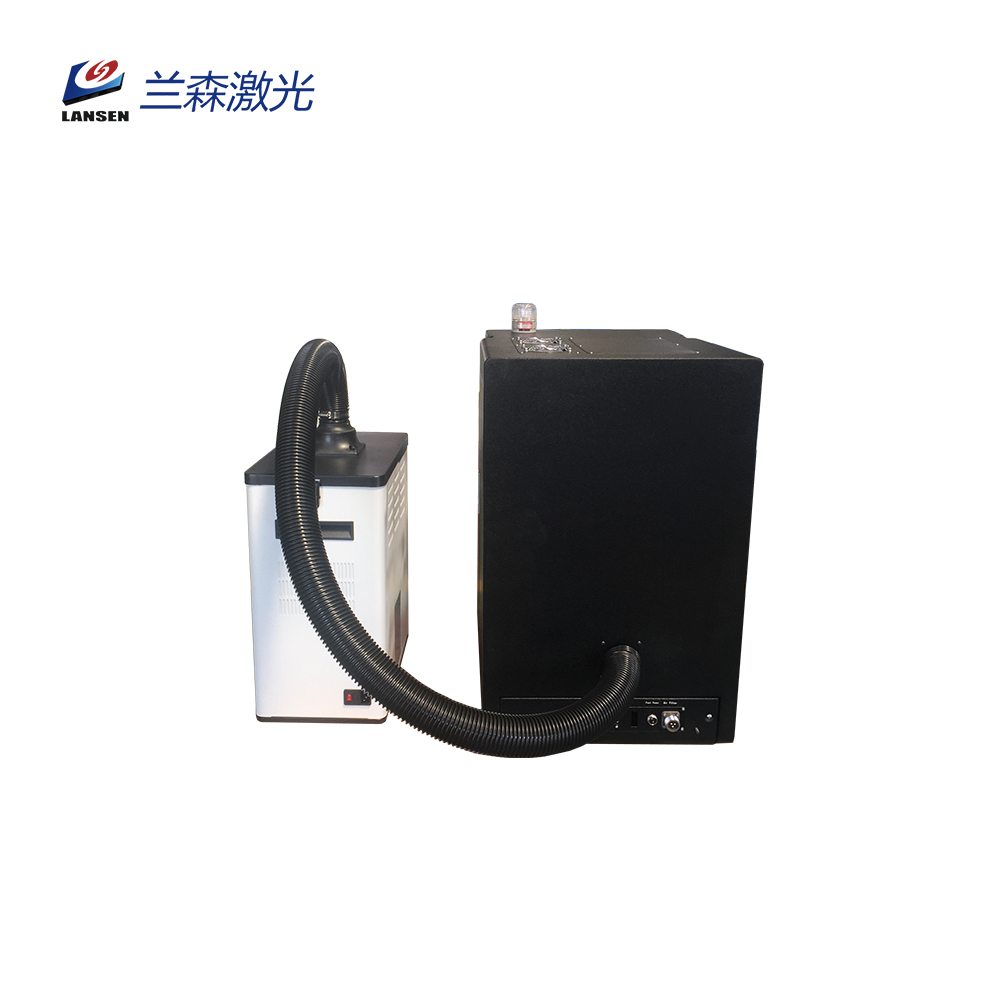

Mini closed fiber laser marking machine with air filter

Closed Fiber Laser Marking machine can carve both on metal materials and some non-metallic materials.
The Closed Fiber Laser Marking machine has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment. The effect of the metal etching machines is particularly outstanding.

Description
Parameter

Features:
1, Enclosed model no harm to your body, small window seat in the front no harm to your eye.

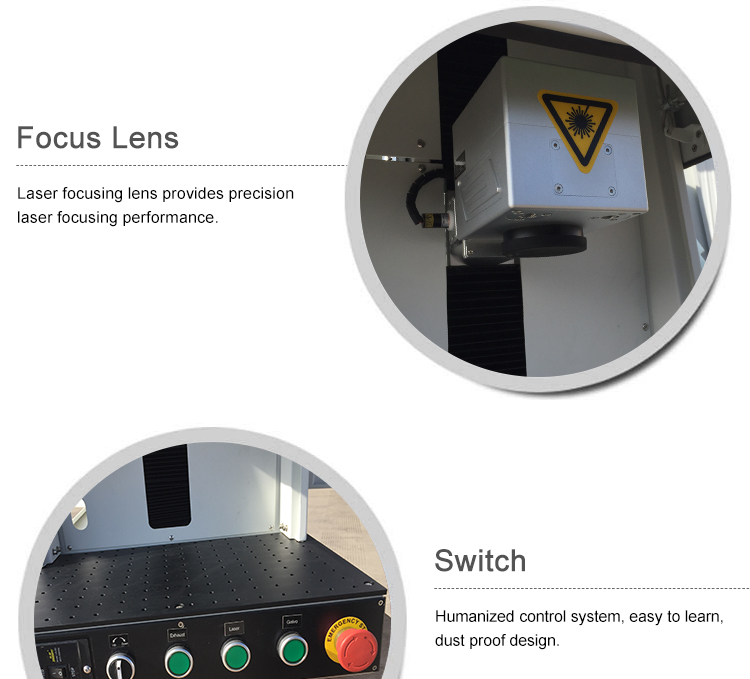

2, With button control auto focus function, easy operate.
3, Optional air filter, no smoke come out, suit work in any public area like hall, shopping center,etc.
4, With door open protection, if door open, software will warn and won't mark, only when door closed can it mark.

Laser type	Fiber Laser
Laser power	Raycus 20W/30W(IPG,JPT,Max optional)
Beam quality	M2<1.5
Laser wavelength	1064±1 nm
Power adjustment range	10~100%
Outputfiber length	1~2m
Frequency of pulse	20~80KHz
Power supply	220V/60Hz/8A(110V/60Hz/15A can choose
Coolingsystem	Air Cooling
Graphic formatsupported	BMPJPG,JPEG,GIF,TGA,PNG,TIF,TIFF
	Al,PLT,DXFDST,SVG,JPCNC,G,BOT,GBR
Workingarea	110mm110 mm(Standard canchoose 5050150150175175200*200(mm) If use rotary device,themax support 150x150mm field lens.
Markingdepth	<1mm
Markingspeed	<5000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300-600W
Operation temperature	0~40℃
Operationsystem	Microsoft Windows system

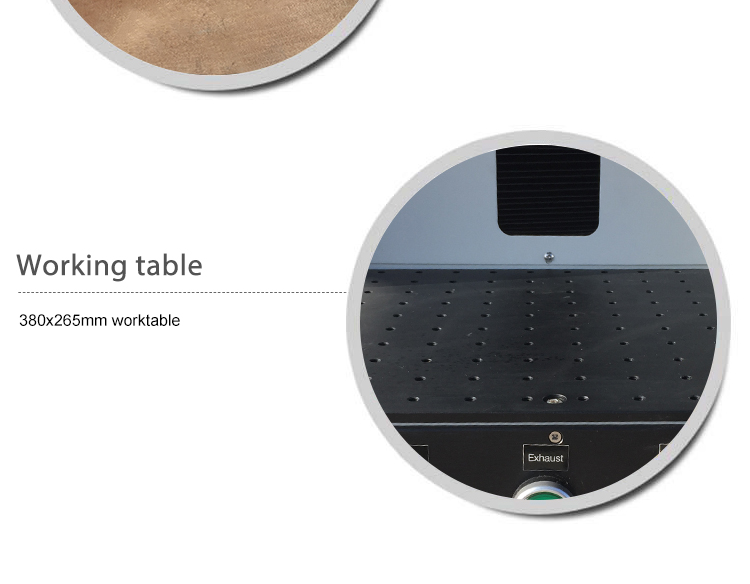

Worktable size	380X265mm
Machine size	840mm460mm820mm
Grosse weight	92kg

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source	RAYCUS/JPT M7
Beam quality	M2<1.8
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Frequency ofpulse	20~250KHz
Power supply	220V/50Hz(110V/60Hzcan choose)
Cooling system	Air Cooling
Marking content suppor	import vector files lke PLT
	Add Text,series number,etc.inSHX,TTFand CSF
	Add Barcode,QR code
Working area	110110mm(Standard) 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(0ption al)
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend onfiber laser power)
Operation temperature	-15~+60*C
Operating environment	Clean and free of dust
Warranty	18 Months forlaser source,2 years for machine
Optional	Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding system
Model	LSD DiskLaser Marking Machine
Type	Standby
Computer	ncludes PC
Mode of operation	Pulsed
Polarization	random
